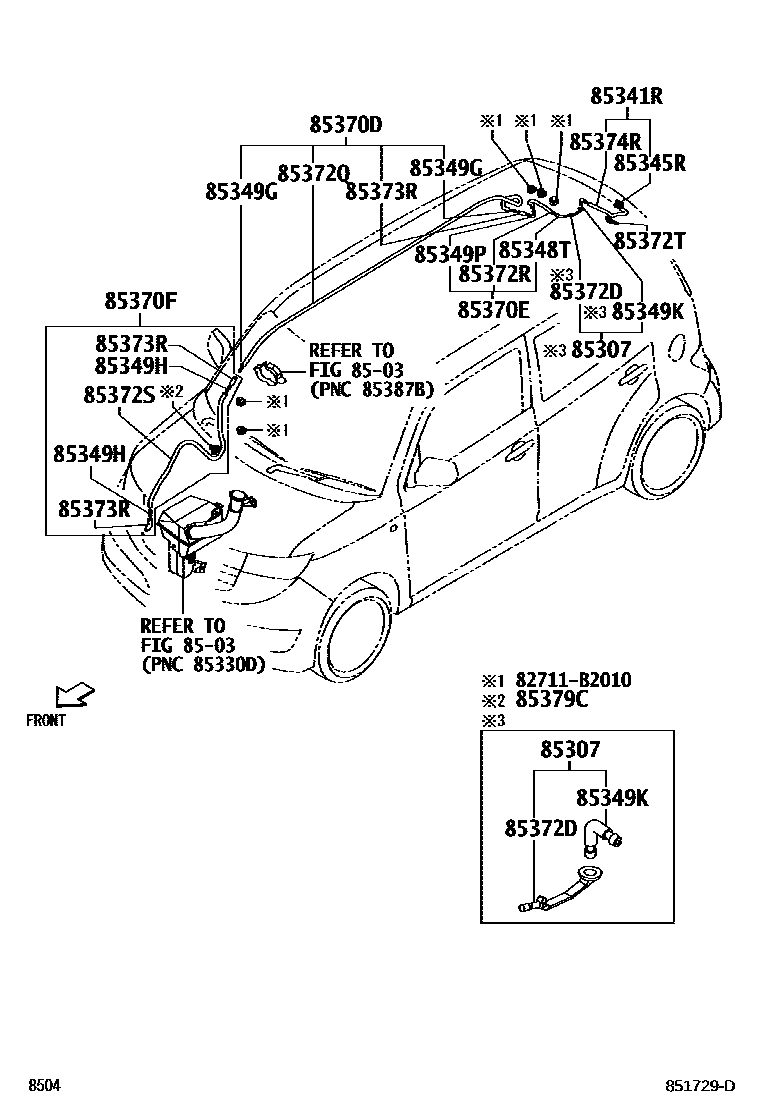

REAR WASHER
8503WINDSHIELD WASHER
85307GROMMET SUB-ASSY, WASHER
85341RNOZZLE ASSY, WASHER
85345RNOZZLE, REAR WASHER
85348TJOINT, REAR WASHER HOSE, NO.2
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85370DHOSE ASSY, REAR WASHER, NO.1
85370EHOSE ASSY, REAR WASHER, NO.2
85370FHOSE ASSY, REAR WASHER, NO.3
85372DGROMMET, REAR WASHER HOSE
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379CGROMMET, REAR WASHER HOSE NO.1
82711B2010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-B2010
21 parts on this diagram · 1 diagram in section
