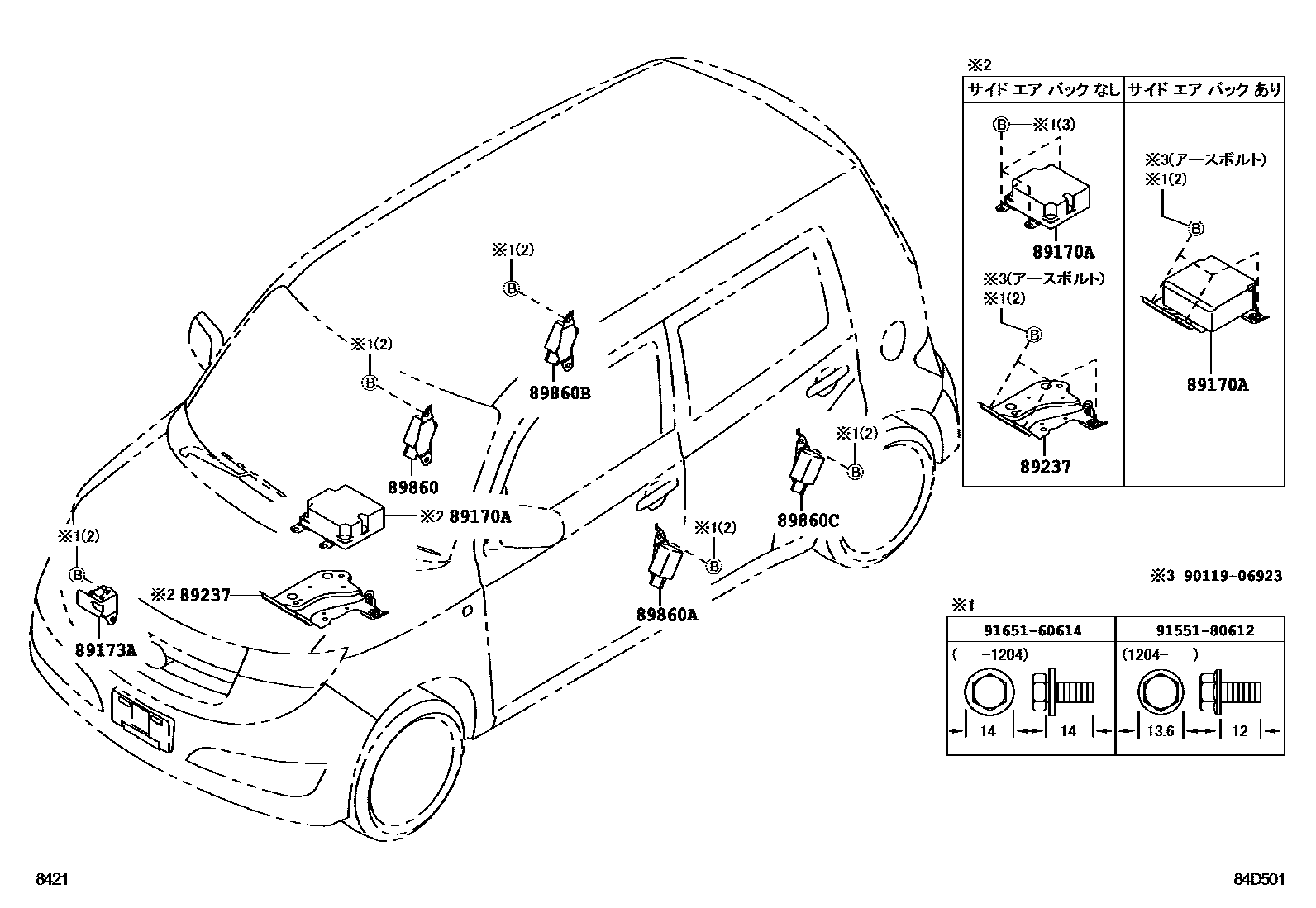

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-B1120supersedes 89170-B1150iQNC2#200601-200809

89173ASENSOR, AIRBAG, FRONT RH

main89173-B1040iQNC2#200601-200809

89237BRACKET, COMPUTER UNIT

main89237-B1010iQNC2#200601-200809

main89237-B1040iQNC20,21201604

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-B1030iQNC2#200601-200809

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-B1030iQNC2#200601-200809

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89860-B1040iQNC2#200601-200809

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89830-B1040iQNC2#200601-200809

9011906923

main90119-06923

9155180612

main91551-80612

9165160614

main91651-60614

10 parts on this diagram · 1 diagram in section
