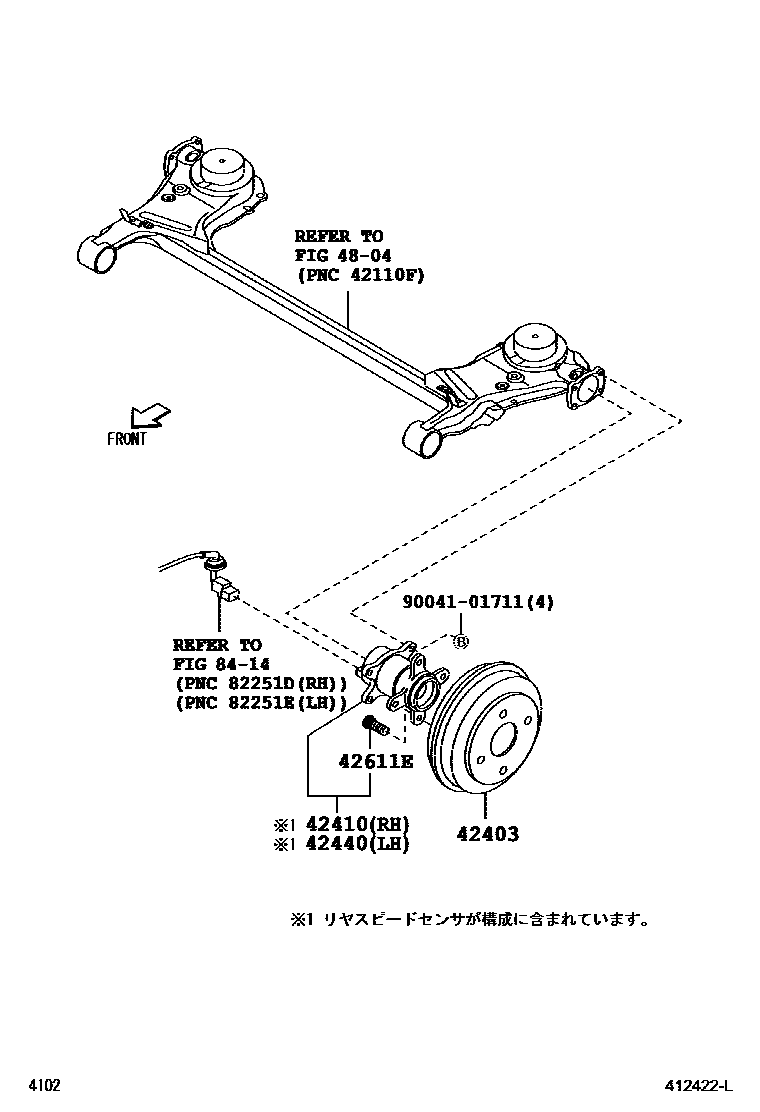

REAR AXLE SHAFT & HUB

0001 1 0002 1

42403DRUM SUB-ASSY, REAR BRAKE

main42431-97502×2iQNC25200601-200809

main42431-B1020×2iQNC20,21200601-200809

main42431-B1021×2iQNC20,21201203

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-B1030iQNC20,21200809

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-B1030iQNC20,21200809

42611EBOLT, HUB (FOR REAR AXLE)

main90049-12055×8iQNC25200601-200809

main90049-12062×8iQNC20,21200601-200809

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8414ABS & VSC

→ Go to FIG 84-14

9004101711

main90041-01711

7 parts on this diagram · 2 diagrams in section
