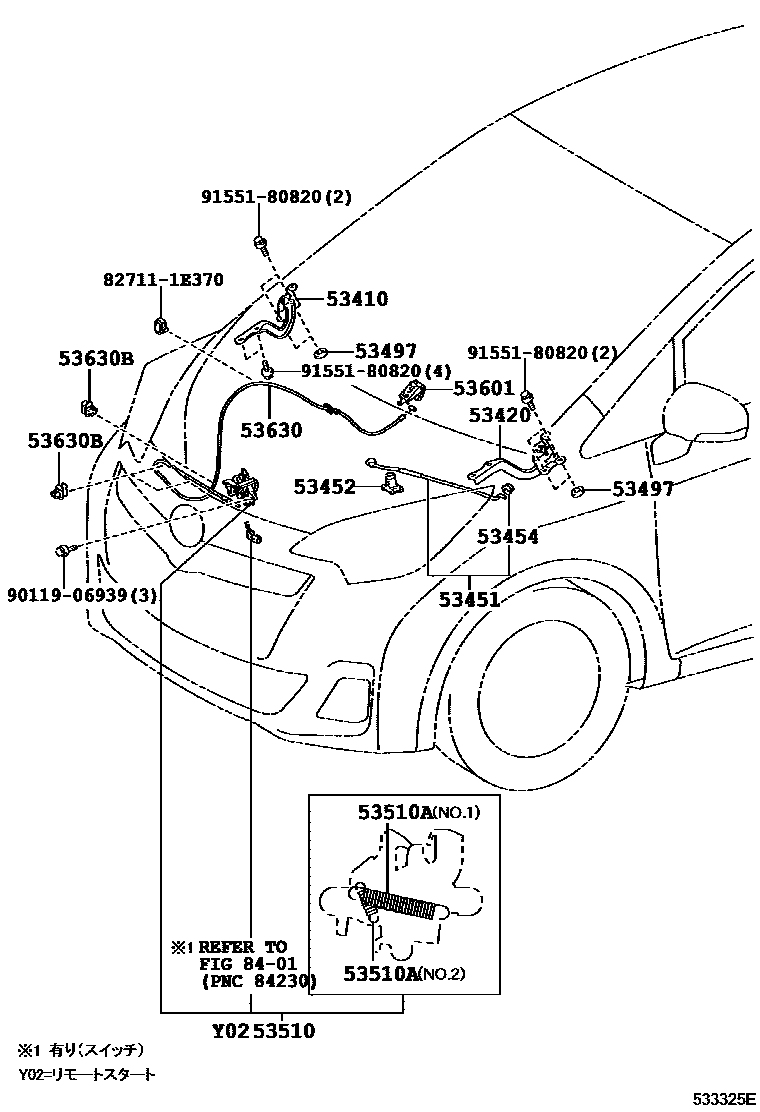

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53497PAD, HOOD HINGE, NO.1
53510ASPRING, TENSION(FOR HOOD LOCK)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-52010-C0iNCP120..LEPIC,X;NCP125,NSP120..LEPIC; NCP120..S; NCP125,NSP120..X; NSP122;NCP12#,NSP120..G201011-201405
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
8401SWITCH & RELAY & COMPUTER
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E370
9011906939
main90119-06939
9155180820
main91551-80820
15 parts on this diagram · 1 diagram in section
