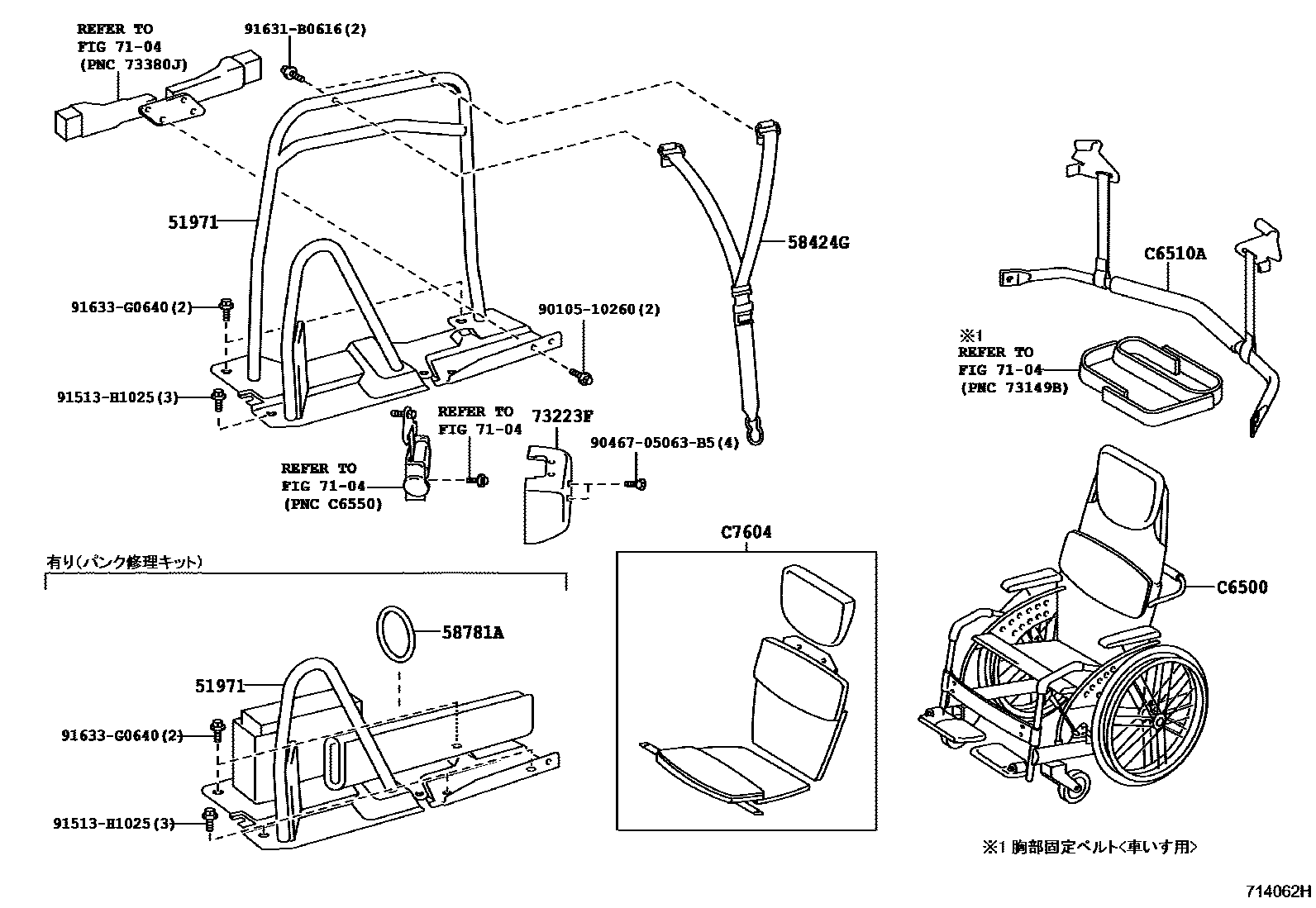

SLOPE & POWER LIFT

0001 1������� RH 0002 1������� LH 0003 1�� ���� ����� 0004 1����� ����� ����(���� ��) 0005 1�-����- & ������ ���

51971PIPE, SPARE WHEEL CARRIER BASE

main51971-52010iNCP100,SCP100200511-200610

main51971-52020iNCP100,SCP100; SCP100200712

58424GBELT, LUGGAGE HOLD, REAR

main58424-52010iNCP100,SCP100200511-200610

58781ABAND, TOOL BAG

main58797-37030iNCP100,SCP100; SCP100200712

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

73223FCOVER, WHEEL CHAIR SET BELT RETRACTOR, RH

main73223-52010iNCP100,SCP100; SCP100200712

C6500WHEEL CHAIR ASSY

mainC6500D1240iNCP100,SCP100200511-200712

mainC795018010iNCP10#,SCP100200712-201008

C6510AHOLDER ASSY, WHEEL CHAIR

mainC651052010iNCP100,SCP100200511-200712

C7604CUSHION SET, SEAT FLAT

mainC760422010iNCP100,SCP100200511-200712

9010510260

main90105-10260

9046705063B5

main90467-05063B5

91513H1025

main91513-H1025

91631B0616

main91631-B0616

91633G0640

main91633-G0640

13 parts on this diagram · 5 diagrams in section
