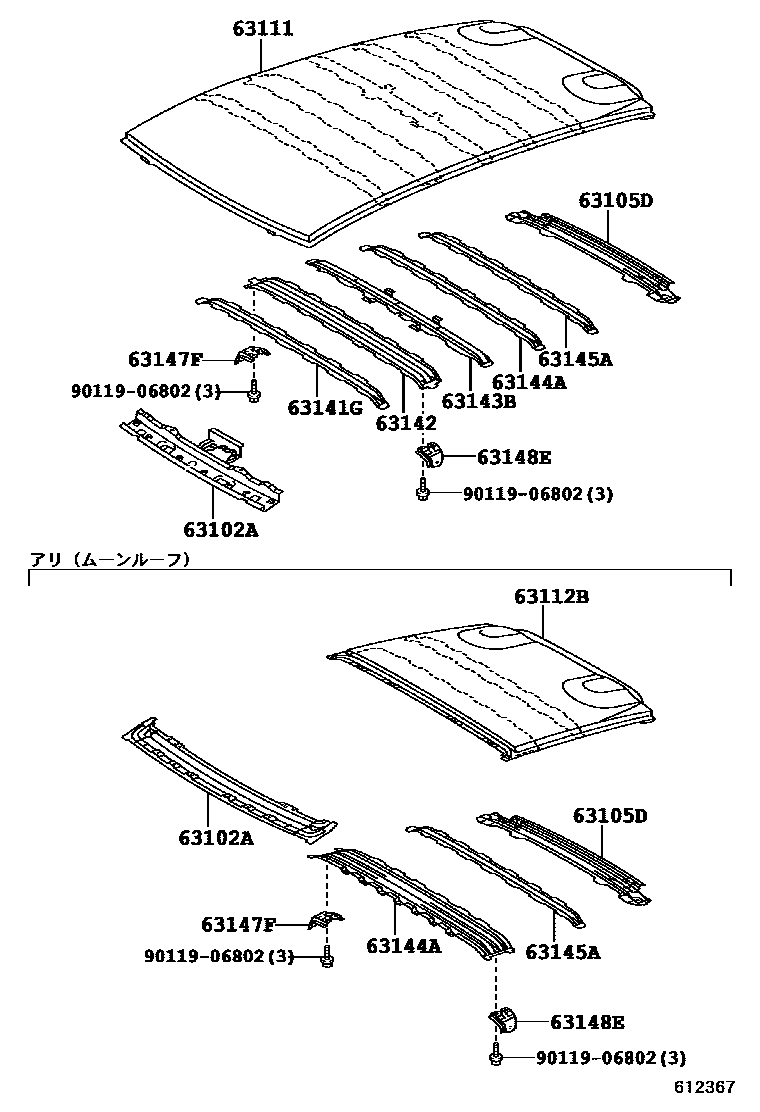

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(������)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52120iNCP10#,SCP100200712-201008

main63102-52130iNCP100200509-200712

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-52120iNCP10#,SCP100200509-200712

63111PANEL, ROOF

main63111-52240iNCP10#,SCP100200712

63112BPANEL, ROOF, REAR

main63113-52020iNCP100200509-200712

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-52120iNCP10#,SCP100200509-200712

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-52110iNCP10#,SCP100200509-200712

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63104-52050iNCP10#,SCP100200509-200712

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63145-52020iNCP10#,SCP100200712

main63142-52040iNCP100200509-200712

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63146-52040iNCP10#,SCP100200712

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52050iNCP10#,SCP100200509-200712

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-52050iNCP10#,SCP100200509-200712

9011906802

main90119-06802

12 parts on this diagram · 2 diagrams in section
