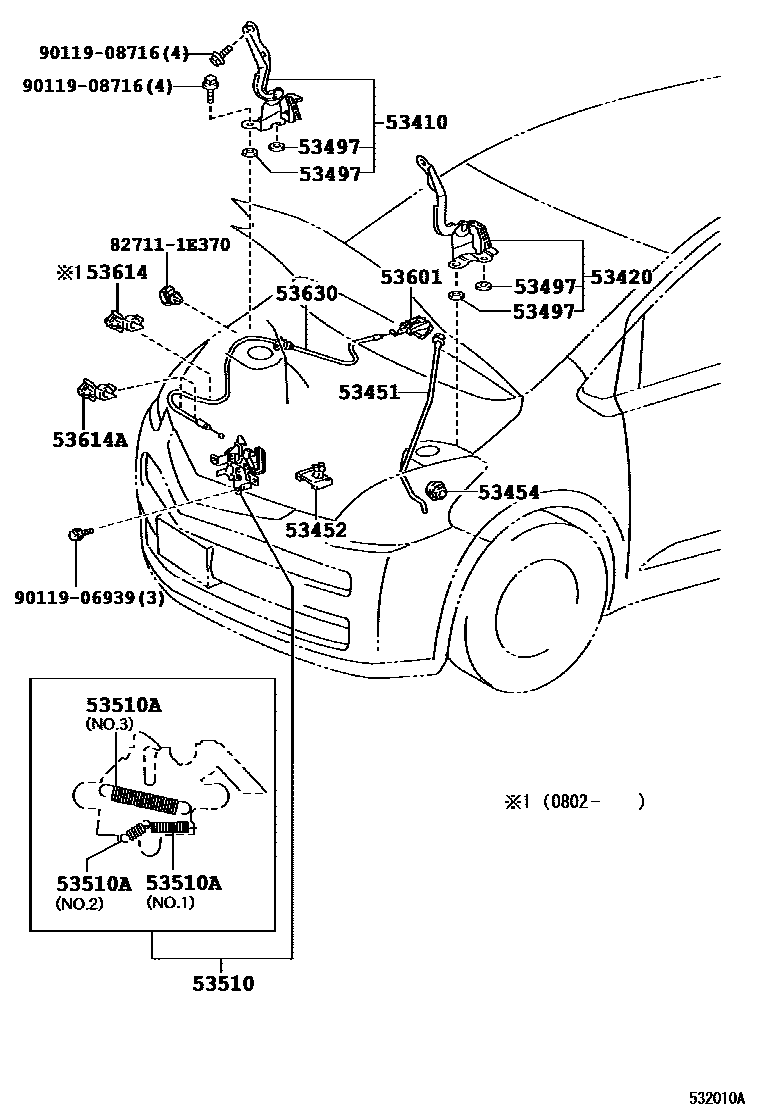

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52210iNCP10#,SCP100200509-200603

main53410-52211iNCP10#,SCP100200712-201008

53420HINGE ASSY, HOOD, LH

main53420-52210iNCP10#,SCP100200509-200603

main53420-52211iNCP10#,SCP100200604-200712

53451ROD, HOOD SUPPORT

main53440-52130iNCP10#,SCP100200712

53452HOLDER, HOOD STAY

main53452-52020iNCP10#,SCP100200509-200712

53454CLIP, HOOD SUPPORT ROD

main53454-12040iNCP10#,SCP100200904

main53454-52040iNCP10#,SCP100200712-200903

53497PAD, HOOD HINGE, NO.1

main53497-10020×4iNCP10#,SCP100200509-200603

main53497-42010×4iNCP10#,SCP100200712

53510LOCK ASSY, HOOD

main53510-52340iNCP10#,SCP100200509-200712

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP10#,SCP100200509-200712

main90506-12063iNCP10#,SCP100200712

main90506-16077iNCP10#,SCP100200712

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP10#,SCP100200509-200712

DK.GRAY,TRIM10,11,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52020iNCP10#,SCP100200802

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52010×2iNCP10#,SCP100200509-200712

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iNCP10#,SCP100200802

main53630-52130iNCP10#,SCP100200509-200712

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9011908716

main90119-08716

15 parts on this diagram · 1 diagram in section
