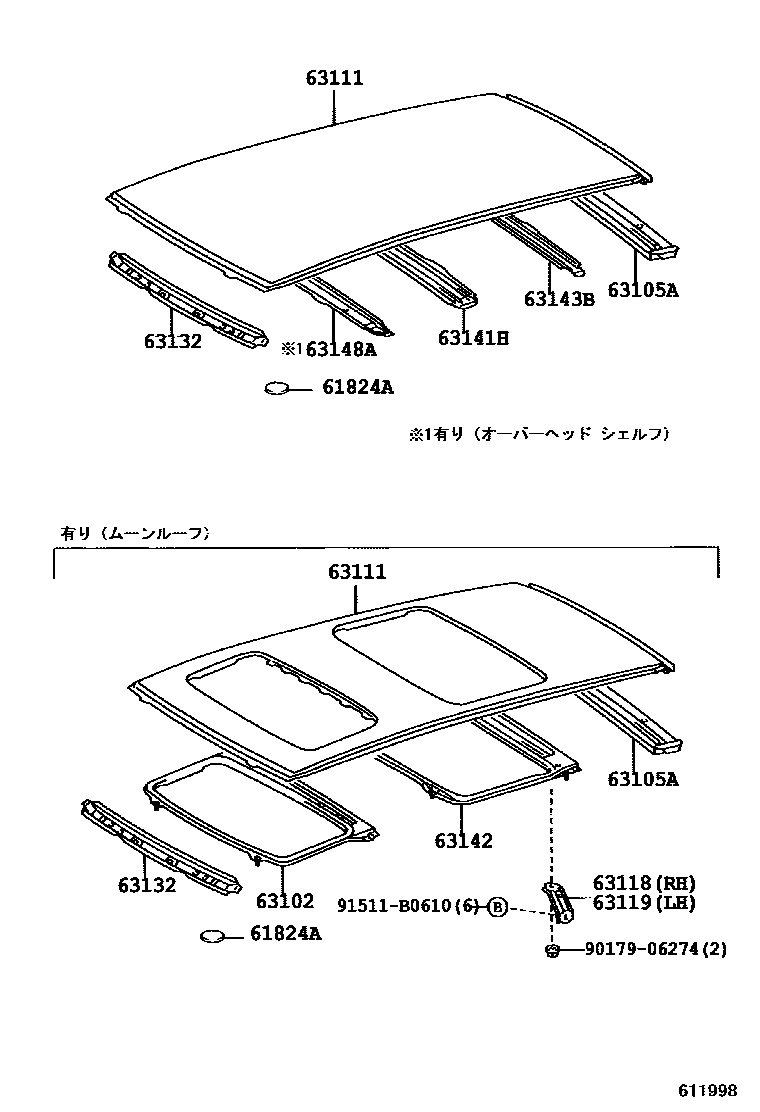

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��� ��� 0003 1�-����

61824APLATE, NOISE CONTROL, NO.1

main61824-52010×4iNCP2#199908-200208

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-52010iNCP20,25..X200208-200403

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52020iNCP2#199908-200112

main63105-52021iNCP2#200112-200204

main63105-52022iNCP2#200204-200208

63111PANEL, ROOF

main63111-52030iNCP2#199908-200208

main63111-52050iNCP2#199908-200208

main63111-52070iNCP2#199908-200208

main63111-52090iNCP2#199908-200208

main63111-52290iNCP2#200208-200509

main63111-52300iNCP20,25..X200208-200403

main63111-52310iNCP20,25..X200208-200403

main63111-52320iNCP20,25..X200208-200403

63118SUPPORT, ROOF PANEL, RH

main63118-52020×2iNCP2#199908-200208

63119SUPPORT, ROOF PANEL, LH

main63119-52010×2iNCP2#199908-200208

63132PANEL, WINDSHIELD HEADER, INNER

main63132-52020iNCP2#199908-200208

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52020iNCP2#199908-200208

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-52010iNCP2#199908-200208

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52020iNCP2#199908-200208

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52010iNCP20,25..X200208-200403

9017906274

main90179-06274

91511B0610

main91511-B0610

13 parts on this diagram · 3 diagrams in section
