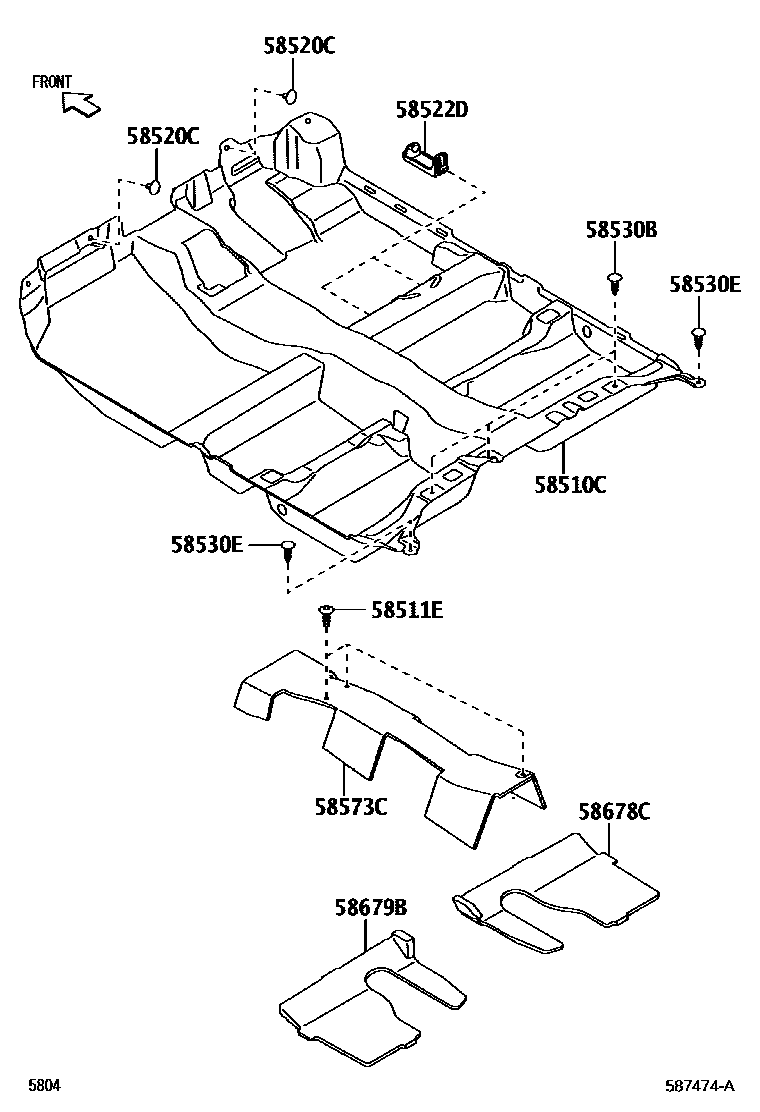

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-B1480-B0supersedes 58510-B1470-B0iM700,710..MODA; M700,710..X201604-202309

58511ECLIP(FOR FRONT FLOOR MAT)

main63399-B2010-A0×3iM700,710201604-202309

IVORY

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-67397×2iM700,710201604-202309

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iM700,710201604-202309

58530BCLIP(FOR FRONT FLOOR CARPET)

main90044-68046-B2×3iM700,710..MODA; M700,710..X201604-201610

DK.GRAY; DK.GRAY,TRIM1#

main90044-68046-C2×3iM700,710201610-202309

BLACK

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90044-68046-B2×2iM700,710..MODA; M700,710..X201604-201610

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main90044-68046-C2×2iM700,710201610-202309

BLACK

58573CPAD, FRONT FLOOR CENTER

main58573-B1010iM700,710201604-202309

58678CPAD, REAR FLOOR SILENCER, NO.1 FRONT RH

main58065-B1010iM700,710201604-202309

58679BPAD, REAR FLOOR SILENCER, NO.1 FRONT LH

main58066-B1010iM700,710201604-202309

9 parts on this diagram · 1 diagram in section
