CAMERA & REAR MONITOR DISPLAY

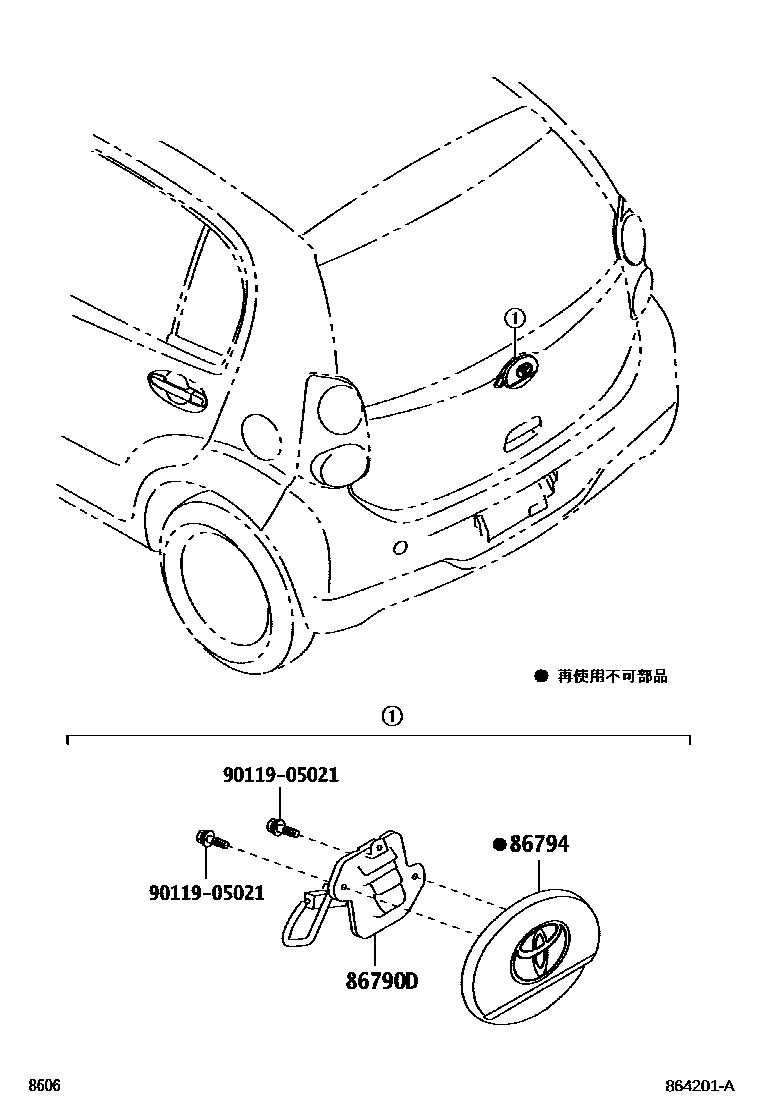

Parts diagram

86790DCAMERA ASSY, TELEVISION, RR

main86790-B1020i201002-201206

main86790-B1030i201404

86794COVER, TELEVISION CAMERA WIRE

main86794-B1010-A0i201002-201206

main86794-B1010-A1i201206-201404

main86794-B1010-B0i201206-201404

main86794-B1010-C0i201206-201404

main86794-B1010-D0i201002-201206

main86794-B1010-D1i201206-201404

main86794-B1010-D2i201002-201206

main86794-B1010-E0i201206-201404

main86794-B1010-G0i201206-201404

main86794-B1010-J0i201002-201206

main86794-B1010-K0i201206-201404

main86794-B1020-A0i201404-201604

main86794-B1020-A1i201404-201604

main86794-B1020-B0i201404-201604

main86794-B1020-C0i201404-201604

main86794-B1020-D0i201404-201602

main86794-B1020-D1i201404-201604

main86794-B1020-D2i201404-201604

main86794-B1020-E0i201404-201604

main86794-B1020-G0i201404-201602

main86794-B1020-G1i201404-201602

main86794-B1020-J0i201404-201604

main86794-B1020-J2i201503-201604

main86794-B1020-K0i201404-201604

9011905021

main90119-05021

3 parts on this diagram · 1 diagram in section
