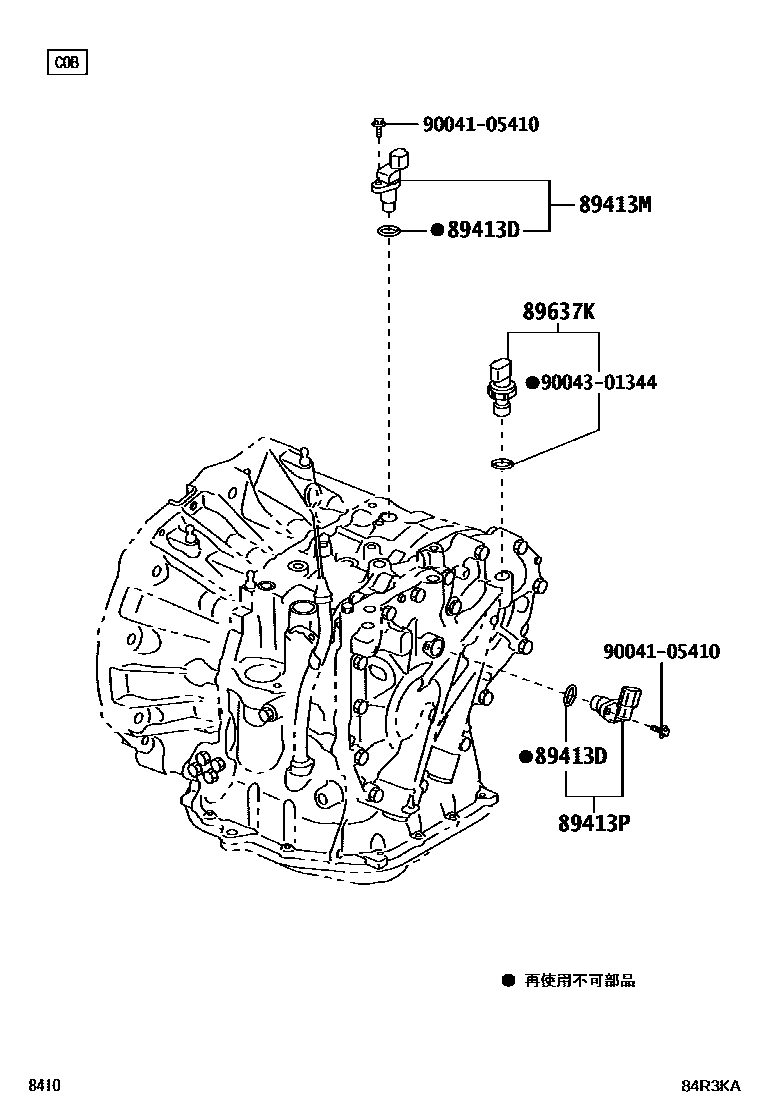

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1C0B 0002 1C0C

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278×2iKGC3#201002-201206

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-97202iKGC3#201404-201604

main89413-B1020iNGC30201206-201404

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B1030iNGC30201002-201206

main89413-B2010iKGC3#201206-201404

89637KSENSOR, OIL PRESSURE

main89637-B1010iNGC30201206-201404

main89637-B2010iKGC3#201002-201206

9004105410

main90041-05410

9004301344

main90043-01344

6 parts on this diagram · 2 diagrams in section
