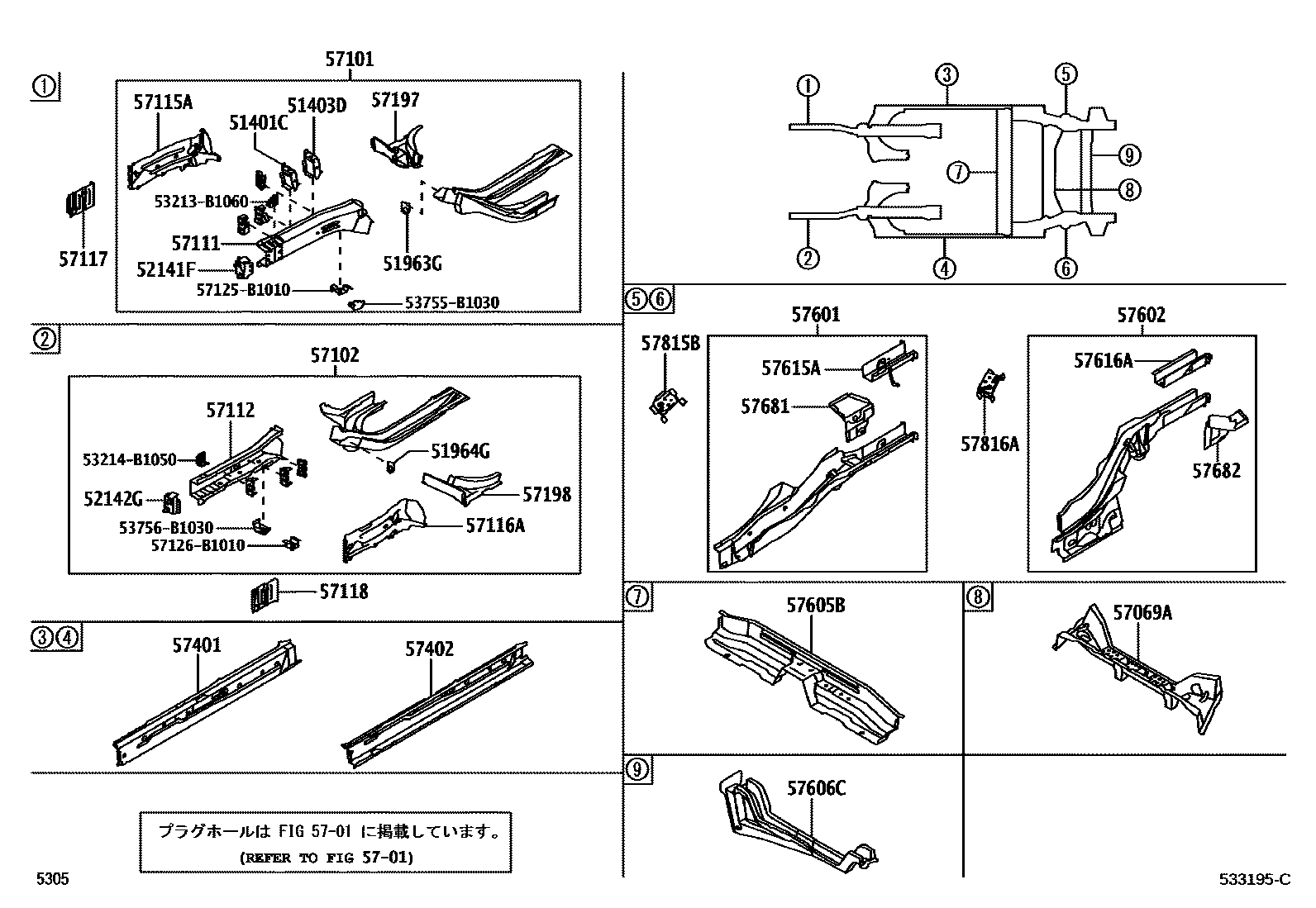

FLOOR SIDE MEMBER
51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING
51963GHOOK, TRANSPORT, FRONT RH
51964GHOOK, TRANSPORT, FRONT LH
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
5701HOLE PLUG
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57681BRACKET, REAR SHOCK ABSORBER, RH
57682BRACKET, REAR SHOCK ABSORBER, LH
57815BREINFORCEMENT, BELT ANCHOR, NO.1 RH
57816AREINFORCEMENT, BELT ANCHOR, NO.1 LH
53213B1060PANEL, FRONT UNDER, RH
main53213-B1060
53214B1050PANEL, FRONT UNDER, LH
main53214-B1050
53755B1030RETAINER, FRONT FRAME SUPPORT
main53755-B1030
53756B1030WEATHERSTRIP, FRONT FENDER APRON TO FRAME, NO.1
main53756-B1030
57125B1010BRACKET, FRONT SIDE MEMBER, RH
main57125-B1010
57126B1010BRACKET, FRONT SIDE MEMBER, LH
main57126-B1010
36 parts on this diagram · 2 diagrams in section
