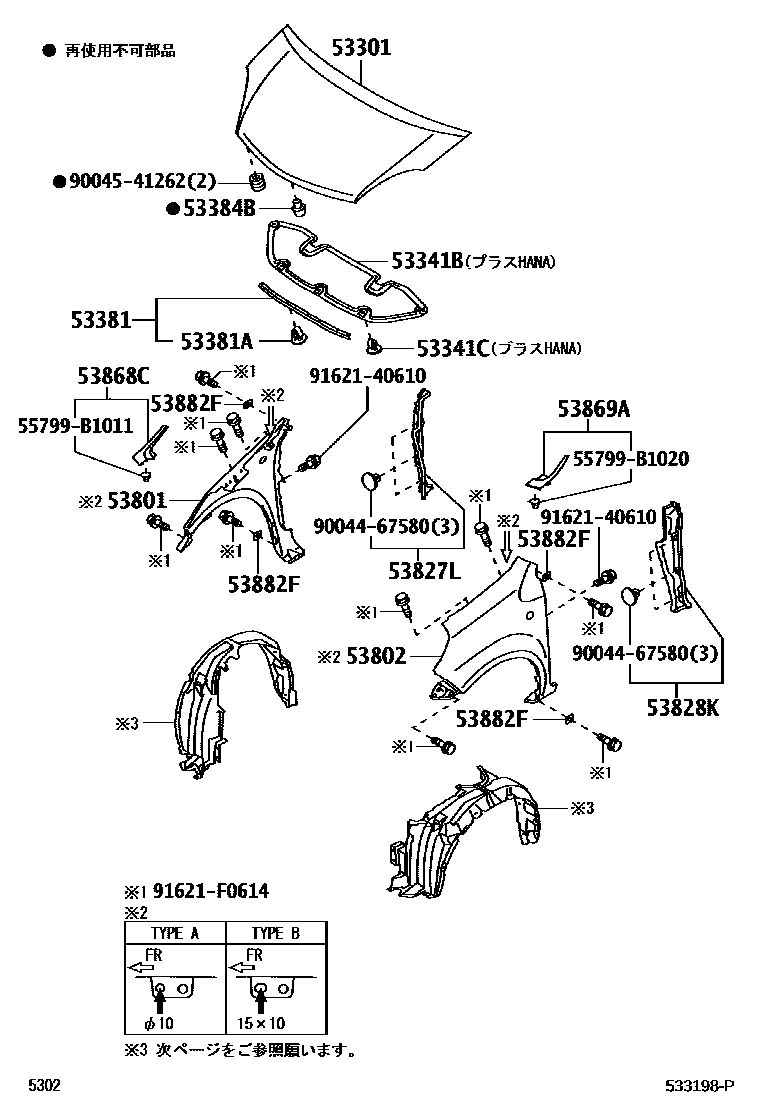

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-B1110iKGC3#,NGC30201404-201604

53341BINSULATOR, HOOD

main53341-B1060iKGC3#,NGC30..HANA,X; KGC30..X201404

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iKGC3#,NGC30..HANA,X; KGC30..X201404

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-B1070iKGC3#,NGC30201404

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iKGC3#,NGC30201404

53384BCUSHION, HOOD, CENTER

main53384-B2010×3iKGC3#,NGC30201206-201404

53801FENDER SUB-ASSY, FRONT RH

main53811-B1200iKGC30,NGC30..G,X; KGC35..X201002-201004

main53811-B1201supersedes 53811-B1221iKGC30,NGC30..G,X; KGC35..X201004-201206

main53811-B1210iKGC30,NGC30..HANA; KGC35..HANA201002-201004

main53811-B1211supersedes 53811-B1191iKGC30,NGC30..HANA; KGC35..HANA201404-201604

53802FENDER SUB-ASSY, FRONT LH

main53812-B1200iKGC30,NGC30..G,X; KGC35..X201002-201004

main53812-B1201supersedes 53812-B1221iKGC30,NGC30..G,X; KGC35..X201004-201206

main53812-B1210iKGC30,NGC30..HANA; KGC35..HANA201002-201004

main53812-B1211supersedes 53812-B1191iKGC30,NGC30..HANA; KGC35..HANA201004-201206

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-B1060iKGC3#,NGC30..HANA,X; KGC30..X; NGC30..G201404

main53827-B1050iKGC3#,NGC30201002-201206

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-B1060iKGC3#,NGC30..HANA,X; KGC30..X; NGC30..G201404

main53828-B1050iKGC3#,NGC30201206-201404

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-B1060iKGC3#,NGC30201002-201003

main53868-B1061iKGC3#,NGC30201206-201404

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-B1060iKGC3#,NGC30201002-201003

main53869-B1061iKGC3#,NGC30201404

53882FSEAL, FRONT FENDER

main53882-B1010×4iKGC3#,NGC30201404-201604

55799B1011COVER, WIPER MOTOR

main55799-B1011

55799B1020COVER, WIPER MOTOR

main55799-B1020

9004467580

main90044-67580

9004541262

main90045-41262

9162140610

main91621-40610

91621F0614

main91621-F0614

19 parts on this diagram · 2 diagrams in section
