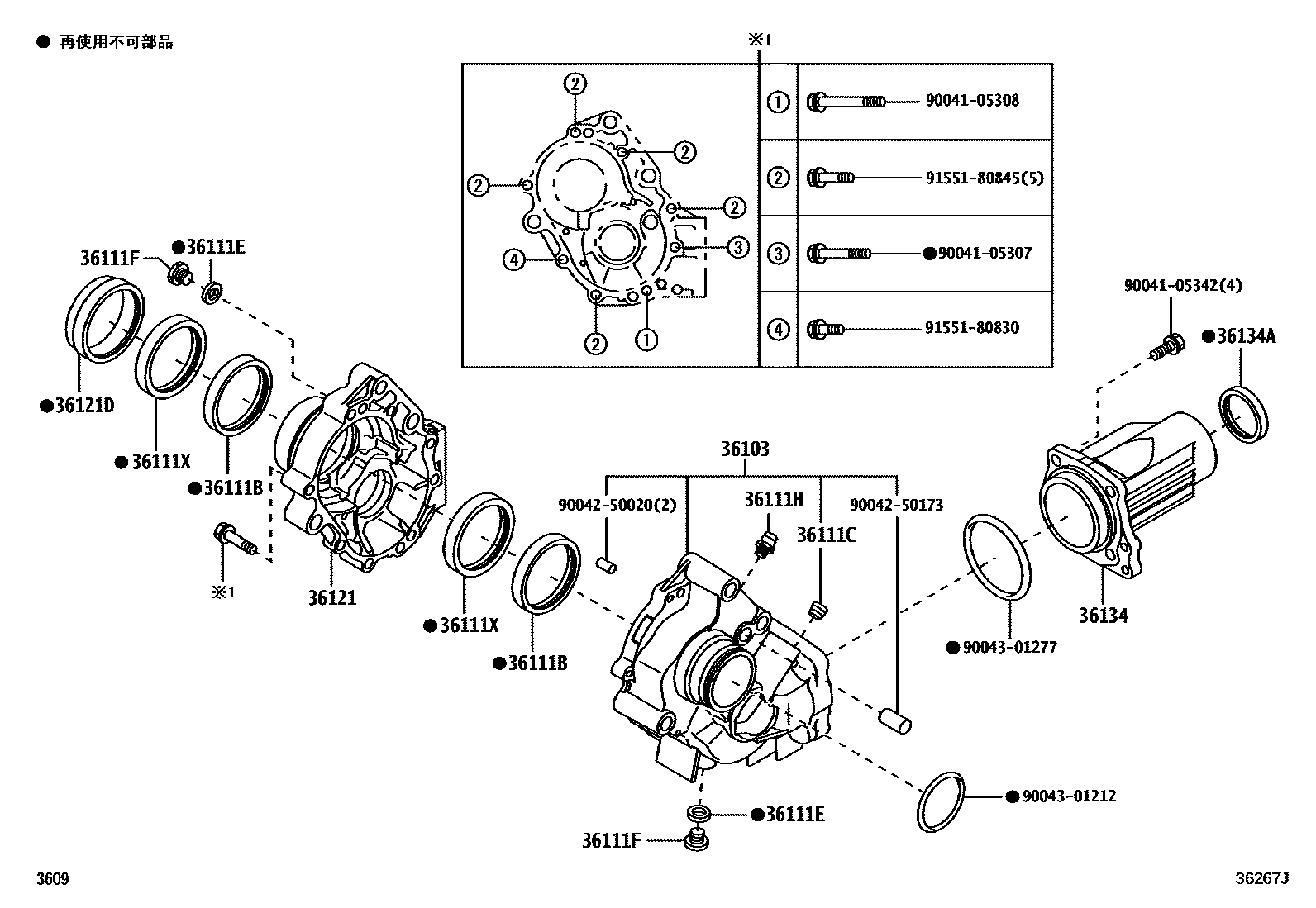

TRANSFER CASE & EXTENSION HOUSING

36103CASE SUB-ASSY, TRANSFER

main36103-B1030iKGC35201002-201206

36111BSEAL, OIL (FOR TRANSFER CASE)

main90043-11408×2iKGC35201002-201009

main90043-11415×2iKGC35201009-201206

36111CPLUG (FOR TRANSFER CASE)

main90043-44020iKGC35201002-201206

36111EGASKET (FOR TRANSFER CASE)

main90044-30178×2iKGC35201002-201206

36111FPLUG (FOR TRANSFER CASE)

main90341-16012×2iKGC35201002-201206

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90049-15026iKGC35201002-201206

36111XSEAL, OIL (FOR TRANSFER CASE), NO.2

main90043-11409×2iKGC35201002-201009

main90043-11416×2iKGC35201009-201206

36121COVER, TRANSFER CASE, NO.1

main36121-B1030iKGC35201002-201206

36121DSEAL, OIL(FOR TRANSFER CASE COVER)

main90043-11333iKGC35201002-201206

36134RETAINER, OUTPUT SHAFT BEARING, FRONT

main36134-B1010iKGC35201002-201206

36134ASEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)

main90043-11332iKGC35201002-201009

main90043-11414iKGC35201009-201206

9004105307

main90041-05307

9004105308

main90041-05308

9004105342

main90041-05342

9004250020

main90042-50020

9004250173

main90042-50173

9004301212

main90043-01212

9004301277

main90043-01277

9155180830

main91551-80830

9155180845

main91551-80845

20 parts on this diagram · 1 diagram in section
