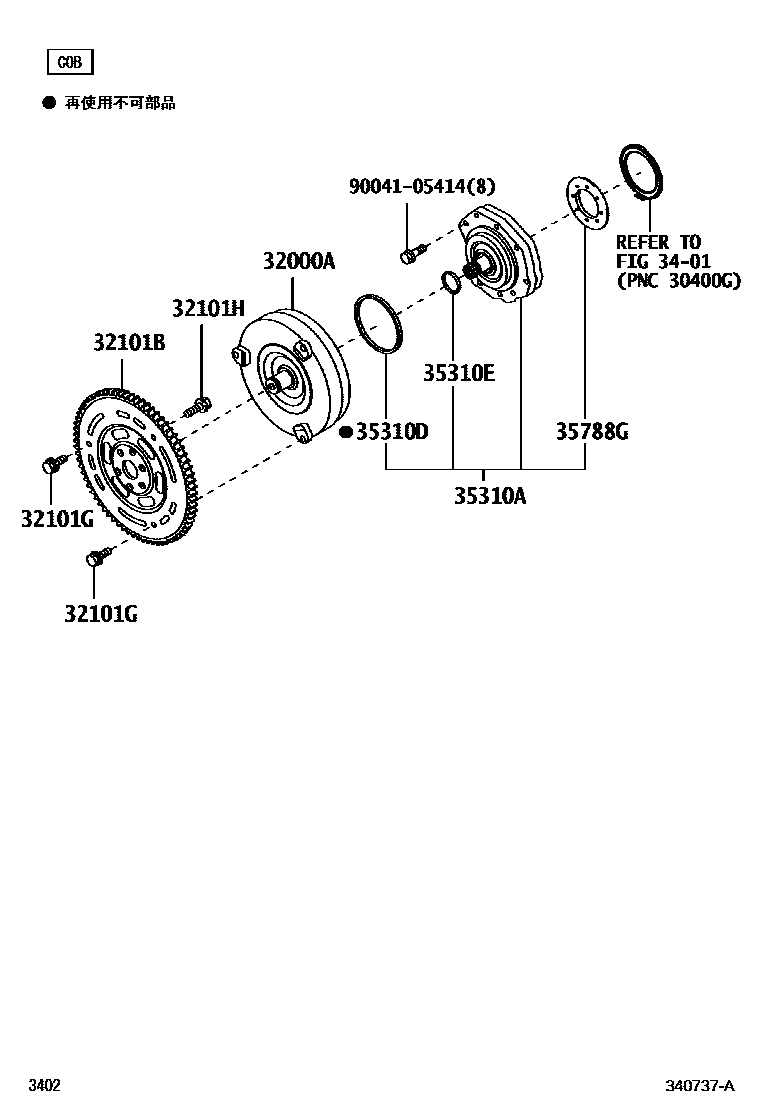

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1C0B 0002 1C0B 0003 1C0C

32000ACONVERTER ASSY, TORQUE

main32000-B1030iKGC3#201002-201206

main32000-B1050iNGC30201002-201006

main32000-B1060iNGC30201007-201404

main32000-B1070iKGC3#201206-201404

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B1030iNGC30201002-201404

main32101-B1050iKGC3#201002-201206

main32101-B1051iKGC3#201206-201404

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iKGC3#,NGC30201002-201404

main90041-05281iNGC30201002-201404

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037iKGC3#201002-201404

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9040iKGC3#201002-201010

main35310-B9041iKGC3#201011-201206

main35310-B9070iKGC3#201206-201308

main35310-B9071iKGC3#201308-201404

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iKGC3#201002-201404

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11369iKGC3#201002-201404

main90043-11423iKGC3#201110-201204

35788GRACE, THRUST BEARING

main35789-B2010iKGC3#201002-201010

main35789-B2020iKGC3#201002-201010

main35789-B2030iKGC3#201002-201010

main35789-B2040iKGC3#201002-201010

main35789-B2050iKGC3#201002-201010

main35789-B2060iKGC3#201011-201307

main35789-B2061iKGC3#201308-201404

main35789-B2070iKGC3#201011-201307

main35789-B2071iKGC3#201308-201404

main35789-B2080iKGC3#201011-201307

main35789-B2081iKGC3#201308-201404

main35789-B2090iKGC3#201011-201307

main35789-B2091iKGC3#201308-201404

main35789-B2100iKGC3#201011-201307

main35789-B2101iKGC3#201308-201404

main35789-B2110iKGC3#201206-201307

main35789-B2111iKGC3#201308-201404

9004105414

main90041-05414

10 parts on this diagram · 3 diagrams in section
