CRANKSHAFT & PISTON

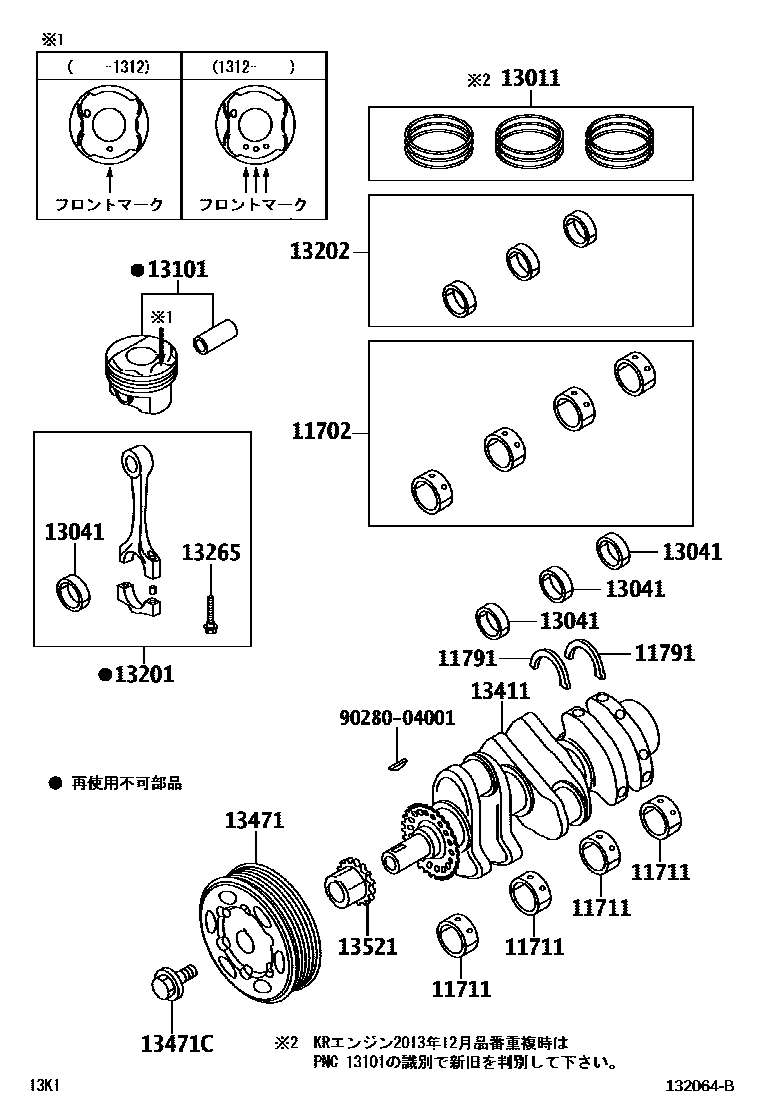

Parts diagram

11702BEARING SET, CRANKSHAFT

main11704-40040i201002-201206

11711BEARING, CRANKSHAFT

main11701-40040-02×4i201002-201206

main11701-40040-03×4i201404-201604

main11701-40040-04×4i201002-201206

main11701-40040-05×4i201002-201206

main11701-47011×5i201206-201208

main11701-47011-02×5i201002-201206

main11701-47011-03×5i201002-201206

main11701-47011-04×5i201002-201206

main11701-47011-05×5i201002-201206

main11701-47012-02×5i201208-201404

main11701-47012-03×5i201404-201604

main11701-47012-04×5i201208-201404

main11701-47012-05×5i201208-201404

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-40020×2i201206-201402

main11791-40040×2i201404

main11791-47010×2i201404

main11792-40020×2i201002-201206

main11792-40040×2i201403-201404

main11793-40020×2i201206-201402

main11793-40040×2i201404

13011RING SET, PISTON

main13011-40051i201002-201012

main13011-40052i201206-201312

main13011-40070i201312-201404

main13011-47030i201002-201108

main13011-47031i201109-201206

main13011-47032i201301-201307

main13011-47033i201308-201404

13041BEARING, CONNECTING ROD

main13041-40031-01×3i201002-201012

main13041-40031-02×3i201002-201012

main13041-40031-03×3i201002-201012

main13041-40032-01×3i201404-201604

main13041-40032-02×3i201206-201404

main13041-40032-03×3i201206-201404

main13041-47010×4i201206-201208

main13041-47010-01×4i201002-201206

main13041-47010-02×4i201002-201206

main13041-47010-03×4i201002-201206

main13041-47011-01×4i201208-201404

main13041-47011-02×4i201208-201404

main13041-47011-03×4i201208-201404

13101PISTON SUB-ASSY, W/PIN

main13101-40030×3i201206-201312

main13101-40040×3i201404

main13101-40070×3i201312-201404

main13101-47020×4i201002-201202

main13101-47021×4i201206-201212

main13101-47022×4i201301-201304

main13101-47110×4i201304-201404

13201ROD SUB-ASSY, CONNECTING

main13201-49076×3i201002-201011

main13201-49077×3i201206-201404

main13201-49085×4i201206-201208

main13201-49086×4i201208-201404

13202BEARING SET, CONNECTING ROD

main13204-40031i201002-201011

main13205-B1010i201002-201011

13265BOLT, CONNECTING ROD

main13265-21020×6i201404

13411CRANKSHAFT

main13401-40020i201206-201403

main13401-40060i201403-201404

main13401-47011i201206-201404

13471PULLEY, CRANKSHAFT

main13470-47050i201404

main13471-40060i201206-201404

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i201404

main90119-14106i201206-201404

main90119-14175i201505

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-40020i201002-201206

9028004001

main90280-04001

14 parts on this diagram · 2 diagrams in section
