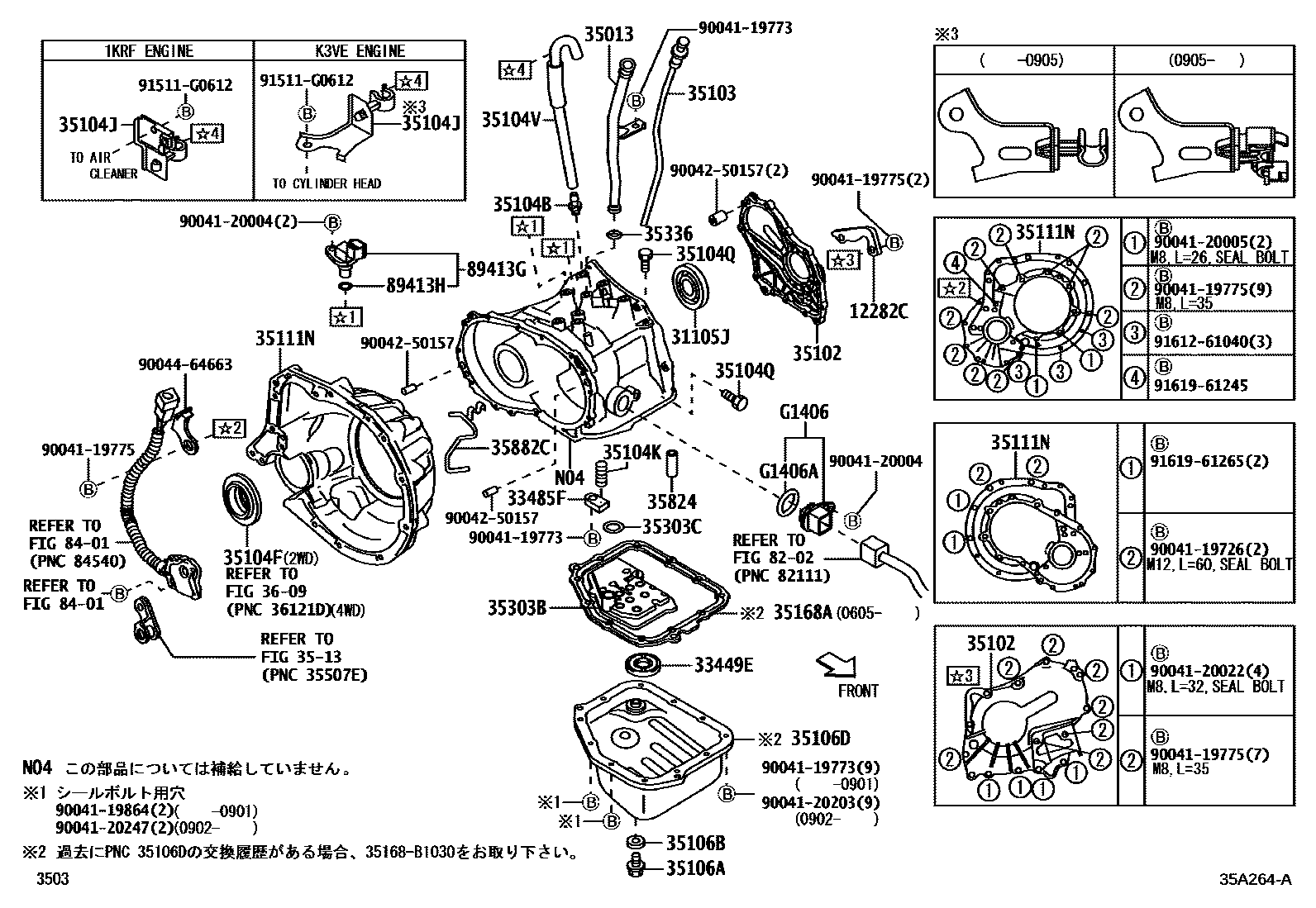

TRANSMISSION CASE & OIL PAN (ATM)

12282CHANGER, ENGINE, NO.2

main12282-97206iK3VE,1KRFE..KGC1#,QNC10; K3VE..QNC10..RACY200612-201002

31105JSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90043-11316iKGC1#,QNC10200405-200612

33449EMAGNET, TRANSAXLE

main33449-87502iKGC1#,QNC10200405-200612

main33449-B2010iKGC1#,QNC10; QNC10..RACY200907-201002

33485FPLATE, SPEEDMETER LOCK

main33485-87201iKGC1#,QNC10200405-200612

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-97207iKGC1#,QNC10200405-200612

35102COVER SUB-ASSY, TRANSAXLE REAR

main35181-97202iKGC1#,QNC10200405-200612

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-97203iKGC1#,QNC10200405-200612

35104BPLUG, BREATHER, NO.1 (ATM)

main90049-15053iKGC1#,QNC10; QNC10..RACY200612-201002

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90043-11317iKGC10,QNC10; QNC10..RACY200612-201002

35104JBRACKET, BREATHER PLUG HOSE

main58107-B1010iKGC1#200405-200612

main58107-B1020iQNC10200405-200612

main58107-B1030iQNC10; QNC10..RACY200905-201002

35104KCOMPRESSION SPRING, TRANSAXLE CASE

main90045-01801iKGC1#,QNC10; QNC10..RACY200612-201002

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90043-45040×7iKGC1#,QNC10200405-200612

35104VHOSE (FOR BREATHER PLUG)

main90044-44086iKGC1#200612-201002

main90044-44087iQNC10; QNC10..RACY200612-201002

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iKGC1#,QNC10; QNC10..RACY200612-201002

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iKGC1#,QNC10200405-200612

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-B1010iKGC1#,QNC10200405-200612

35111NTRANSAXLE HOUSING (ATM)

main35111-97203iKGC1#,QNC10200405-200612

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-B1010iKGC1#,QNC10; QNC10..RACY200605-200612

35303BSTRAINER SUB-ASSY,OIL

main35303-97201iKGC1#,QNC10200405-200612

35303CRING,O(FOR OIL STRAINER)

main96721-24021iKGC1#,QNC10200405-200612

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01160iKGC1#,QNC10200405-200612

35824SEAL, BRAKE CYLINDER

main35824-97201iKGC1#,QNC10200405-200612

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-97201iKGC1#,QNC10200405-200612

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89413GSENSOR, TRANSMISSION REVOLUTION

main89413-97201×2iKGC1#,QNC10200405-200507

main89413-97202×2iKGC1#,QNC10; QNC10..RACY200507-200612

89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278×2iKGC1#,QNC10200405-200612

G1406CONNECTOR SUB-ASSY, TRANS SOLENOID

mainG140697201iKGC1#,QNC10200405-200612

G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)

main90043-01281iKGC1#,QNC10200405-200612

9004119726

main90041-19726

9004119773

main90041-19773

9004119775

main90041-19775

9004119864

main90041-19864

9004120004

main90041-20004

9004120005

main90041-20005

9004120022

main90041-20022

9004120203

main90041-20203

9004120247

main90041-20247

9004250157

main90042-50157

9004464663

main90044-64663

91511G0612

main91511-G0612

9161261040

main91612-61040

9161961245

main91619-61245

9161961265

main91619-61265

46 parts on this diagram · 1 diagram in section
