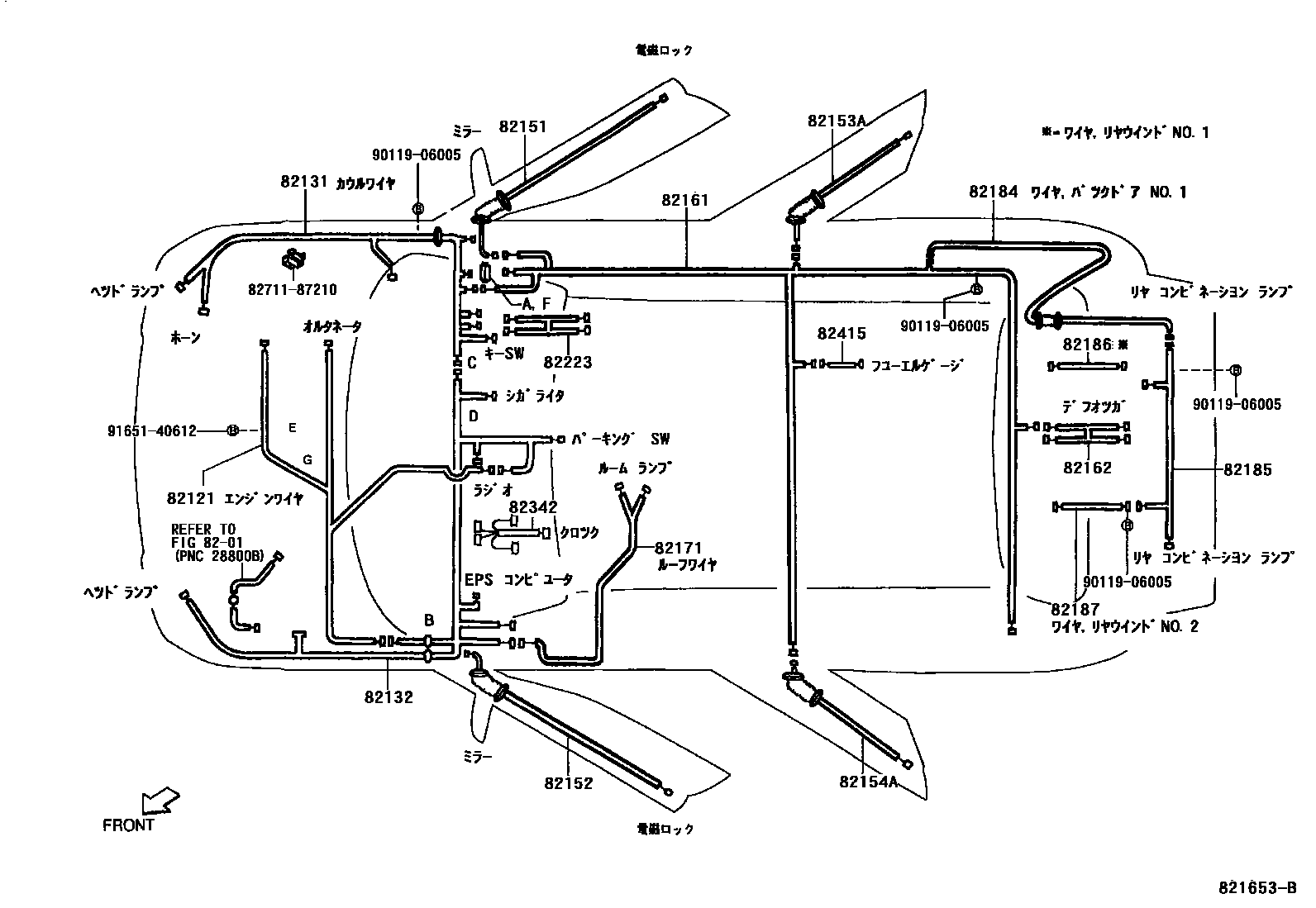

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82121WIRE, ENGINE

main82121-97217iM100,110199809-200005

main82121-97401iM100,110200005-200108

main82121-97402iM101,111..V200005-200112

main82121-97410iM101,111..4ATS..(V,X)200112

main82121-97411iM101,111..5F..(V,X)200112

main82121-97420iM101,111..VS200005-200112

main82121-97427iM100,110200112-200211

main82121-97430iM101,111..4ATS..VS200112

main82121-97431iM101,111..5F..VS200112

main82121-97461iM100,110200109-200111

main82121-97472iM100,110200212

82131WIRE, COWL

main82131-97222iM100,110..V199809-200005

main82131-97223iM100,110..X199809-200005

main82131-97401iM100,110..V200005-200112

main82131-97402iM100,110..V200005-200112

main82131-97426iM100,110..V; M100,110..X200005-200112

main82131-97427iM101,111200005-200112

main82131-97428iM100,110..V200005-200112

main82131-97F01iM100,110..V199904-200005

main82131-97F05iM100,110..V199904-200005

main82135-97M01iM100,110..V200112

main82135-97M02iM100,110..V200112-200208

82132WIRE, COWL, NO.2

main82132-97258iM100..4AT..V199809-199902

main82132-97262iM100..4AT..X199809-199902

main82132-97283iM100..5F..X; M110..5F..X199809-199902

main82132-97284iM100..4AT..X; M110..4AT..X199809-199902

main82132-97285iM100..5F..V; M110..5F..V199809-199902

main82132-97286iM100..4AT..V; M110..4AT..V199809-199902

main82132-97401iM100,110..5F..V200005-200112

main82132-97413iM101..V200005-200112

main82132-97420iM100,110..5F..X200005-200112

main82132-97426iM101,111..V200009-200112

main82132-97427iM101,111..VS200005-200112

main82132-97428iM100,110..5F..X200012-200112

main82132-97429iM101,111..VS200012-200112

main82132-97452iM100,110..4AT..V200005-200112

main82132-97456iM100,110..4AT..X200005-200112

main82132-97470iM100,110..4AT..X200012-200112

main82132-97494iM101,111..V200012-200112

main82132-97495iM101..V200012-200112

main82132-97B61iM100..5F..V199809-199902

main82132-97B62iM100..5F..V199809-199902

main82132-97B65iM100..5F..X199809-199902

main82132-97F01iM100..5F..V199904-199907

main82132-97F02iM100..4AT..V199904-199907

main82132-97F05iM100..5F..X199904-199907

main82132-97F06iM100..4AT..X;M110..4AT..V199904-199907

main82132-97F07iM100..5F..V; M110..5F..V199904-199907

main82132-97F08iM100..4AT..V; M110..4AT..V199904-199907

main82132-97F11iM100..5F..X; M110..5F..X199904-199907

main82132-97F12iM100..4AT..X; M110..4AT..X199904-199907

main82132-97F14iM100..5F..V199904-199907

main82132-97F15iM100..4AT..V199904-199907

main82132-97F16iM100..5F..V; M110..5F..V199904-199907

main82132-97F17iM100..4AT..V; M110..4AT..V199904-199907

main82132-97F18iM100..5F..V199904-199907

main82132-97F69iM110..5F..V199904-199907

main82132-97F71iM110..5F..X199904-199907

main82132-97F74iM110..4AT..X199904-199907

main82132-97F79iM100..5F..V199910-200005

main82132-97F80iM100..5F..V199910-200005

main82132-97F81iM100..5F..V199910-200005

main82132-97F82iM110..5F..V199910-200005

main82132-97F83iM100..5F..V; M110..5F..V199910-200005

main82132-97F84iM100..5F..V; M110..5F..V199910-200005

main82132-97F85iM100..5F..X199910-200005

main82132-97F86iM110..5F..X199910-200005

main82132-97F87iM100..5F..X; M110..5F..X199910-200005

main82132-97F88iM100..4AT..V199910-200005

main82132-97F89iM100..4AT..V199910-200005

main82132-97F90iM110..4AT..V199910-200005

main82132-97F91iM100..4AT..V; M110..4AT..V199910-200005

main82132-97F92iM100..4AT..V; M110..4AT..V199910-200005

main82132-97F93iM100..4AT..X199910-200005

main82132-97F94iM110..4AT..X199910-200005

main82132-97F95iM100..4AT..X; M110..4AT..X199910-200005

main82132-97M02iM100..5F..V199907-199910

main82132-97M03iM100..5F..V199907-199910

main82132-97M05iM100..5F..V; M110..5F..V199907-199910

main82132-97M06iM100..5F..V; M110..5F..V199907-199910

main82132-97M08iM100..5F..X199907-199910

main82132-97M11iM110..5F..X199907-199910

main82132-97M12iM100..5F..X; M110..5F..X199907-199910

main82132-97M21iM100..4AT..V199907-199910

main82132-97M22iM100..4AT..V199907-199910

main82132-97M23iM110..4AT..V199907-199910

main82132-97M24iM100..4AT..V; M110..4AT..V199907-199910

main82132-97M25iM100..4AT..V; M110..4AT..V199907-199910

main82132-97M27iM100..4AT..X199907-199910

main82132-97M30iM110..4AT..X199907-199910

main82132-97M31iM100..4AT..X; M110..4AT..X199907-199910

main82132-97M39iM100,110..5F..V200005-200112

main82132-97M48iM100,110..4AT..V200005-200112

main82132-97M51iM101,111..V200005-200008

main82132-97M78iM100,110..5F..V200012-200112

main82132-97M79iM100,110..4AT..V200012-200112

main82132-97M82iM110..5F..V199907-199910

main82133-97233iM100..5F..V199902-199904

main82133-97234iM100..4AT..V199902-199904

main82133-97235iM100..4AT..V; M110..4AT..V199902-199904

main82133-97236iM100..5F..V199902-199904

main82133-97237iM100..5F..V; M110..5F..V199902-199904

main82133-97238iM100..5F..X199902-199904

main82133-97239iM100..5F..X; M110..5F..X199902-199904

main82133-97240iM100..4AT..X199902-199904

main82133-97241iM100..4AT..X; M110..4AT..X199902-199904

main82133-97F01iM100,110..5F..V200112

main82133-97F02iM100,110..5F..V200112

main82133-97F03iM100,110..5F..V200112

main82133-97F04iM100,110..4AT..V200112

main82133-97F05iM100,110..4AT..V200112

main82133-97F06iM100,110..4AT..V200303

main82133-97F07iM100,110..5F..X200112

main82133-97F08iM100,110..4AT..X200112

main82133-97F09iM100,110..5F..X200112

main82133-97F10iM100,110..4AT..X200112

main82133-97F11iM101,111..5F200112

main82133-97F12iM101,111..5F..VS200112

main82133-97F13iM101,111..5F200112

main82133-97F15iM101,111..4ATS..VS200112

main82133-97F16iM101,111..4ATS200112

main82133-97F17iM101,111..4ATS200112

main82133-97F18iM101..4ATS200112

main82133-97F19iM101..4ATS200112

main82133-97F20iM101..4ATS200112

main82133-97F61iM101,111..5F..VS200112

main82133-97F62iM101,111..4ATS..VS200112

main82133-97F69iM101,111..4ATS..VS200112

82151WIRE, FRONT DOOR, RH

main82151-97204iM100,110..V199809-199904

main82151-97205iM100,110..V199809-199904

main82151-97206iM100,110..V199904-200005

main82151-97209iM100,110..V199904-200005

main82151-97210iM100,110..X199809-199904

main82151-97247iM100,110..V199904-200005

main82151-97248iM100,110..V199904-200005

main82151-97250iM100,110..X199904-200005

main82151-97401iM100,110..V200005-200112

main82151-97420iM100,110..V; M101,111;M100,110..X200005-200112

main82151-97421iM100,110..V200005-200112

main82151-97422iM100,110..V200005-200112

main82151-97441iM100,110..V200112

main82151-97442iM100,110..V200112-200208

main82151-97443iM100,110..V; M101,111;M100,110..X200112-200208

main82151-97462iM100,110..V200208

main82151-97463iM100,110..V; M101,111;M100,110..X200208

82152WIRE, FRONT DOOR, LH

main82152-97204iM100,110..V199809-200005

main82152-97205iM100,110..V199809-200005

main82152-97206iM100,110..V199904-200005

main82152-97209iM100,110..V199904-200005

main82152-97210iM100,110..X199809-200005

main82152-97422iM100,110..V200005-200112

main82152-97423iM100,110..V200005-200112

main82152-97424iM100,110..V; M101,111;M100,110..X200005-200112

main82152-97437iM100,110..V200112

main82152-97438iM100,110..V200112

main82152-97440iM100,110..V; M101,111;M100,110..X200112

82153AWIRE, REAR DOOR, RH

main82153-97202iM100,110199809-200005

main82153-97405iM10#,11#200005-200112

main82153-97407iM10#,11#200112

82154AWIRE, REAR DOOR, LH

main82154-97202iM100,110199809-200005

main82154-97405iM10#,11#200005-200112

main82154-97407iM10#,11#200112

82161WIRE, FLOOR

main82161-97201iM100..V199809-199904

main82161-97202iM110..V199809-199904

main82161-97243iM100..V; M110..V199809-199904

main82161-97244iM100..X199809-199904

main82161-97245iM110..X199809-199904

main82161-97246iM100..V199809-199904

main82161-97247iM100..V199809-199904

main82161-97248iM100..X199809-199904

main82161-97251iM100..X199809-199904

main82161-97252iM110..X199809-199904

main82161-97415iM100..V; M101;M100..X200012-200112

main82161-97428iM101..V200012-200112

main82161-97430iM110..V; M111;M110..X200012-200112

main82161-97434iM100,110..V200005-200112

main82161-97435iM100..V; M101;M100..X200005-200112

main82161-97436iM100,110..V200005-200112

main82161-97437iM100..V200005-200112

main82161-97441iM101..V200005-200112

main82161-97446iM110..V; M111;M110..X200005-200112

main82161-97447iM110..V200005-200112

main82161-97489iM100,110..V200112

main82161-97490iM100,110..V200112

main82161-97491iM10#200112

main82161-97492iM100..V200112

main82161-97493iM101..4ATS200112

main82161-97494iM11#200112

main82161-97495iM110..V200112

main82161-97B34iM100..V199904-199906

main82161-97B35iM100..V; M110..V199904-199906

main82161-97B36iM100..V199904-199906

main82161-97B37iM110..V199904-199906

main82161-97B38iM100..V199904-199906

main82161-97B44iM100..V199904-199906

main82161-97B45iM110..V199904-199906

main82161-97B54iM100..V; M110..V199904-199906

main82161-97B55iM100..X199904-199906

main82161-97B56iM110..X199904-199906

main82161-97B57iM100..V199904-199906

main82161-97B58iM100..V199904-199906

main82161-97B59iM100..X199904-199906

main82161-97B61iM100; M100..V199904-199906

main82161-97B62iM110..X199904-199906

main82161-97B86iM100..V199907-200005

main82161-97B87iM100..V199907-200005

main82161-97B88iM100..V; M110..V199907-200005

main82161-97B89iM100..V; M110..V199907-200005

main82161-97B90iM100..V199907-200005

main82161-97B91iM100..V199907-200005

main82161-97B92iM100..V199907-200005

main82161-97B93iM100..V199907-200005

main82161-97B94iM100..X199907-200005

main82161-97B95iM100..X199907-200005

main82161-97B96iM100; M100..V199907-200005

main82161-97B97iM110..V199907-200005

main82161-97B98iM110..V199907-200005

main82161-97B99iM110..X199907-200005

main82161-97L01iM110; M110..V199907-200005

82162WIRE, FLOOR, NO.2

main82162-97201iM110..V199907-200005

main82162-97202iM100,110..V199809-200005

main82162-97408iM101,111;M100,110..X200005-200112

82171WIRE, ROOF, NO.1

main82171-97201iM100,110..V199809-200005

main82171-97203iM100,110..X199809-200005

main82171-97401iM10#,11#200005

82184WIRE, BACK DOOR, NO.1

main82184-97202iM100..V199809-200005

main82184-97204iM100..V; M110;M100..X199809-200005

main82184-97205iM100,110..V; M100..V; M110;M100..X199904-199909

main82184-97206iM100..V199904-199909

main82184-97225iM100,110..V; M100..V; M110;M100..X199909-200005

main82184-97226iM100..V199909-200005

main82184-97414iM100..V200005

main82184-97416iM100..V; M100..X;M101,11#200005

main82184-97417iM100..V; M100..X;M101,11#200005-200303

main82184-97418iM100..V200005-200303

82185WIRE, BACK DOOR, NO.2

main82185-97201iM100..V199904-200005

main82185-97202iM100..V199809-200005

main82185-97203iM100,110..V; M100..V; M110;M100..X199904-200005

main82185-97204iM100..V199904-200005

main82185-97405iM100..V200005-200303

main82185-97406iM100..V200005

main82185-97407iM100..V; M100..X;M101,11#200005-200303

main82185-97408iM100..V; M100..X;M101,11#200005

82186WIRE, REAR WINDOW, NO.1

main82186-97201iM10#,11#199809

82187WIRE, REAR WINDOW, NO.2

main82187-97201iM10#,11#199809

82223WIRE, SWITCH

main82223-97203iM100,110199809-200005

main82223-97401iM10#,11#200005-200112

main82223-97424iM10#,11#200112-200401

main82223-97450iM10#,11#200401

82342WIRE, CLOCK

main82342-87105iM100,110199809-199904

82415WIRE, FUEL PUMP

main82415-97202iM10#,11#199809

8271187210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-87210

9011906005

main90119-06005

9165140612

main91651-40612

21 parts on this diagram · 7 diagrams in section
