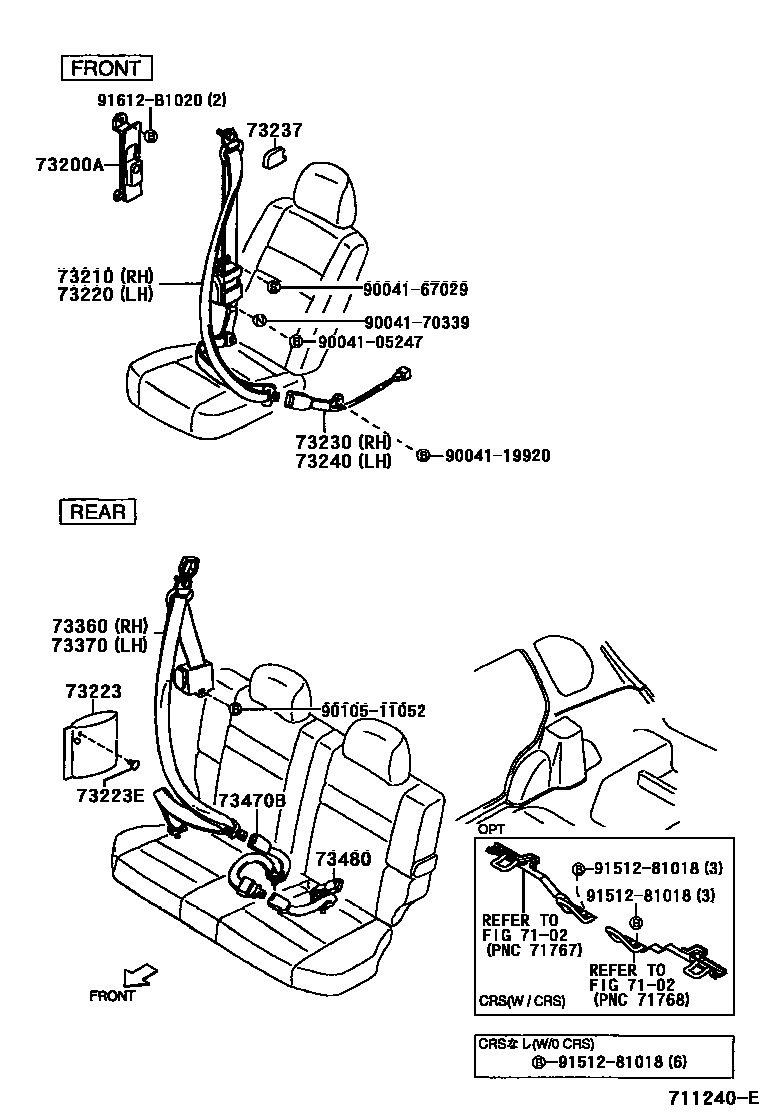

SEAT BELT & CHILD RESTRAINT SEAT

7102REAR SEAT & SEAT TRACK

→ Go to FIG 71-02

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-97201-08×2iM10#,11#199809

IVORY,TRIMS6,S8

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-97201-03iM100199809-199902

DARK GRAY,TRIMS6

main73210-97202-03iM100; M110199809-199902

main73210-97204-03iM100..X; M110..X199809-199902

main73210-97210-03iM10#199902-200007

GRAY,TRIMS6,S8

main73210-97211-03iM100; M100..V199902-200005

main73210-97217-03iM100,110199909-200005

main73210-97231-03iM10#; M11#200005-200007

main73210-97405-03iM10#,11#200107-200112

GRAY,TRIMS6,S8

main73210-97407-03iM10#,11#200112

DARK GRAY,TRIMS6,S8

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-97201-03iM100199809-199902

DARK GRAY,TRIMS6

main73220-97202-03iM100; M110199809-199902

main73220-97204-03iM100..X; M110..X199809-199902

main73220-97210-03iM10#199902-200007

GRAY,TRIMS6,S8

main73220-97211-03iM100; M100..V199902-200005

main73220-97217-03iM100,110199902-199908

main73220-97231-03iM10#; M11#200005-200007

main73220-97405-03iM10#,11#200107-200112

GRAY,TRIMS6,S8

main73220-97407-03iM10#,11#200112

GRAY,TRIMS6,S8

73223COVER, SEAT BELT RETRACTOR

main73223-87205×2iM10#,11#199809-200112

73223ECLIP, REAR SEAT BELT RETRACTOR COVER

main90044-68036-01×2iM10#,11#199809-200112

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-97201-03iM10#,11#199809

SHADOW GRAY,TRIMS6,S8

main73230-97206-03iM100,110..V; M100..V199904-200005

73237COVER, SHOULDER BELT ANCHOR

main73237-97202-08×2iM10#,11#199809-200108

IVORY,TRIMS6,S8

main73237-97403-08×2iM10#,11#200108

IVORY,TRIMS6,S8

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-97202-03iM100,110199809-199904

SHADOW GRAY,TRIMS6

main73230-97207-03iM100,110..V; M100..V199904-200005

main73230-97213-03iM10#,11#200005

DARK GRAY,TRIMS6,S8

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-97202-03iM10#,11#199809

DARK GRAY,TRIMS6,S8

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-97202-03iM10#,11#199809

DARK GRAY,TRIMS6,S8

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-97202-03iM10#,11#199809

DARK GRAY,TRIMS6,S8

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-97202-03iM10#,11#199809

DARK GRAY,TRIMS6,S8

9004105247

main90041-05247

9004119920

main90041-19920

9004167029

main90041-67029

9004170339

main90041-70339

9010511052

main90105-11052

9151281018

main91512-81018

91612B1020

main91612-B1020

20 parts on this diagram · 1 diagram in section
