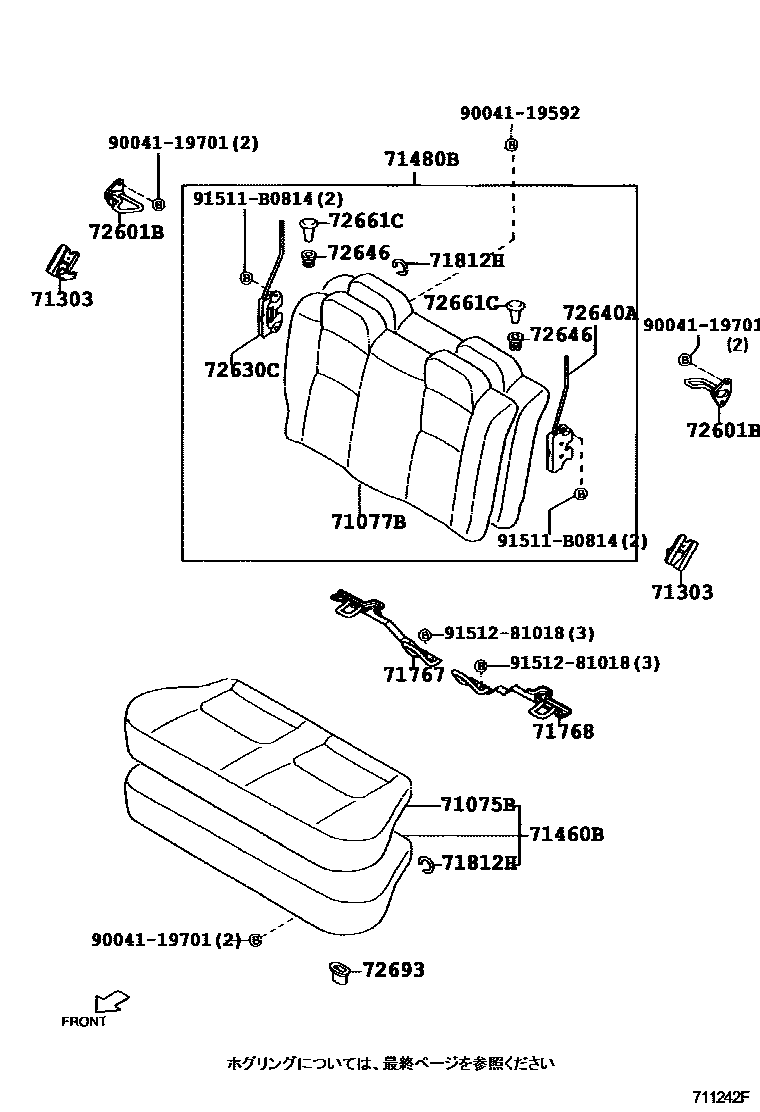

REAR SEAT & SEAT TRACK

0001 1 0002 1����-� ���� 0003 1����-� ���� 0004 1��(�� �������) 0005 1�������

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-97201-03iM100,110..V199809-200005

DARK GRAY,TRIMS6

main71075-97205-03iM100,110..X199809-200005

DARK GRAY,TRIMS6

main71075-97206-01iM100,110..X199809-200005

main71075-97230-03iM100,110..V199904-200005

main71075-97231-03iM100,110..V199904-200005

main71075-97235-03iM100,110..V199904-200005

main71075-97280-03iM100,110..V200005-200112

main71075-97280-07iM100,110..V200005-200112

main71075-97281-03iM101,111200005-200112

main71075-97291-03iM100,110..X200005-200112

D.GRAY,TRIMS6

main71075-97291-07iM100,110..X200005-200112

GREEN,TRIMS8

main71075-97296-03iM10#,11#..V,VS200005-200112

D.GRAY,TRIMS6

main71075-97296-07iM10#,11#..V,VS200005-200112

GREEN,TRIMS8

main71075-97401-05iM10#,11#..V,VS200012-200112

main71075-97403-01iM101,111..VS200112

BLACK,TRIMS6

main71075-97417-03iM10#,11#..V200112

GRAY,TRIMS6

main71075-97417-07iM10#,11#..V200112

GREEN,TRIMS8

main71075-97418-03iM100,110..V;M111..4ATS..V200112

main71075-97418-07iM100,110..V;M111..4ATS..V200112

main71075-97419-05iM10#,11#..X200112

BEIGE,TRIMS6

main71075-97426-05iM100,110..V200205

main71075-97428-03iM100,110..V200303

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71083-97201-03iM100,110..V199809-200005

DARK GRAY,TRIMS6

main71083-97227-03iM100,110..V199904-200005

main71083-97228-03iM100,110..V199904-200005

main71083-97230-03iM100,110..V199904-200005

main71083-97253-03iM100,110..V200005-200112

main71083-97253-07iM100,110..V200005-200112

main71083-97279-03iM10#,11#..V,VS200005-200112

D.GRAY,TRIMS6

main71083-97279-07iM10#,11#..V,VS200005-200112

GREEN,TRIMS8

main71083-97403-05iM10#,11#..V,VS200012-200112

main71083-97405-03iM10#,11#..V200112

GRAY,TRIMS6

main71083-97405-07iM10#,11#..V200112

GREEN,TRIMS8

main71083-97411-03iM100,110..V;M111..4ATS..V200112

main71083-97411-07iM100,110..V;M111..4ATS..V200112

main71083-97413-05iM100,110..V200205

main71083-97414-03iM100,110..V200303

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-97201×2iM10#,11#199809

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-97201-03iM100,110..V199809-200005

DARK GRAY,TRIMS6

main71460-97205-03iM100,110..X199809-200005

DARK GRAY,TRIMS6

main71460-97206-01iM100,110..X199809-200005

main71460-97233-03iM100,110..V199904-200005

main71460-97234-03iM100,110..V199904-200005

main71460-97239-03iM100,110..V199904-200005

main71460-97419-03iM100,110..X200005-200112

D.GRAY,TRIMS6

main71460-97419-07iM100,110..X200005-200112

GREEN,TRIMS8

main71460-97431-03iM111..VS;M100,110..V200005-200112

main71460-97431-07iM111..VS;M100,110..V200005-200112

main71460-97432-03iM101,111200005-200112

main71460-97442-03iM10#,11#..V,VS200005-200112

D.GRAY,TRIMS6

main71460-97442-07iM10#,11#..V,VS200005-200112

GREEN,TRIMS8

main71460-97446-05iM10#,11#..V,VS200012-200112

main71460-97448-01iM101,111..VS200112

BLACK,TRIMS6

main71460-97455-03iM10#,11#..V200112

GRAY,TRIMS6

main71460-97455-07iM10#,11#..V200112

GREEN,TRIMS8

main71460-97456-03iM100,110..V;M111..5F..VS;M111..4ATS..V200112

main71460-97456-07iM100,110..V;M111..5F..VS;M111..4ATS..V200112

main71460-97457-05iM10#,11#..X200112

BEIGE,TRIMS6

main71460-97465-05iM100,110..V200205

main71460-97466-03iM100,110..V200303

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71580-97201-03iM100,110..V199809-200005

DARK GRAY,TRIMS6

main71580-97236-03iM100,110..V199904-200005

main71580-97237-03iM100,110..V199904-200005

main71580-97241-03iM100,110..V199904-200005

main71580-97283-03iM111..VS;M100,110..V200005-200112

main71580-97283-07iM111..VS;M100,110..V200005-200112

main71580-97412-03iM10#,11#..V,VS200005-200112

D.GRAY,TRIMS6

main71580-97412-07iM10#,11#..V,VS200005-200112

GREEN,TRIMS8

main71580-97417-05iM10#,11#..V,VS200012-200112

main71580-97419-03iM10#,11#..V200112

GRAY,TRIMS6

main71580-97419-07iM10#,11#..V200112

GREEN,TRIMS8

main71580-97426-03iM100,110..V;M111..5F..VS;M111..4ATS..V200112

main71580-97426-07iM100,110..V;M111..5F..VS;M111..4ATS..V200112

main71580-97431-03iM100,110..V200303

main72580-97430-05iM100,110..V200205

71767BRACKET, REAR SIDE SEATBACK SET, REAR RH

main71767-97201iM10#,11#200005-200112

main71767-97401iM10#,11#200112

71768BRACKET, REAR SIDE SEATBACK SET, REAR LH

main71768-97201iM10#,11#200005-200112

main71768-97401iM10#,11#200112

71812HRING, HOG, SMALL (FOR REAR SEAT)

main71812-87201×33iM10#,11#199809

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-97202iM10#,11#199809

main72602-97202iM10#,11#199809

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-97201iM10#,11#199809

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-97201iM10#,11#199809

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-87701-33×2iM10#,11#199809

DARK GRAY,TRIMS6

main72646-87701-73×2iM10#,11#200005

LT GREENISH GRAY,TRIMS8

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-87701-43×2iM10#,11#199809

DARK GRAY,TRIMS6

main72661-87701-83×2iM10#,11#200005

LT GREENISH GRAY,TRIMS8

72693HOOK, REAR SEAT CUSHION LOCK

main72693-97201×2iM10#,11#199809

9004119592

main90041-19592

9004119701

main90041-19701

91511B0814

main91511-B0814

9151281018

main91512-81018

18 parts on this diagram · 5 diagrams in section
