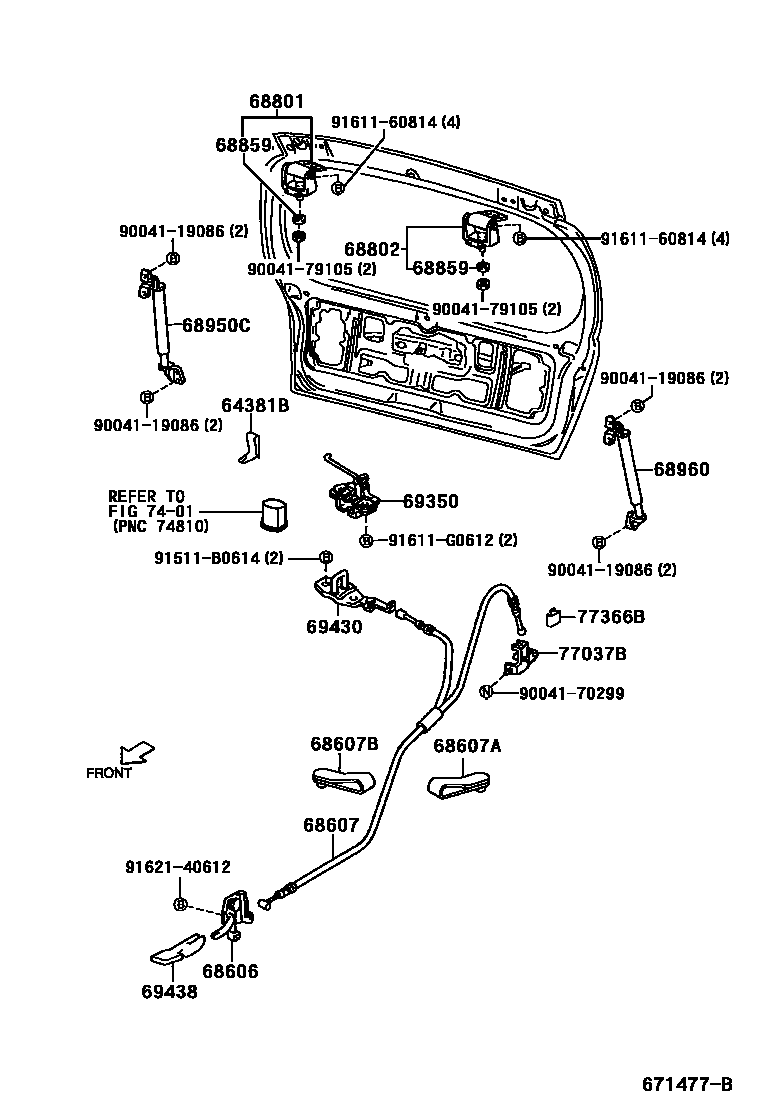

BACK DOOR LOCK & HANDLE

64381BHANGER, PACKAGE TRAY TRIM

main64381-97201×2iM10#,11#199809

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-97204iM10#,11#199809

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-97204iM10#,11#199809

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main90044-64119iM10#,11#200005

main90044-64621iM100,110199809-200005

68607BCLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE)

main90044-64680iM10#,11#199809

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-97201iM10#,11#199809-200212

main68801-97209iM10#,11#200301

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-97201iM100..V199809-200212

main68801-97202iM10#,11#199809-200212

main68801-97209iM100..V200301

main68801-97210iM10#,11#200301

68859PACKING, BACK DOOR HINGE

main68859-87201×2iM10#,11#199810

68950CSTAY ASSY, BACK DOOR, RH

main68950-97201iM100..V199809

main68950-97202iM10#,11#199809

68960STAY ASSY, BACK DOOR, LH

main68960-97201iM100..V199809

main68960-97202iM10#,11#199809

69350LOCK ASSY, BACK DOOR

main69350-97205iM10#,11#199809

69430HANDLE ASSY, BACK DOOR PULL CENTER

main69430-97201iM10#,11#199809

69438LEVER, BACK DOOR LOCK OPEN

main69438-97204iM10#,11#199809

7401ARMREST & VISOR

→ Go to FIG 74-01

77037BLOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-97201iM10#,11#199809

77366BSPRING, FUEL FILLER OPENING LID HINGE

main77366-87203iM10#,11#199809

9004119086

main90041-19086

9004170299

main90041-70299

9004179105

main90041-79105

91511B0614

main91511-B0614

9161160814

main91611-60814

91611G0612

main91611-G0612

9162140612

main91621-40612

23 parts on this diagram · 1 diagram in section
