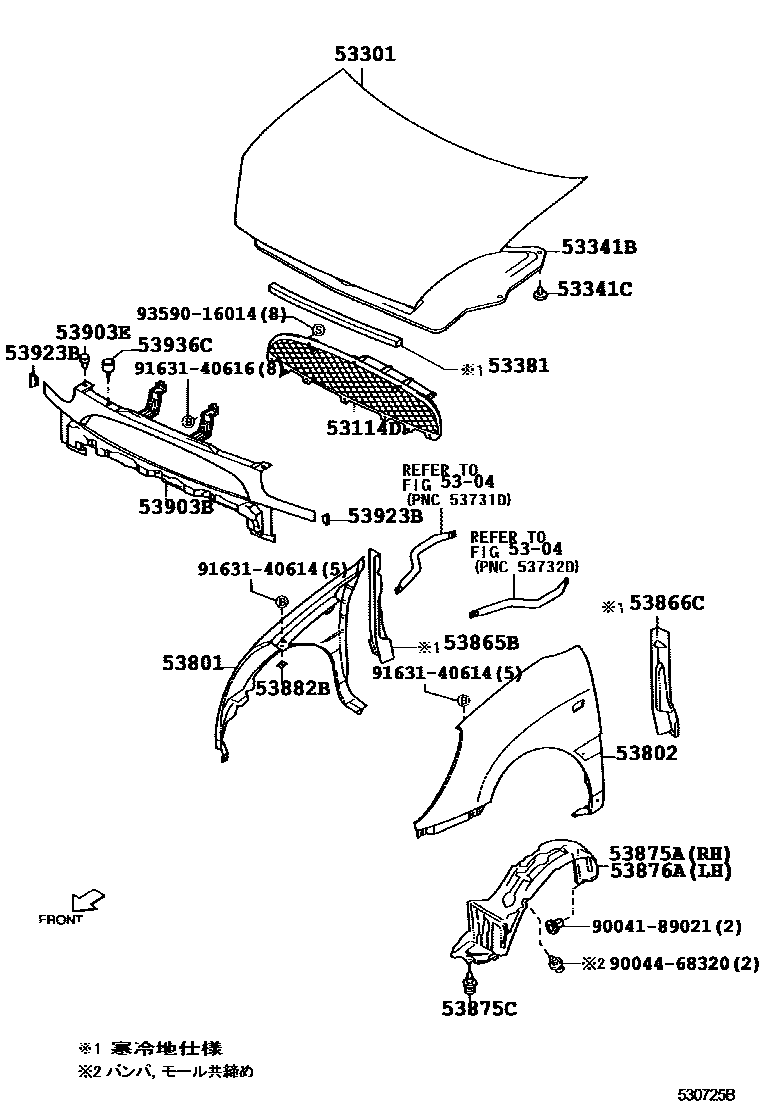

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53114DGRILLE, RADIATOR, UPPER

main53114-97201iM100,110199809-200005

main53114-97401iM10#,11#200005-200112

main53114-97402iM101,111200005-200112

53301HOOD SUB-ASSY

main53301-97201iM10#,11#199809-200112

main53301-97404iM10#,11#200112

53341BINSULATOR, HOOD

main53341-97201iM10#,11#199809-200112

main53341-97402iM10#,11#200112

53341CCLIP(FOR HOOD INSULATOR)

main90044-68280×9iM10#,11#199809

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-87202iM10#,11#199809-200112

main53381-97402iM10#,11#200112

53801FENDER SUB-ASSY, FRONT RH

main53811-97201iM10#,11#199809-200112

main53811-97203iM101,111..VS200112

main53811-97204iM100,110..V199904-200112

main53811-97404iM10#,11#..V,X200112

53802FENDER SUB-ASSY, FRONT LH

main53812-97201iM10#,11#199809-200112

main53812-97203iM101,111..VS200112

main53812-97204iM100,110..V199904-200112

main53812-97404iM10#,11#..V,X200112

53865BPLATE, FRONT FENDER EXTENSION, RH

main53865-97201iM10#,11#199809

53866CPLATE, FRONT FENDER EXTENSION, LH

main53866-97201iM10#,11#199809

53875ALINER, FRONT FENDER, RH

main53875-97201iM10#,11#199809-200112

main53875-97401iM101,111200005-200112

main53875-97406iM10#,11#200112

53875CCLIP, FRONT FENDER LINER

main90044-68060×12iM10#,11#199809-200112

53876ALINER, FRONT FENDER, LH

main53876-97201iM10#,11#199809-200112

main53876-97401iM101,111200005-200112

main53876-97406iM10#,11#200112

53882BSEAL, FRONT FENDER, RH

main53882-87701×2iM10#,11#199809-200112

53903BPANEL SUB-ASSY, FRONT END

main53903-97201iM100,110199809-200112

main53903-97401iM101,111200005-200112

53903ECLIP, FRONT END PANEL

main90044-68149×2iM10#,11#199809-200112

53923BPROTECTOR, FRONT BALANCE PANEL

main53923-97201×2iM10#,11#199809-200112

53936CCUSHION

main90045-41224×2iM10#,11#199809-200112

9004189021

main90041-89021

9004468320

main90044-68320

9163140614

main91631-40614

9163140616

main91631-40616

9359016014

main93590-16014

23 parts on this diagram · 3 diagrams in section
