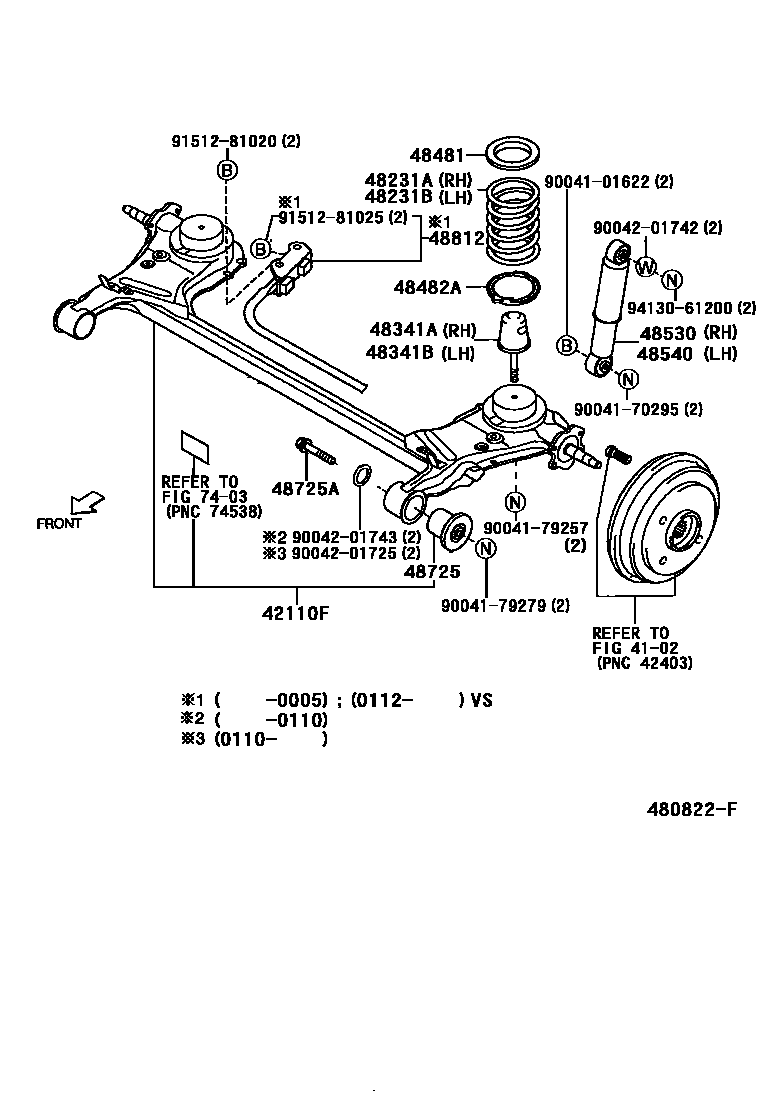

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

42110FBEAM ASSY, REAR AXLE

main48710-97202iM10#199809-200112

main48710-97401iM101..VS200112

48231ASPRING, COIL, REAR RH

main48231-97201iM100199809-199904

main48231-97202iM110199809-199904

main48231-97226iM100199904-200005

main48231-97227iM110199904-200005

main48231-97401iM11#..V,X200112

main48231-97402iM10#200005-200112

main48231-97413iM101..VS200112

main48231-97414iM111..VS200112

48231BSPRING, COIL, REAR LH

main48231-97201iM100199809-199904

main48231-97202iM110199809-199904

main48231-97226iM100199904-200005

main48231-97227iM110199904-200005

main48231-97401iM11#200005-200112

main48231-97402iM10#..V,X200112

main48231-97413iM101..VS200112

main48231-97414iM111..VS200112

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-87211iM11#199809

main48341-97201iM10#199809

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-87211iM11#199809

main48341-97201iM10#199809

48481SEAT, REAR SPRING, UPPER

main48481-87204×2iM100,110199809-199912

main48481-97201×2iM10#,11#200001

48482ASEAT, REAR SPRING, LOWER

main48482-97201×2iM10#,11#199809

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-97226iM100199809-199904

main48531-97227iM100; M100..X199809-199904

main48531-97228iM110199809-199904

main48531-97231iM100199809-199904

main48531-97235iM100199904-200005

main48531-97236iM100199904-200005

main48531-97237iM110199904-200005

main48531-97238iM100199904-200005

main48531-97402iM11#200005

main48531-97403iM10#..V,X200112

main48531-97409iM10#200005-200112

main48531-97421iM101..VS200112

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-97226iM100199809-199904

main48531-97227iM100; M100..X199809-199904

main48531-97228iM110199809-199904

main48531-97231iM100199809-199904

main48531-97235iM100199904-200005

main48531-97236iM100199904-200005

main48531-97237iM110199904-200005

main48531-97238iM100199904-200005

main48531-97402iM11#200005

main48531-97403iM10#..V,X200112

main48531-97409iM10#200005-200112

main48531-97421iM101..VS200112

48725BUSH, LOWER CONTROL ARM

main48725-97201×2iM10#199809

48725ABOLT(FOR LOWER CONTROL ARM)

main42919-97201×2iM10#199809-200007

main42919-97401×2iM10#200008-200103

48812BAR, STABILIZER, REAR

main48802-97201iM100199809-200005

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9004101622

main90041-01622

9004170295

main90041-70295

9004179257

main90041-79257

9004179279

main90041-79279

9004201725

main90042-01725

9004201742

main90042-01742

9004201743

main90042-01743

9151281020

main91512-81020

9151281025

main91512-81025

9413061200

main94130-61200

24 parts on this diagram · 2 diagrams in section
