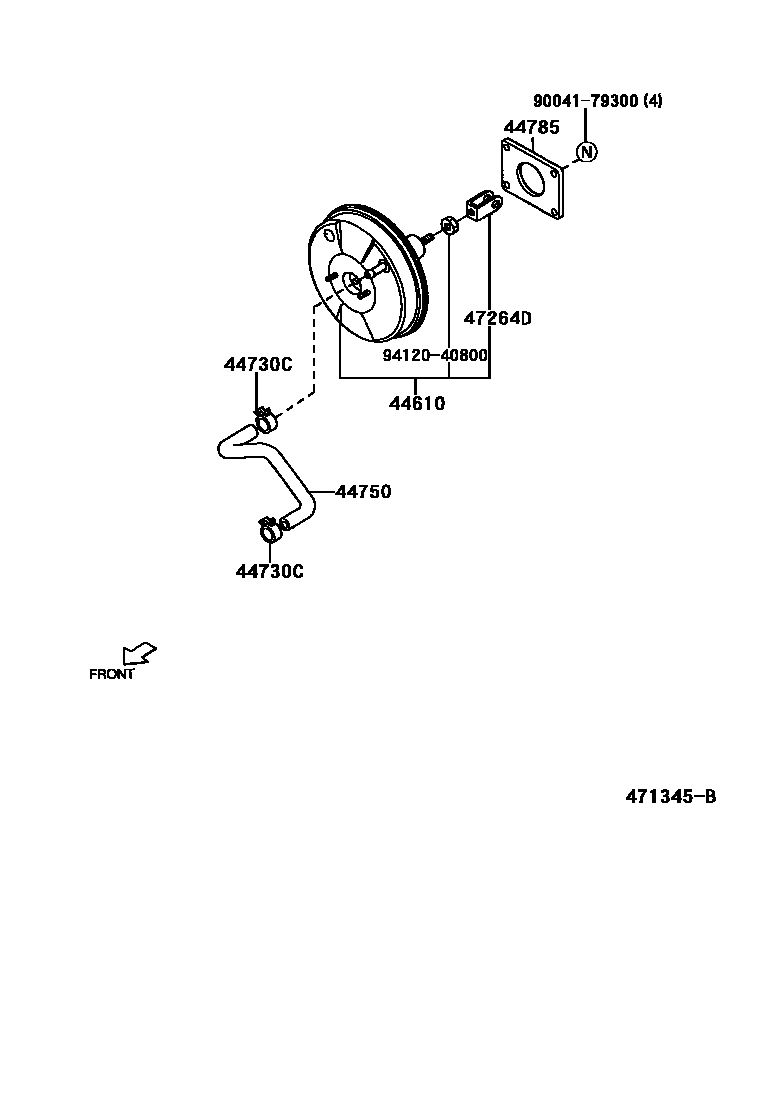

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-97203iM100,110..V199809

main44610-97204iM101..ATM200005

main44610-97207iM100,110..V; M101,111;M100,110..X199809-200112

44730CCLIP(FOR VACUUM HOSE)

main90044-67246×2iM10#,11#199809

44750HOSE ASSY, VACUUM

main44750-97201iM100,110199809

main44750-97401iM101,111200005

44785GASKET, BRAKE BOOSTER

main47278-87703iM10#,11#199809

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-87204iM10#,11#199809

9004179300

main90041-79300

9412040800

main94120-40800

7 parts on this diagram · 1 diagram in section
