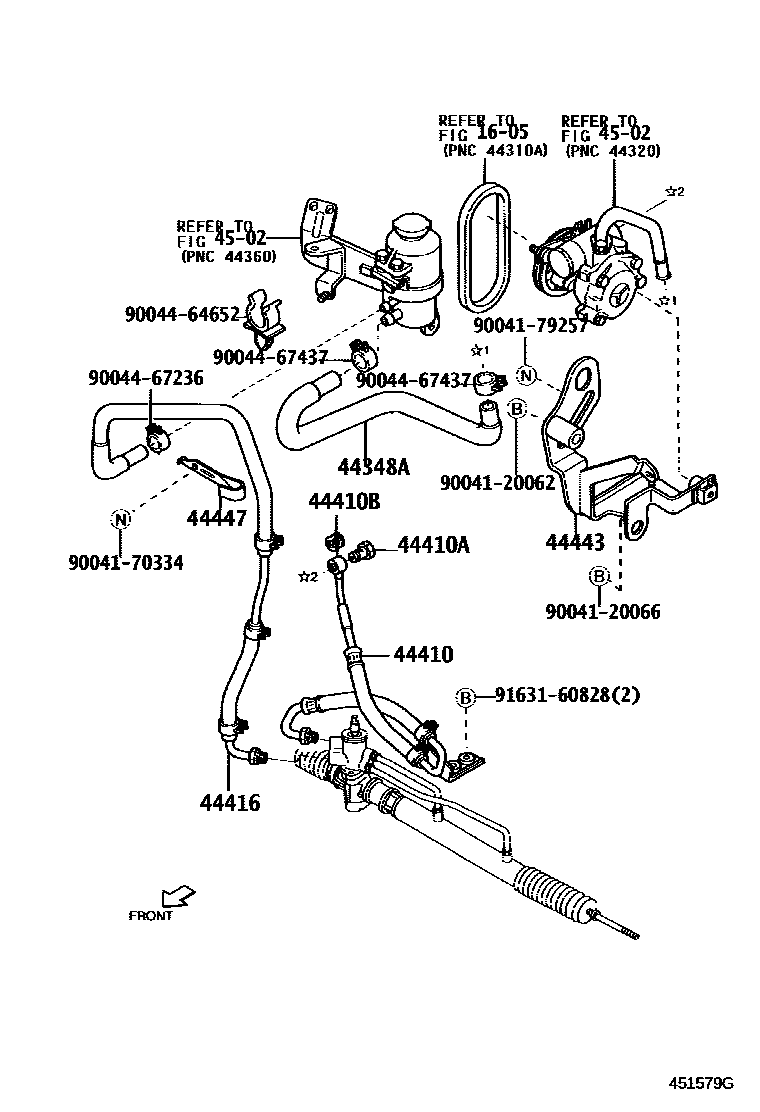

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-97201iM100,110199809

main44348-97401iM101,111200005

44410TUBE ASSY, PRESSURE FEED

main44411-97201iM110199809

main44411-97206iM100199809

main44411-97401iM101,111200005

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90044-01088iM10#,11#199809

44410BGASKET(FOR PRESSURE FEED TUBE)

main90044-30289iM10#,11#199809

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44412-97404iM101,111200008

main44430-97201iM100,110199809

main44430-97401iM101,111200005-200007

44443BRACKET, PUMP

main44443-97201iM100,110199809

44447BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT

main44447-97201iM100,110199809

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

9004120062

main90041-20062

9004120066

main90041-20066

9004170334

main90041-70334

9004179257

main90041-79257

9004464652

main90044-64652

9004467236

main90044-67236

9004467437

main90044-67437

9163160828

main91631-60828

17 parts on this diagram · 2 diagrams in section
