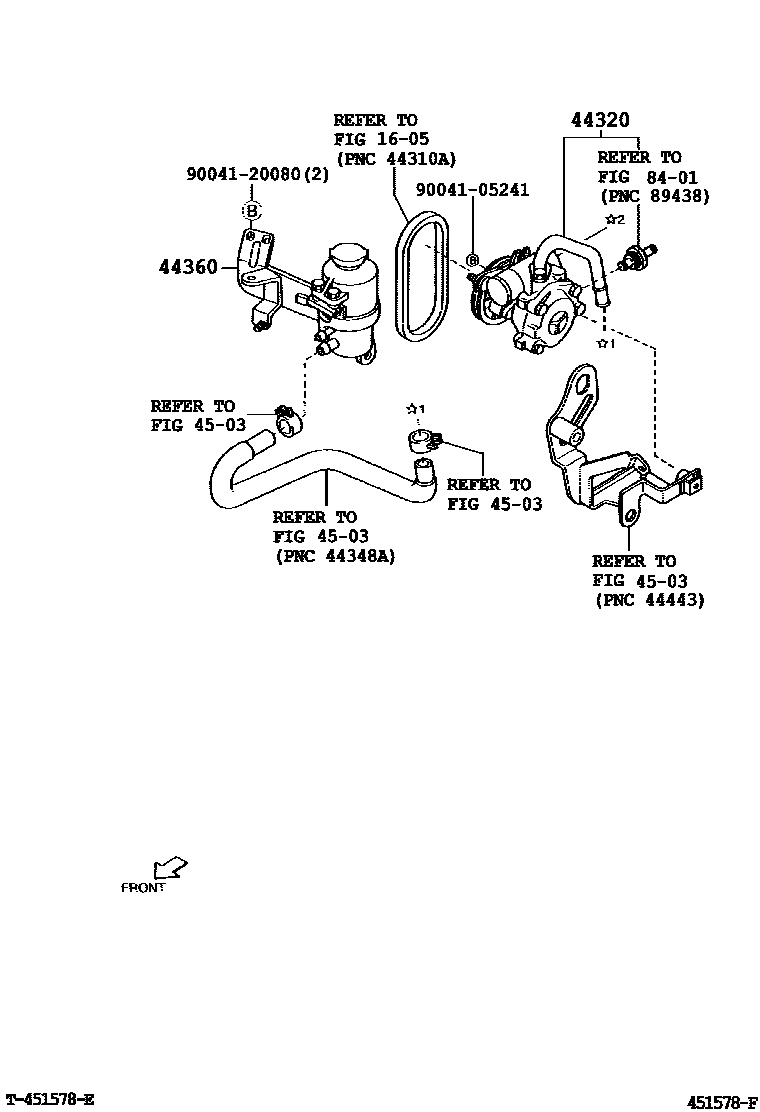

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44320PUMP ASSY, VANE

main44310-97201iM100,110199809

main44310-97401iM101,111200005

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-97201iM100,110199809

main44360-97401iM101,111200005

4503POWER STEERING TUBE

→ Go to FIG 45-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105241

main90041-05241

9004120080

main90041-20080

7 parts on this diagram · 2 diagrams in section
