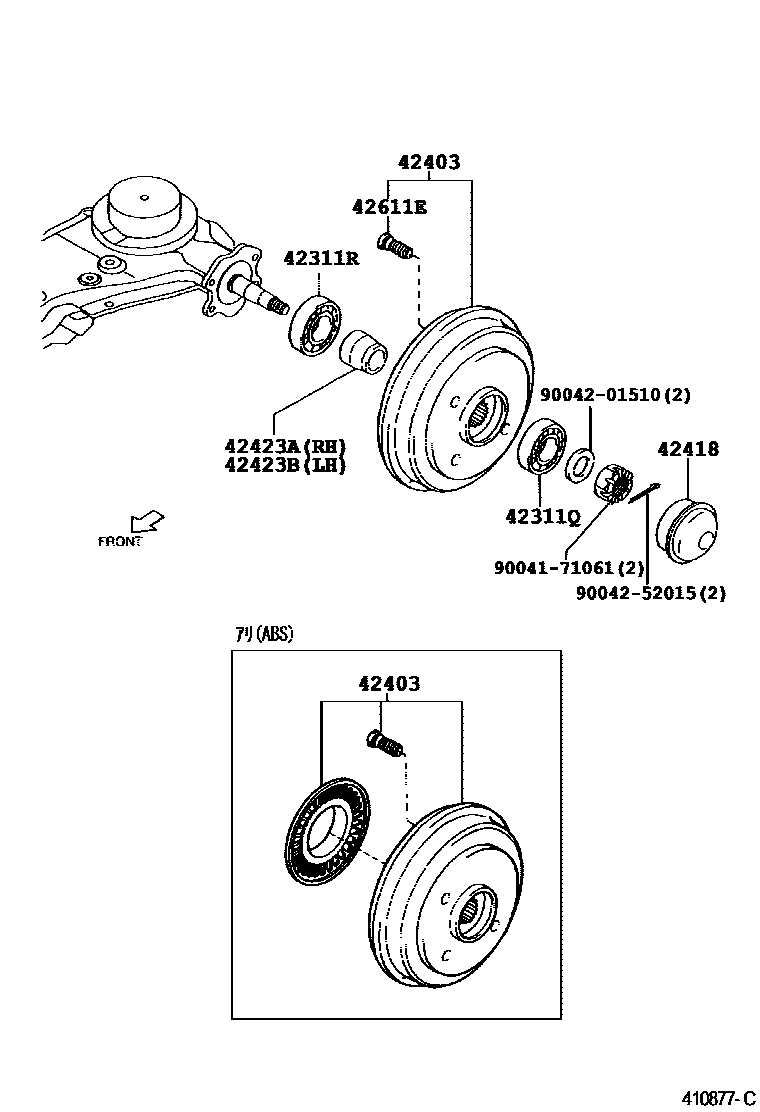

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90043-63256×2iM10#199809

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90043-63012×2iM10#199809

main90043-63249×2iM11#199809

42403DRUM SUB-ASSY, REAR BRAKE

main42403-97201×2iM100..V199809-200112

main42403-97202×2iM10#200112

main42403-97203×2iM110..V200112

main42403-97204×2iM110..V; M111;M110..X199809-200112

42418CAP, REAR HUB GREASE

main42441-97201×2iM10#199809

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42424-87206iM10#199809

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42424-87206iM10#199809

42611EBOLT, HUB (FOR REAR AXLE)

main90049-12043×8iM10#199809

main90049-12057×8iM11#199809

9004171061

main90041-71061

9004201510

main90042-01510

9004252015

main90042-52015

10 parts on this diagram · 2 diagrams in section
