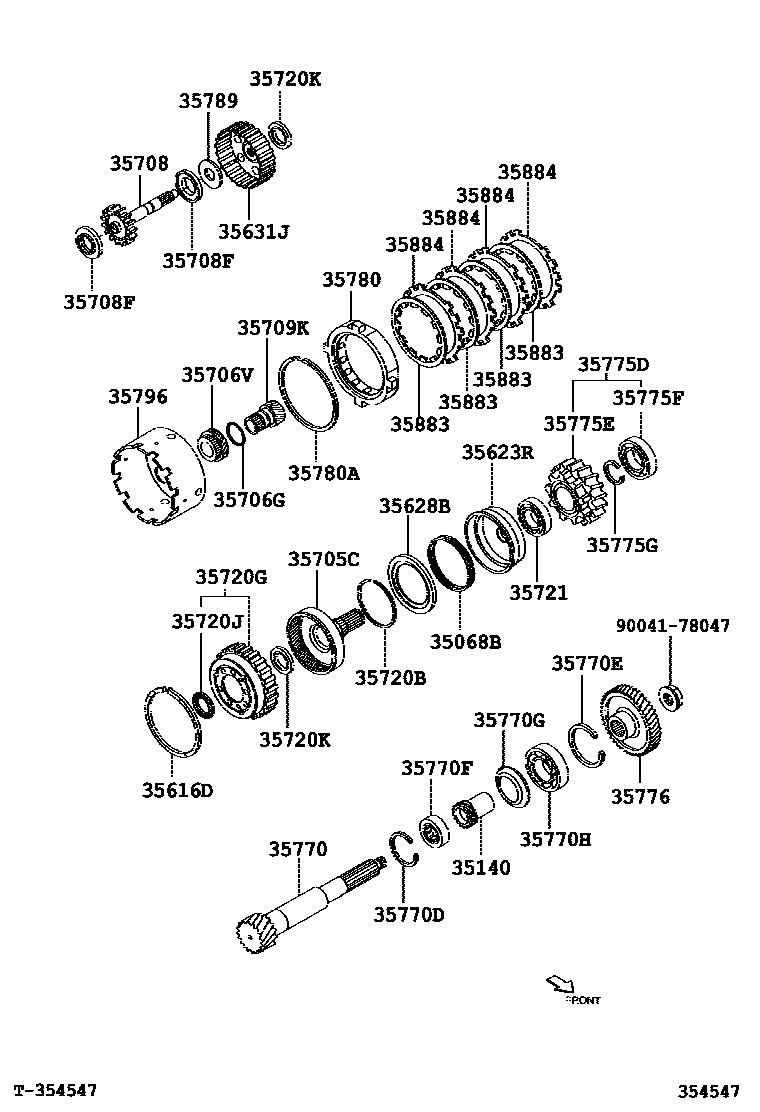

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35068BSPRING, 1ST & REVERSE BRAKE RITURN
35140GEAR ASSY, GOVERNOR DRIVE
35616DWASHER, CLUTCH DRUM THRUST
35628BSEAT, RIVERSE CLUTCH PISTON RETURN SPRING
35631JHUB, FORWARD CLUTCH, NO.1
35705CSHAFT SUB-ASSY, PLANETARY OUTPUT
35706GBEARING, THRUST (FOR SUN GEAR REAR)
35706VGEAR SUB ASSY, PLANETARY SUN
35708SHAFT SUB-ASSY, INTERMEDIATE
35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35709KGEAR SUB-ASSY, REAR PLANETARY
35720GEAR ASSY, FRONT PLANETARY
35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
35720GGEAR ASSY, PLANETARY
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
35721PINION, PLANETARY LONG
35770DRING, HOLE SNAP NO.1
35770ERING, HOLE SNAP NO.2
35770FBEARING, CYLINDRICAL ROLLER
35770GPLATE, OIL RESERVE
35770HBEARING, RADIAL BALL NO.2
35775DGEAR KIT, RIDUCTION DRIVE
35775EGEAR SUB-ASSY, RIDUCTION DRIVE
35775GRING, SHAFT SNAP NO.1
35776GEAR, PRIMARY REDUCTION DRIVEN
35780CLUTCH ASSY, 1 WAY NO.2
35780ARING, SNAP (FOR 1 WAY CLUTCH)
35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)
35796DRUM, SECOUND BRAKE
35883DISC, REVERSE CLUTCH
35884PLATE, REVERSE CLUTCH, NO.2
9004178047
main90041-78047
36 parts on this diagram · 3 diagrams in section
