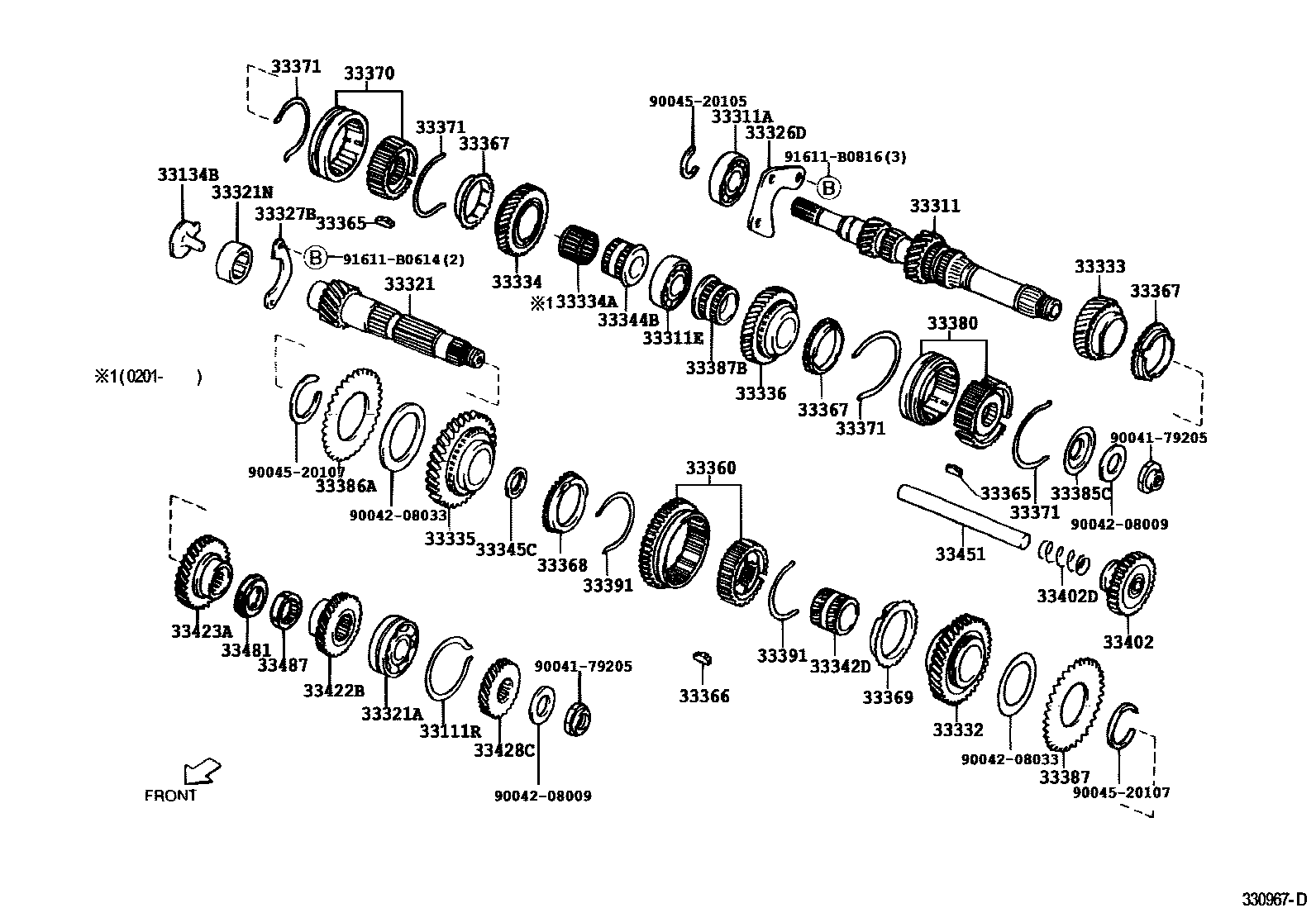

TRANSMISSION GEAR (MTM)

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90045-20183iM10#,11#..5F199809

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-87701iM10#,11#..5F199809

33311SHAFT, INPUT

main33311-87713iM101,11#..5F;M100..5F..LVVT199809

main33311-97202iM100..5F200005

33311ABEARING (FOR INPUT SHAFT FRONT)

main90043-63159iM101,111..5F200005

main90043-63251iM100,110..5F199809

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90043-63159iM101,111..5F200005

main90043-63251iM100,110..5F199809

33321SHAFT, OUTPUT

main33321-97208iM110..5F199809

main33321-97209iM10#,111..5F200005

main33321-97210iM100..5F199809-200005

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90043-63158iM100,110..5F199809

main90043-63160iM101,111..5F200005

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90043-64072iM10#,11#..5F199809

33326DPLATE, INPUT SHAFT BEARING LOCK

main33326-97201iM10#,11#..5F199809

33327BPLATE, OUTPUT SHAFT BEARING LOCK

main33327-87702iM10#,11#..5F199809

33332GEAR, 2ND

main33332-87710iM100,110..5F199809-200002

main33332-97202iM100..5F200005

main33332-97401iM101,11#..5F;M100..5F..LVVT200003

33333GEAR, 3RD

main33333-97201iM10#,11#..5F199809

33334GEAR, 4TH

main33334-87709iM101,111..5F200005

main33334-97201iM100,110..5F199809-199907

main33334-97203iM100,110..5F199908

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90043-64119iM101,111..5F..VS200201

33335GEAR, 1ST

main33335-87713iM101,111..5F200005

main33335-97203iM100..5F200005

main33335-97204iM110..5F;M100..5F..LVVT199809

33336GEAR, 5TH

main33336-97201iM100,110..5F199809-199907

main33336-97202iM10#,11#..5F199908

33342DBUSH(FOR 2ND GEAR)

main33342-87701iM10#,11#..5F199809

33344BBUSH, 4TH GEAR

main33344-87702iM100,110..5F;M101,111..5F..VS199809-200201

main33358-97201iM101,111..5F..VS200201

33345CWASHER, TRANSMISSION HUB

main33345-87702iM10#,11#..5F199809

33360HUB ASSY, SYNCHRONIZER, NO.1

main33360-97201iM10#,11#..5F199809

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-87702×6iM10#,11#..5F199809

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-87702×3iM10#,11#..5F199809

33367RING, SYNCHRONIZER, NO.1

main33367-87707×3iM10#,11#..5F199809

33368RING, SYNCHRONIZER, NO.2

main33368-87702iM10#,11#..5F199809

33369RING, SYNCHRONIZER, NO.3

main33369-87703iM10#,11#..5F199809

33370HUB ASSY, SYNCHRONIZER, NO.2

main33370-97201iM10#,11#..5F199809

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-87701×4iM10#,11#..5F199809

33380HUB ASSY, SYNCHRONIZER, NO.3

main33380-97201iM10#,11#..5F199809

33385CSTOPPER, HUB SLEEVE

main33385-87702iM10#,11#..5F199809

33386ASUB-GEAR, 1ST

main33386-97201iM110..5F;M100..5F..LVVT199809

main33386-97202iM100..5F200005

33387SUB-GEAR, NO.2

main33387-87702iM101,11#..5F;M100..5F..LVVT199809

main33387-97201iM100..5F200005

33387BBUSH, 5TH GEAR

main33344-87702iM10#,11#..5F199809

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-87701×2iM10#,11#..5F199809

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-97201iM10#,11#..5F199809

33402DSPRING(FOR REVERSE IDLER GEAR)

main90045-01414iM10#,11#..5F199809

33422BGEAR, 4TH DRIVEN

main33338-87702iM101,111..5F200005

main33338-87703iM100,110..5F199809

33423AGEAR, 3RD DRIVEN

main33337-87703iM10#,11#..5F199809

33428CGEAR, 5TH DRIVEN

main33428-87704iM10#,11#..5F199809

33451SHAFT, REVERSE IDLER GEAR

main33451-97201iM10#,11#..5F199809

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-87712iM10#,111..5F200005

main33481-97204iM100..5F199809-200005

main33481-97205iM110..5F199809

33487HUB, SPEEDOMETER DRIVE GEAR

main33487-97201iM10#,11#..5F199809

9004179205

main90041-79205

9004208009

main90042-08009

9004208033

main90042-08033

9004520105

main90045-20105

9004520107

main90045-20107

91611B0614

main91611-B0614

91611B0816

main91611-B0816

48 parts on this diagram · 1 diagram in section
