V-BELT

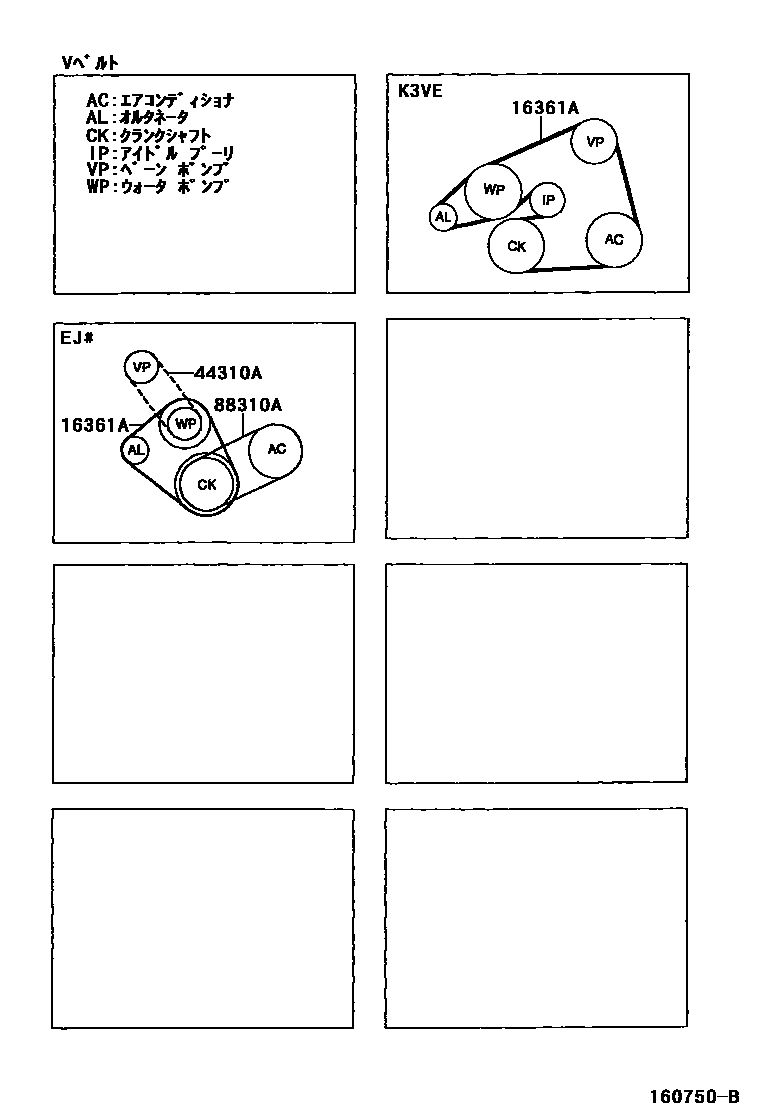

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90048-31020i199809

main90048-31029i200005-200405

main90048-31052i200406

44310ABELT, V(FOR VANE PUMP)

main44318-97201i199809

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90048-32119i200112

main99331-50706i199809-200112

3 parts on this diagram · 1 diagram in section
