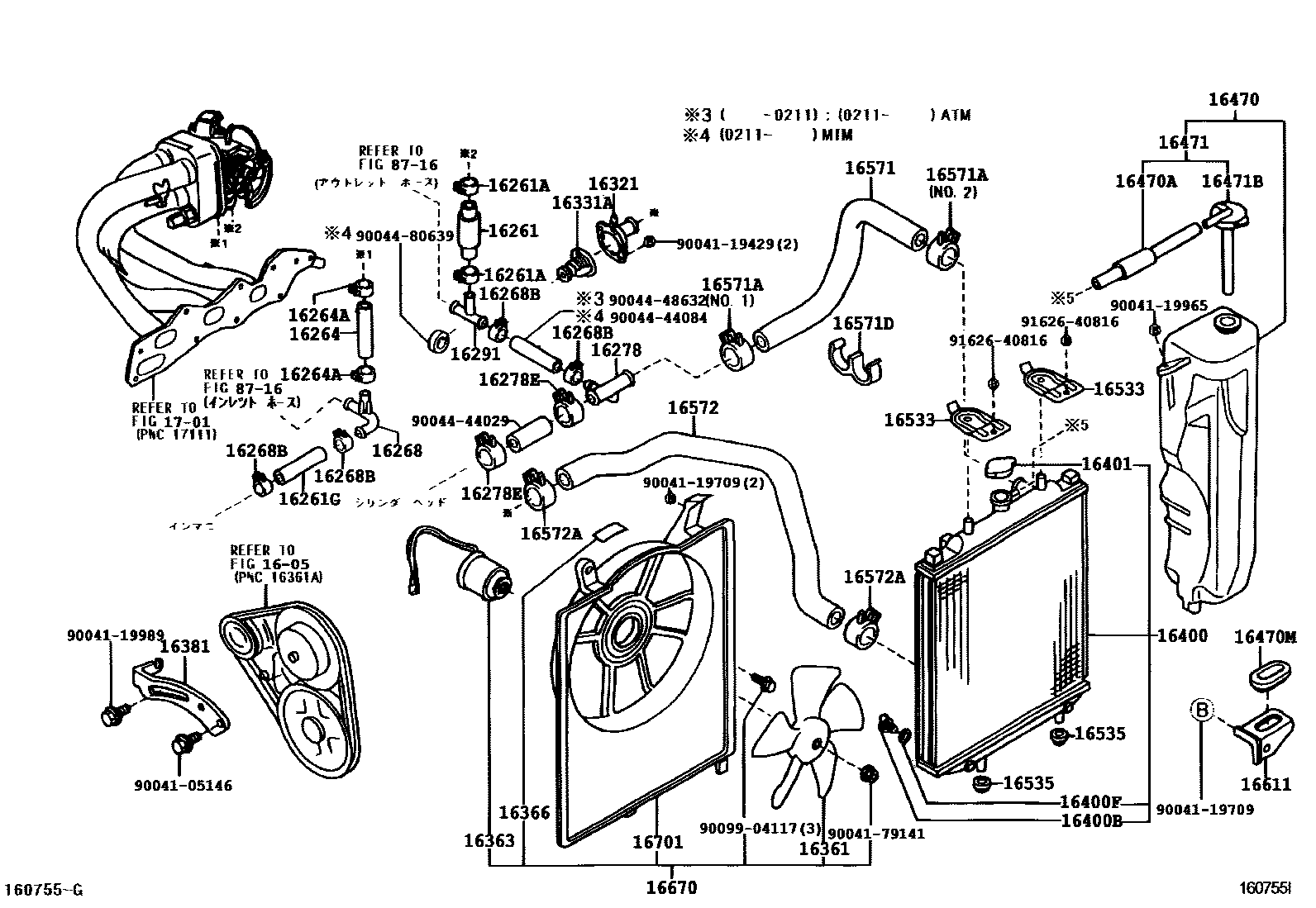

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-97401iK3VE..M101,111200005

main16337-87209iEJ#..M100,110199809

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-67301×2iK3VE,EJ#..M10#,11#199809

16261GHOSE, WATER BY-PASS, NO.1

main16337-97206iEJ#..M100,110200002

main16337-97403iK3VE..M101,111200005

main99556-20301iEJDE..M100,110199809-200002

16264HOSE, WATER BY-PASS, NO.2

main16337-97201iEJ#..M100,110199809

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90044-67301×2iEJ#..M100,110199809

16268PIPE, WATER BY-PASS, NO.1

main16291-97211iEJVE..M100,110200208-200209

main16291-97213iEJVE..M100,110200210

main90044-13070×2iK3VE..M101,111200005

main90044-13084iEJ#..M100,110199809-200207

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main90044-66009×4iEJVE..M100,110200307

main90044-67322×4iEJ#..M100,110199809-200209

main90044-67435×4iEJVE..M100,110200210-200306

16278PIPE, WATER BY-PASS, NO.2

main90044-13085iEJ#..M100,110199809

main90044-13089iK3VE..M101,111200005-200403

main90044-13100iK3VE..M101,111200404

16278ECLIP(FOR WATER BY-PASS HOSE)

main90044-67189iK3VE..M101,111200005-200010

main90044-67332×2iEJ#..M100,110199809-200009

main90044-67468iK3VE..M101,111200005-200010

main90044-67486×2iEJVE..M100,110200010

16291JOINT, WATER HOSE

main16291-87202iEJ#..M100,110199809-200010

main16291-97206iEJVE..M100,110200011-200209

main16291-97214iEJVE..M100,110200210

16321INLET, WATER

main16321-87210iEJ#..M100,110199809-200011

main16321-97207iEJVE..M100,110200012

main16321-97401iK3VE..M101,111200005

16331ATHERMOSTAT

main90048-33078iEJ#..M100,110199809-200112

main90048-33088iK3VE..M101,111200005

main90048-33092iEJVE..M100,110200112

16361FAN

main16690-97201iK3VE,EJ#..M10#,11#199809

16363MOTOR, COOLING FAN

main16680-97201iK3VE,EJ#..M10#,11#199809

16366LABEL, RADIATOR CAUTION

main16366-97201iK3VE,EJ#..M10#,11#199809

16381BAR, FAN BELT ADJUSTING

main16381-87214iEJ#..M100,110199809

16400RADIATOR ASSY

main16400-97215iEJ#..M100,110..5F199809

main16400-97216iEJ#..M100,110..4AT199809

main16400-97401iK3VE..M101,111..ATM200005

main16400-97402iK3VE..M101,111..5F200005

16400BPLUG, RADIATOR DRAIN COCK

main16185-87502iEJ#..M100,110..4AT199809

main23322-87101iK3VE..M101,111;EJ#..M100,110..5F199809

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-87101iEJDE..M100,110..5F199809-199904

main16442-97201iK3VE..M101,111;EJ#..M100,110..5F199904

main90044-30162iEJ#..M100,110..4AT199809

16401CAP SUB-ASSY, RADIATOR

main16401-97202iK3VE..M101,111;EJ#..M100,110..5F199809

main16401-97203iEJ#..M100,110..4AT199809

16470TANK ASSY, RADIATOR RESERVE

main16470-97201iK3VE,EJ#..M10#,11#199809

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-97201iK3VE,EJ#..M10#,11#199809

16470MGROMMET

main16464-97201iK3VE,EJ#..M10#,11#199809

16471CAP SUB-ASSY, RESERVE TANK

main16503-97201iK3VE,EJ#..M10#,11#199809

16471BCAP, RESERVE TANK

main16471-97201iK3VE,EJ#..M10#,11#199809

16533SUPPORT, RADIATOR, UPPER

main16582-97201×2iEJ#..M100,110199809

main16582-97202×2iK3VE..M101,111200005

16535SUPPORT, RADIATOR, LOWER

main16535-97201×2iK3VE,EJ#..M10#,11#199809

16571HOSE, RADIATOR, INLET

main16571-97201iEJ#..M100,110199809

main16571-97401iK3VE..M101,111200005

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90044-67189×2iK3VE..M101,111200005

main90044-67247iEJ#..M100,110199809-200010

main90044-67332iEJ#..M100,110199809-200010

main90044-67387iEJVE..M100,110200011

main90044-67486iEJVE..M100,110200011-200109

main90044-67493iEJVE..M100,110200110

16571DCLIP, RADIATOR HOSE, NO.1

main90044-64675iEJ#..M100,110199809

16572HOSE, RADIATOR, OUTLET

main16572-97201iEJ#..M100,110199809

main16572-97401iK3VE..M101,111200005

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90044-67189×2iK3VE..M101,111200005

main90044-67332×2iEJ#..M100,110199809-200010

main90044-67486×2iEJVE..M100,110200011-200109

main90044-67493×2iEJVE..M100,110200110

16611BRACKET, RADIATOR RESERVE TANK

main16611-97201iK3VE,EJ#..M10#,11#199809

16670MOTER ASSY, FAN W/SHROUD

main16670-97204iEJ#..M100,110199809

main16670-97401iK3VE..M101,111200005

16701SHROUD SUB-ASSY, FAN

main16700-97204iEJ#..M100,110199809

main16700-97403iK3VE..M101,111200005

1701MANIFOLD

→ Go to FIG 17-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9004105146

main90041-05146

9004119429

main90041-19429

9004119709

main90041-19709

9004119965

main90041-19965

9004119989

main90041-19989

9004179141

main90041-79141

9004444029

main90044-44029

9004444084

main90044-44084

9004448632

main90044-48632

9004480639

main90044-80639

9009904117

main90099-04117

9162640816

main91626-40816

50 parts on this diagram · 3 diagrams in section
