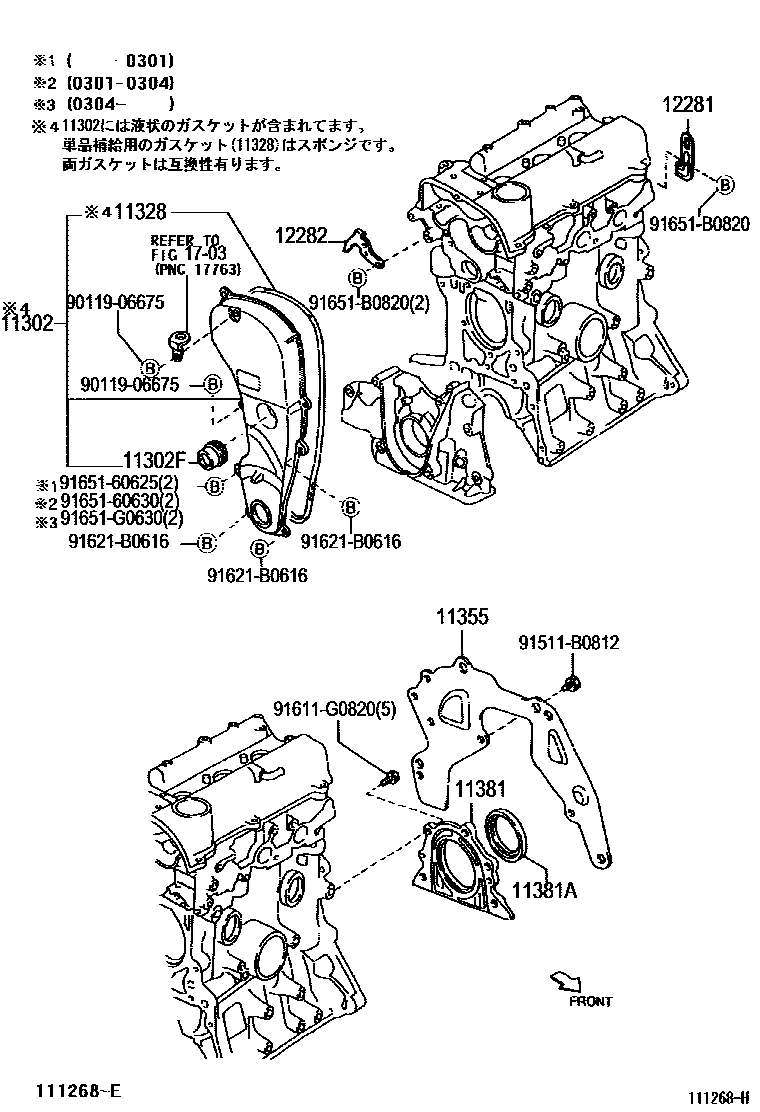

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-97203iEJ#..M100,110199809

main11310-97401iK3VE..M101,111200005-200205

main11310-97402iK3VE..M101,111200206-200207

main11310-97403iK3VE..M101,111200208-200210

main11310-97404iK3VE..M101,111200211-200307

main11310-97405iK3VE..M101,111200307

11302FBUSH(FOR TIMING GEAR COVER)

main90044-80593iEJ#..M100,110199809

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-87209iEJ#..M100,110199809

main11328-97401iK3VE..M101,111200005

11355PLATE, REAR END

main11355-97202iEJ#..M100,110..5F199809

main11355-97203iEJ#..M100,110..4AT199809

main11355-97401iK3VE..M101,111200005

11381RETAINER, ENGINE REAR OIL SEAL

main11381-87206iEJ#..M100,110199809

main11381-97401iK3VE..M101,111200005

11381ASEAL, ENGINE REAR OIL

main90043-11283iEJDE..M100,110199809-200005

main90043-11292iK3VE..M101,111200005

main90043-11323iEJVE..M100,110200005

12281HANGER, ENGINE, NO.1

main12281-87214iEJ#..M100,110199809

main12281-97401iK3VE..M101,111200005

12282HANGER, ENGINE, NO.2

main12282-87215iEJ#..M100,110199809

main12282-97403iK3VE..M101,111200005

1703AIR CLEANER

→ Go to FIG 17-03

9011906675

main90119-06675

91511B0812

main91511-B0812

91611G0820

main91611-G0820

91621B0616

main91621-B0616

9165160625

main91651-60625

9165160630

main91651-60630

91651B0820

main91651-B0820

91651G0630

main91651-G0630

17 parts on this diagram · 3 diagrams in section
