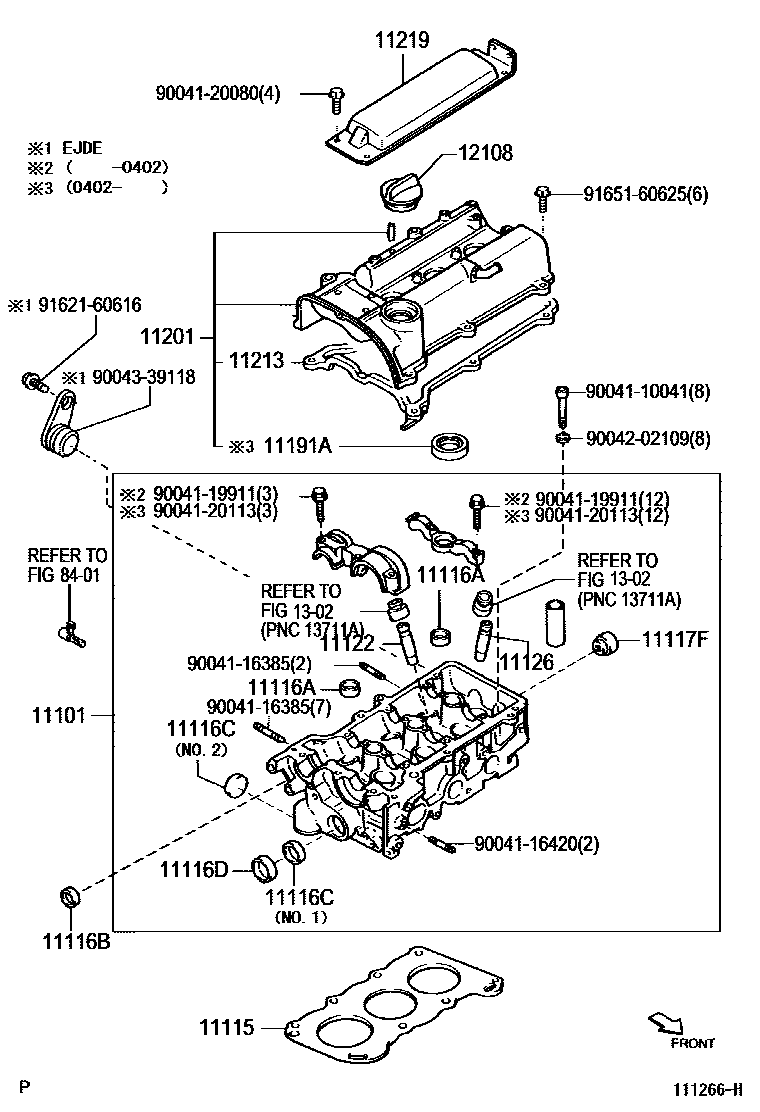

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116DPLUG, TIGHT, NO.4
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11219COVER, CYLINDER HEAD, NO.3
12108CAP SUB-ASSY, OIL FILLER
1302CAMSHAFT & VALVE
8401SWITCH & RELAY & COMPUTER
9004110041
main90041-10041
9004116385
main90041-16385
9004116420
main90041-16420
9004119911
main90041-19911
9004120080
main90041-20080
9004120113
main90041-20113
9004202109
main90042-02109
9004339118
main90043-39118
9162160616
main91621-60616
9165160625
main91651-60625
26 parts on this diagram · 2 diagrams in section
