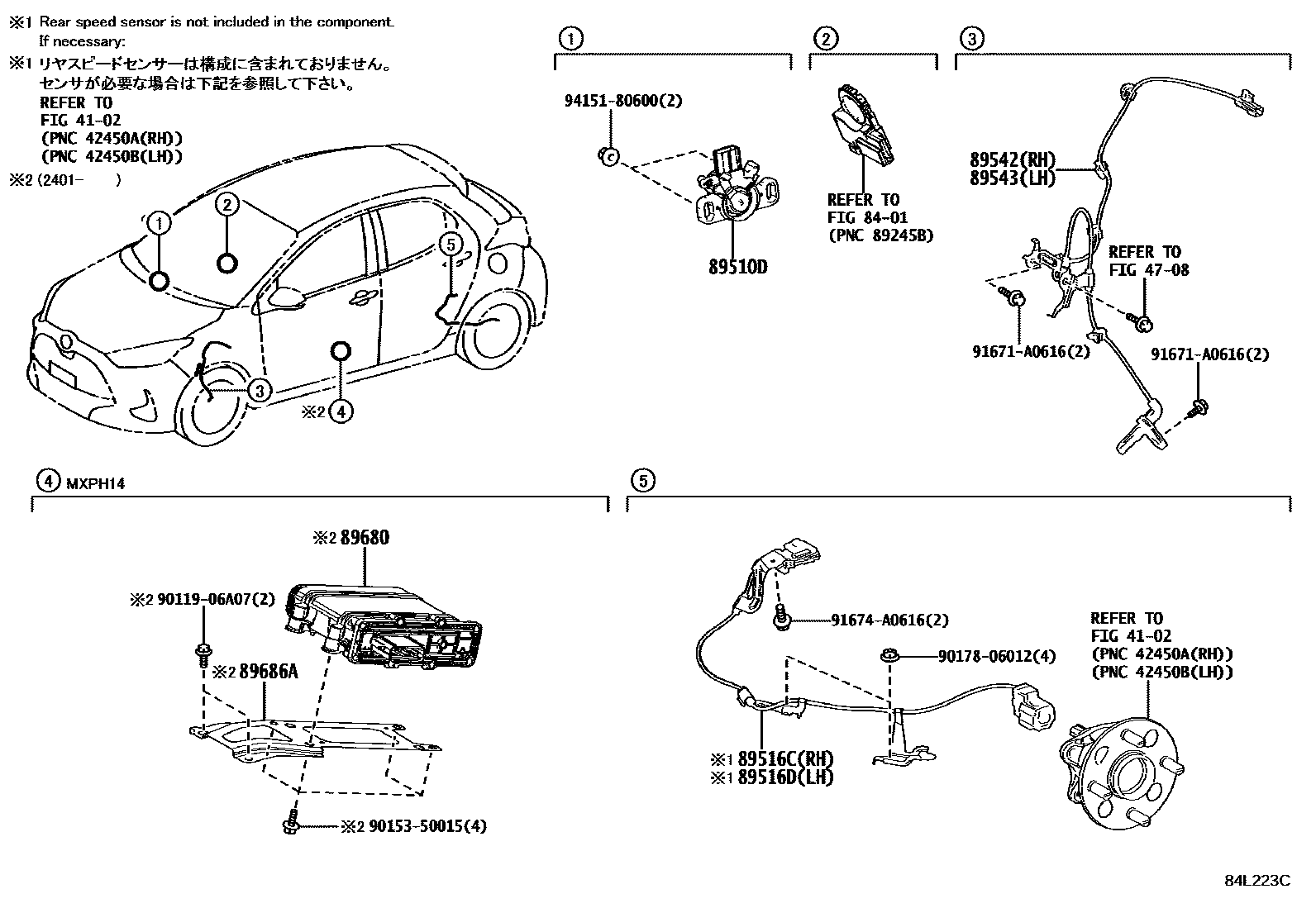

ABS & VSC

0001 1 0003 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iMXPH14,17202401

main89510-47030iMXPH10,15202002

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-K0011iKSP210,MXPA10202002-202401

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-K0021iKSP210,MXPA10202002-202401

89542SENSOR, SPEED, FRONT RH

main89542-K0011iKSP210,MXPA1#202002-202401

89543SENSOR, SPEED, FRONT LH

main89543-K0011iMXPH10,15202002

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iMXPH14,17202401

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-52020iMXPH14,17202401

9011906A07

main90119-06A07

9015350015

main90153-50015

9017806012

main90178-06012

91671A0616

main91671-A0616

91674A0616

main91674-A0616

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
