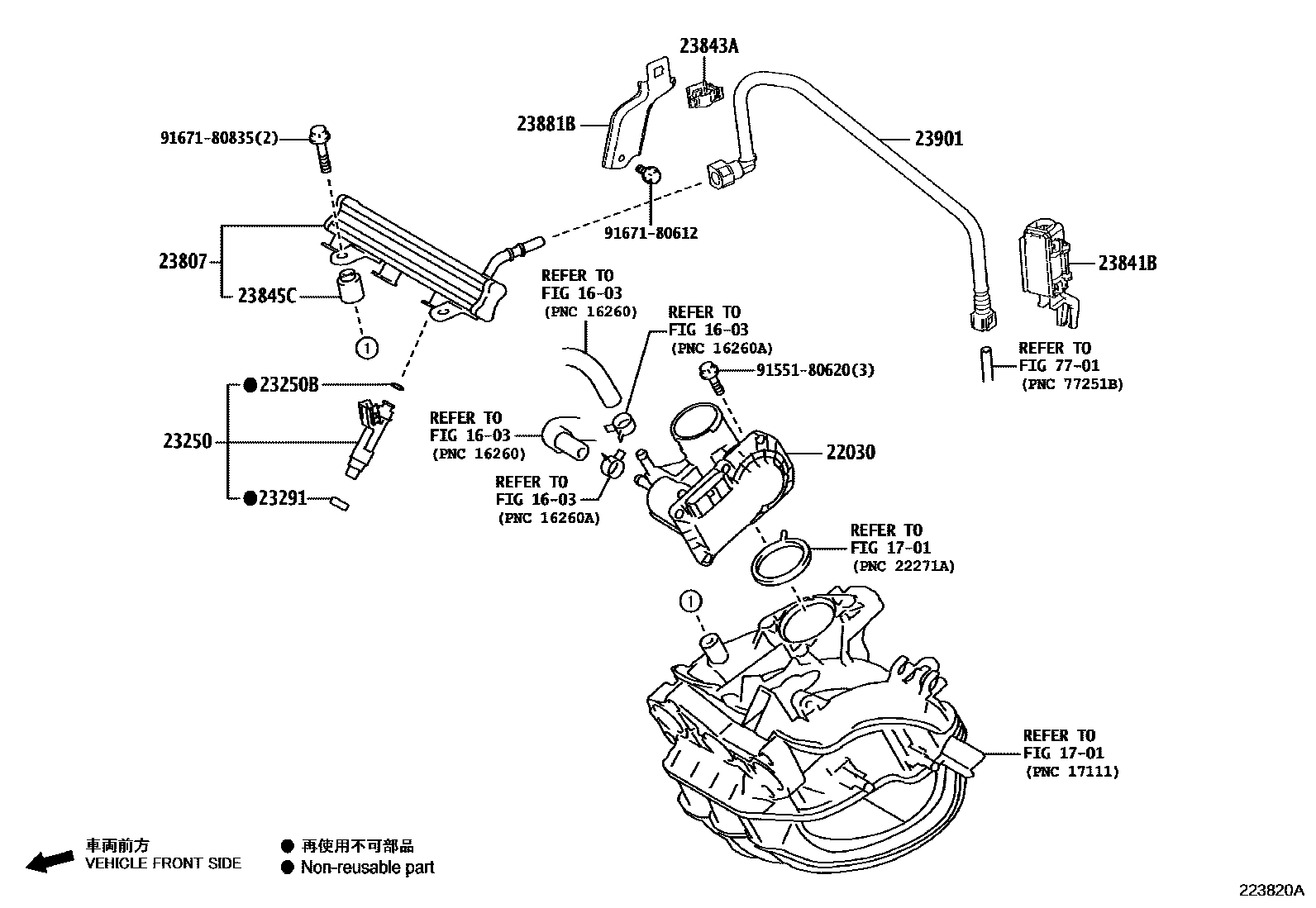

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-15010iM15AFKS..MXPA1#202002-202401

main22030-40020i1KRFE..KSP210202002-202401

23250INJECTOR ASSY, FUEL

main23209-19025×3iM15AFXE..MXPH14,17202401

main23209-24010-01×3iM15AFKS..MXPA1#202401

main23209-24010-02×3iM15AFKS..MXPA1#202401

main23209-24010-03×3iM15AFKS..MXPA1#202002-202401

main23209-24010-04×3iM15AFKS..MXPA1#202401

main23209-24010-05×3iM15AFKS..MXPA1#202002-202401

main23209-24010-06×3iM15AFKS..MXPA1#202401

main23209-24010-07×3iM15AFKS..MXPA1#202002-202401

main23209-24010-08×3iM15AFKS..MXPA1#202002-202401

main23209-24010-09×3iM15AFKS..MXPA1#202401

main23209-49255×3i1KRFE..KSP210202002-202401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×3i1KRFE..KSP210202002-202401

main90301-07037×3iM15AFXE..MXPH10,15202002

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×3iM15AFXE..MXPH10,15202002

main23291-87701×3i1KRFE..KSP210202401

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-40040i1KRFE..KSP210202401

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-15030i1KRFE..KSP210; M15#..MXPA1#,MXPH1#202002-202312

main23841-15050i1KRFE..KSP210202312-202401

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-28010i1KRFE..KSP210202401

23845CINSULATOR, FUEL PIPE

main23845-40010×2i1KRFE..KSP210202002-202401

23881BBRACKET, FUEL HOSE

main23881-40020i1KRFE..KSP210202002-202401

23901TUBE SUB-ASSY, FUEL

main23901-15050iM15AFKS..MXPA1#202002-202401

main23901-15060iM15AFXE..MXPH10,15202002-202208

main23901-15070iM15AFXE..MXPH10,15202208

main23901-15100iM15AFKS..MXPA1#202401

main23901-15120iM15AFXE..MXPH14,17202401

main23901-40080i1KRFE..KSP210202002-202401

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180620

main91551-80620

9167180612

main91671-80612

9167180835

main91671-80835

16 parts on this diagram · 4 diagrams in section
