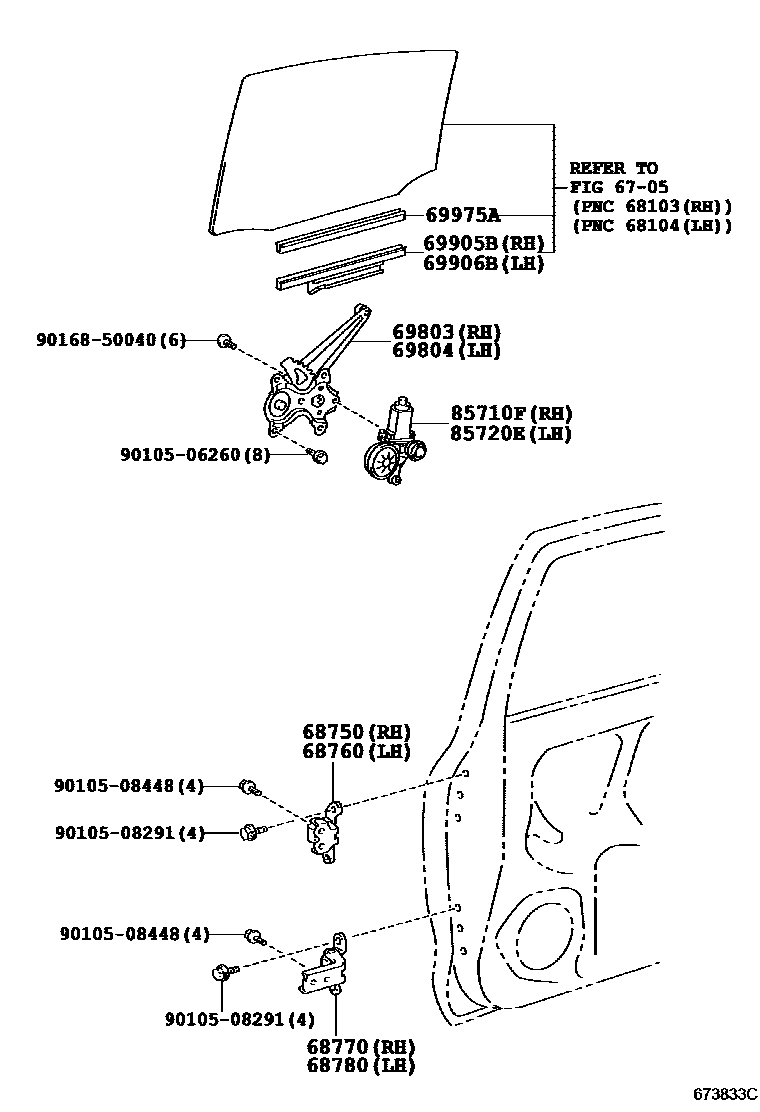

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iKSP90,NCP9#,SCP90200501-200609

main68750-20121iKSP90,NCP9#,SCP90200610-200708

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iKSP90,NCP9#,SCP90200501-200609

main68760-20121iKSP90,NCP9#,SCP90200610-200708

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iKSP90,NCP9#,SCP90200501-200609

main68770-52031iKSP90,NCP9#,SCP90200610-200708

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iKSP90,NCP9#,SCP90200501-200609

main68780-52031iKSP90,NCP9#,SCP90200610-200708

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52080iKSP90,NCP9#,SCP90200501-200708

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52090iKSP90,NCP9#,SCP90200501-200708

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52050iKSP90,NCP9#,SCP90200501-200708

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52050iKSP90,NCP9#,SCP90200501-200708

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iKSP90,NCP9#,SCP90200501-200708

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iKSP90,NCP9#,SCP90200501-200708

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iKSP90,NCP9#,SCP90200501-200708

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
