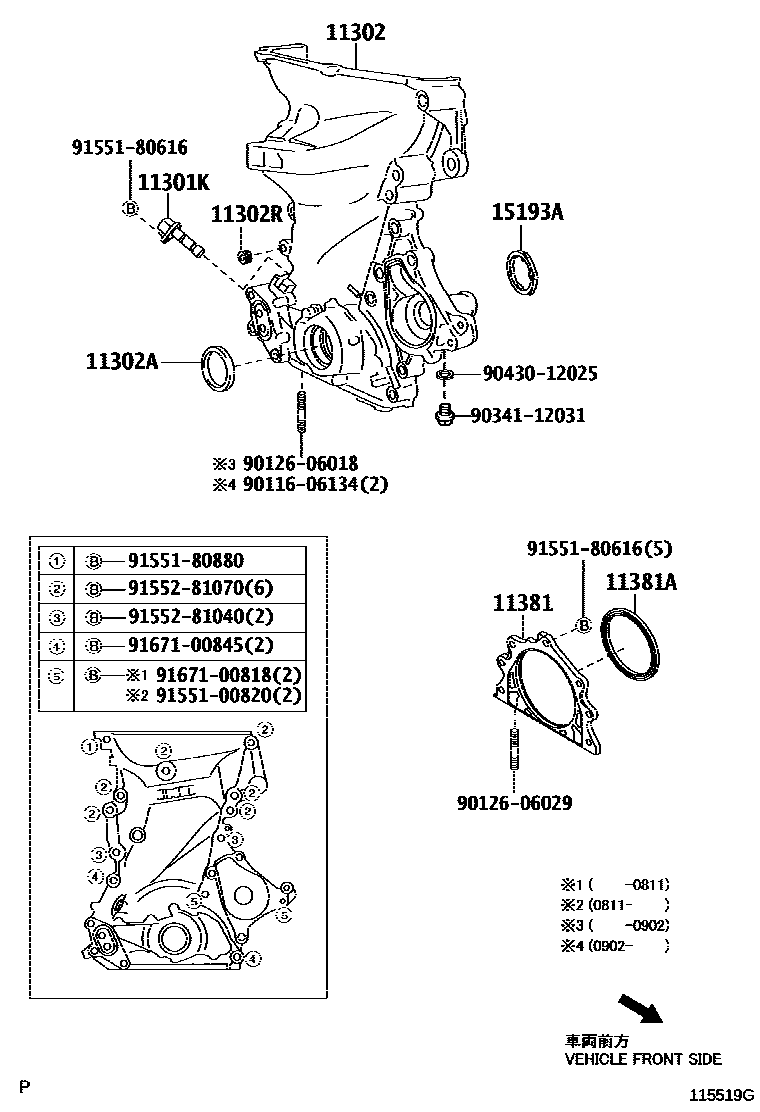

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301KSENSOR, CRANK POSITION

main90919-05043i2SZFE..SCP90..RS200708-200809

main90919-05062i1KRFE..KSP90200708-200808

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-23052i2SZFE..SCP90200501-200708

main11310-23053i2SZFE..SCP90..F,ILL,U200803-200808

main11310-40030i1KRFE..KSP90200501-200504

main11310-40040i1KRFE..KSP90200708-200808

main11310-40041i1KRFE..KSP90200902-201012

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-35040i2SZFE..SCP90200501-200708

main90311-38091i1KRFE..KSP90200501-200708

main90311-38092i1KRFE..KSP90200908-201012

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KSP90200501-200708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-23011i2SZFE..SCP90..F,ILL,U200708-200808

main11381-40010i1KRFE..KSP90200808-201012

11381ASEAL, ENGINE REAR OIL

main90311-73002i1KRFE..KSP90200501-200708

main90311-73003i2SZFE..SCP90200605-200708

main90311-73004i1KRFE..KSP90200908-201012

15193AGASKET, OIL PUMP

main15193-40010i1KRFE..KSP90200501-200708

9011606134

main90116-06134

9012606018

main90126-06018

9012606029

main90126-06029

9034112031

main90341-12031

9043012025

main90430-12025

9155100820

main91551-00820

9155180616

main91551-80616

9155180880

main91551-80880

9155281040

main91552-81040

9155281070

main91552-81070

9167100818

main91671-00818

9167100845

main91671-00845

19 parts on this diagram · 2 diagrams in section
