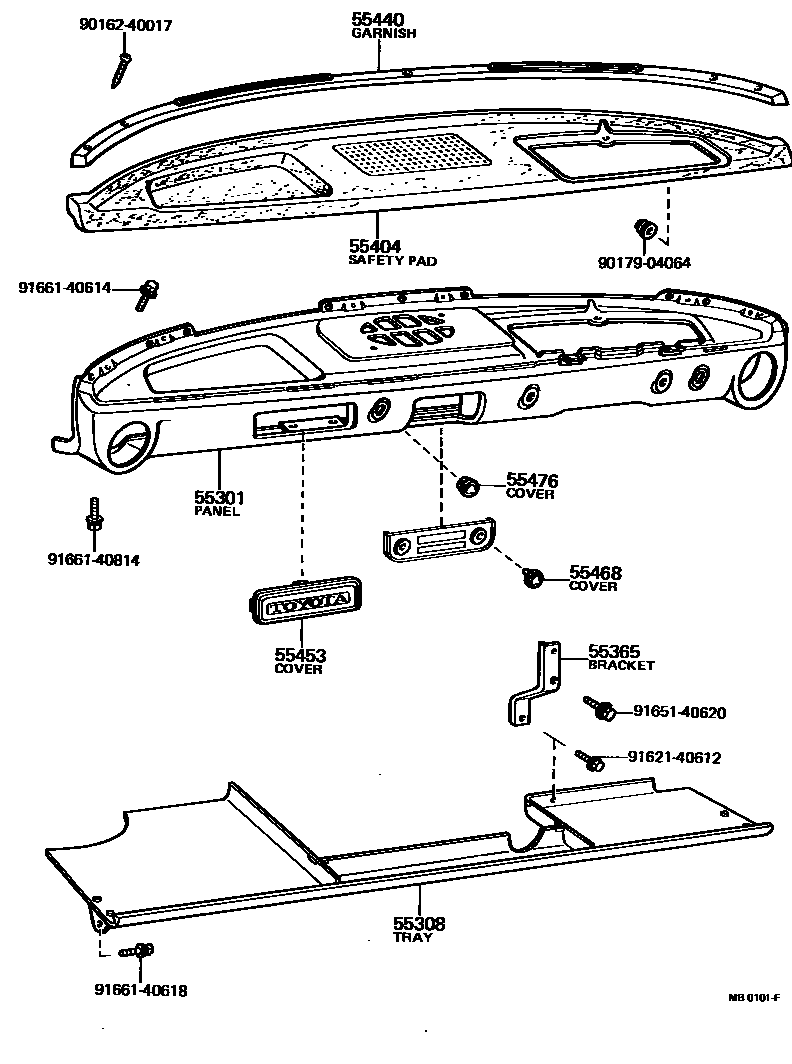

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-10070iKP3#,UP3#196904-197010

main55301-10071iKP3#,UP3#197010-197112

main55301-10072iKP3#,50197201-198808

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55308-10010iKP3#,UP3#196904-197010

main55308-10012iKP3#,UP3#197010-197112

main55308-10013iKP3#,50..DLX,HDX,XL197511-198808

55365BRACKET, INSTRUMENT PANEL UNDER TRAY

main55365-10010iKP3#,UP3#196904-197010

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-10030iKP3#,UP3#196904-197010

main55404-10031iKP3#,UP3#197010-197112

main55404-10050iKP30,31..HDX,S,SR,ST,XL197201-197511

55440GARNISH, INSTRUMENT PANEL, CENTER

main55443-10020iKP3#,50,UP3#197010-198808

main55444-10020iKP3#,UP3#196904-197010

55453COVER, RADIO TUNER OPENING

main55463-10020iKP3#,UP3#..STD196904-197010

main55463-10021iKP3#,UP3#..SR,STD197010-197112

55468COVER, HEATER SWITCH HOLE

main55468-10020iKP3#,UP3#..STD196904-197010

main55468-10021iKP30,31,36,UP3#..S,STD197010-197503

55476COVER, CIGARETTE LIGHTER HOLE

main55476-20021iKP3#,UP3#..STD196904-197010

main55477-10010iKP30,31,36,UP3#..S,STD197010-197511

9016240017

main90162-40017

9017904064

main90179-04064

9162140612

main91621-40612

9165140620

main91651-40620

9166140614

main91661-40614

9166140618

main91661-40618

9166140814

main91661-40814

15 parts on this diagram · 2 diagrams in section
