FLOOR INSULATOR

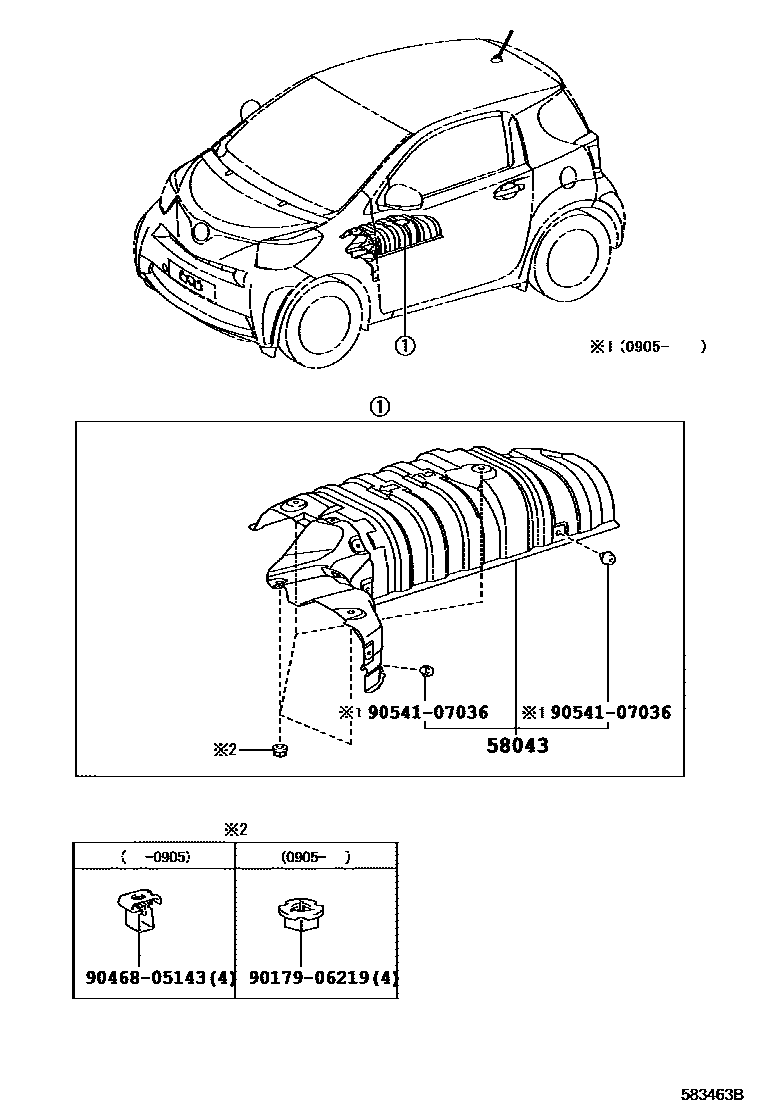

Parts diagram

58043INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR

main58043-74010i200811-200904

main58043-74011i200905

9017906219

main90179-06219

9046805143

main90468-05143

9054107036

main90541-07036

4 parts on this diagram · 1 diagram in section
