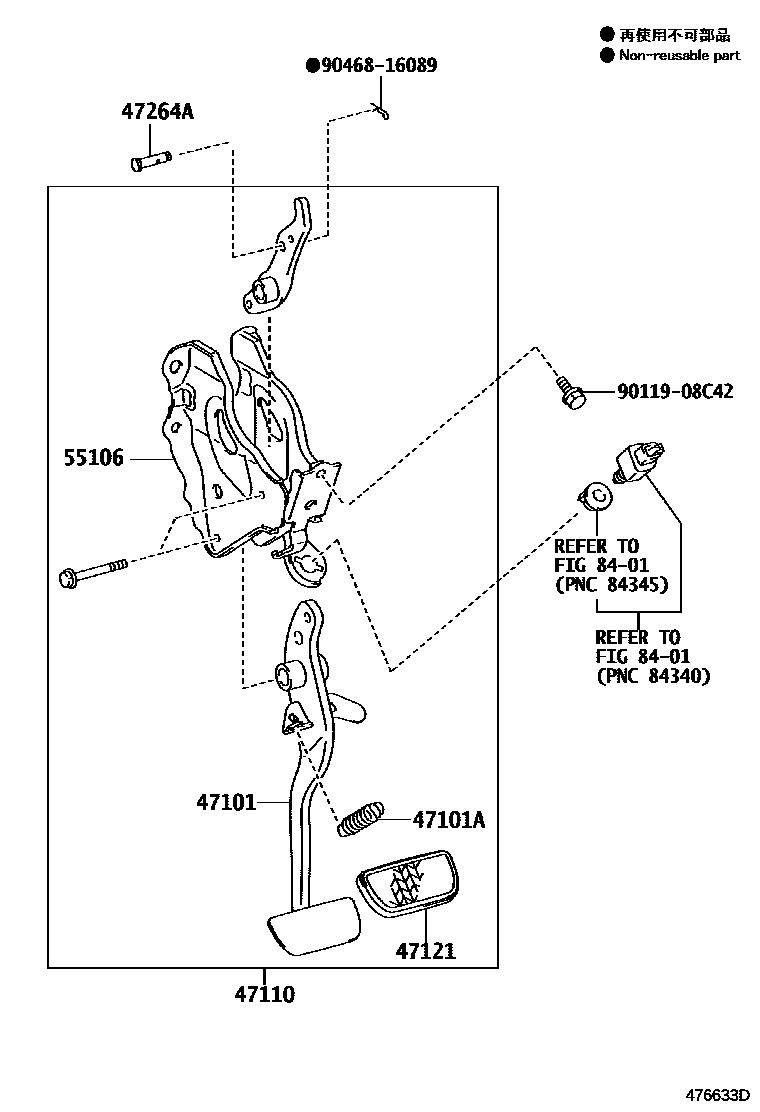

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-74040iKGJ10,NGJ10200811-200909

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20033iKGJ10200811-200908

47110SUPPORT ASSY, BRAKE PEDAL

main47110-74031iNGJ10..6F201011-201112

main47110-74032iNGJ10..6F201201

main47110-74040iKGJ10,NGJ10200811-200909

main47110-74041iKGJ10,NGJ10..CVFC200909-201112

main47110-74042iKGJ10,NGJ10..CVFC201201

47121PAD, BRAKE PEDAL

main31321-52010iNGJ10..6F201011-201503

main31321-52020iNGJ10..6F201504

main47121-52010iKGJ10,NGJ10..CVFC200811-201503

main47121-52020iKGJ10,NGJ10..CVFC201504

47264APIN(FOR PUSH ROD)

main90249-08256iKGJ10,NGJ10200811

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-74010iKGJ10,NGJ10200811-200909

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9046816089

main90468-16089

9 parts on this diagram · 2 diagrams in section
