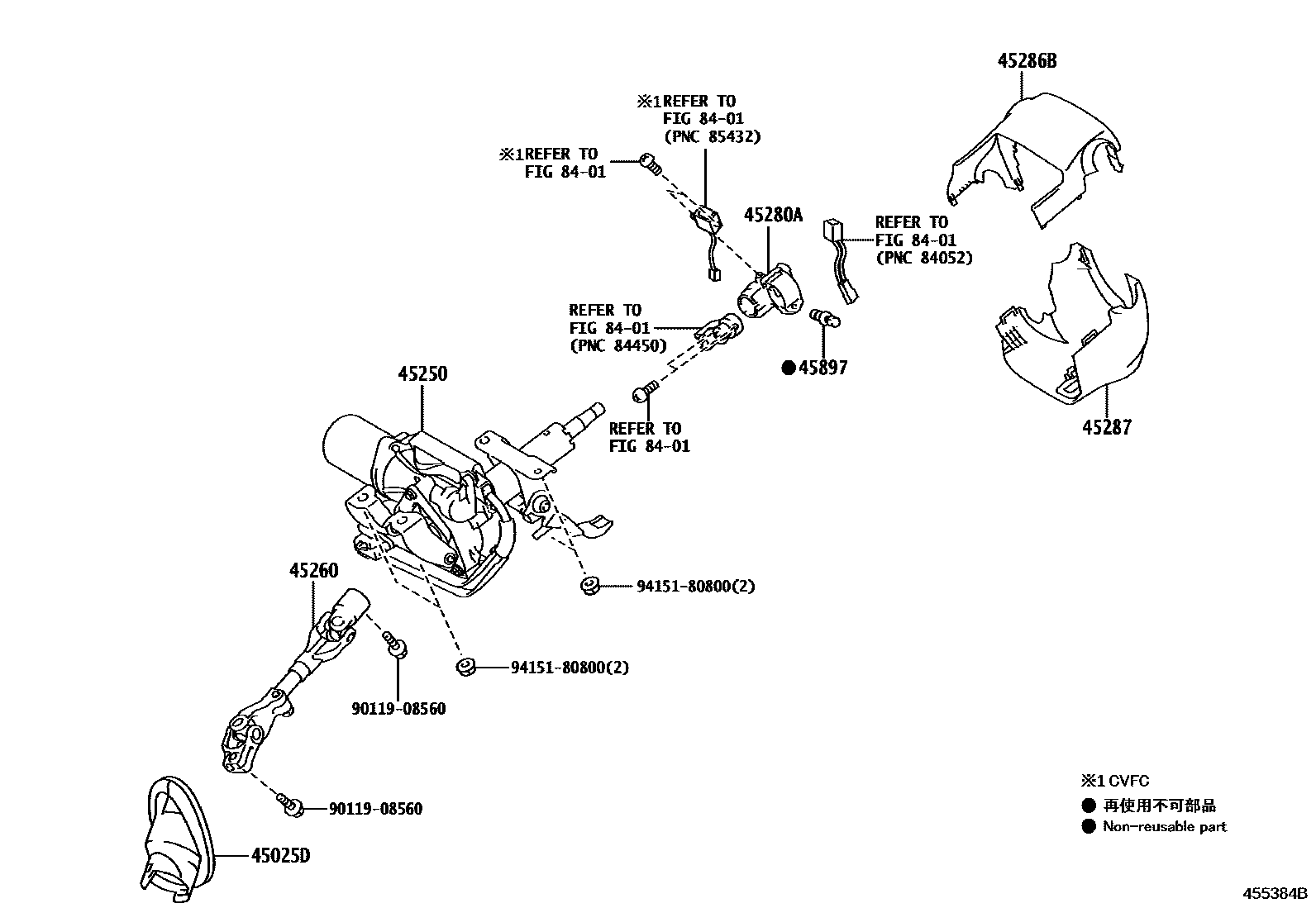

STEERING COLUMN & SHAFT

0001 1 0004 1��������� ��������

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-74010iKGJ10,NGJ10200811

45250COLUMN ASSY, STEERING

main45250-74060iNGJ10200908-201009

main45250-74101supersedes 45250-74111iKGJ10,NGJ10..CVFC..(100G,130G); NGJ10..6F;KGJ10..100X201108-201305

main45250-74102supersedes 45250-74112iKGJ10,NGJ10..CVFC..(100G,130G); NGJ10..6F;KGJ10..100X201305

main45250-74140iNGJ10..6F201011-201108

main45250-74010iKGJ10..100G201005-201009

main45250-74020supersedes 45250-74100iKGJ10..100G; KGJ10..100X200811-201009

main45250-74050supersedes 45250-74150iNGJ10..CVFC200911-201002

main45250-74100supersedes 45250-74110iKGJ10..100G; KGJ10..100X201010-201107

main45250-74110supersedes 45250-74100iKGJ10..100G; KGJ10..100X201010-201107

main45250-74111iKGJ10..100X201108-201205

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-74010iKGJ10,NGJ10200811

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-74030iKGJ10..100X200811

main45280-74040iNGJ10..6F201011

main45280-74060iNGJ10..CVFC200911-201002

45286BCOVER, STEERING COLUMN, UPR

main45286-74010-C0iKGJ10..100G; KGJ10..100X200811-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,8#

45287COVER, STEERING COLUMN, LWR

main45287-74010-C0iKGJ10..100G; KGJ10..100X200811-201603

BLACK,TRIM1#,4#,5#,7#; BLACK,TRIM1#,4#,5#,8#

45897BOLT, STEERING LOCK SET

main45897-12020iKGJ10,NGJ10200811

main45897-12050iNGJ10..CVFC200911-201002

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
