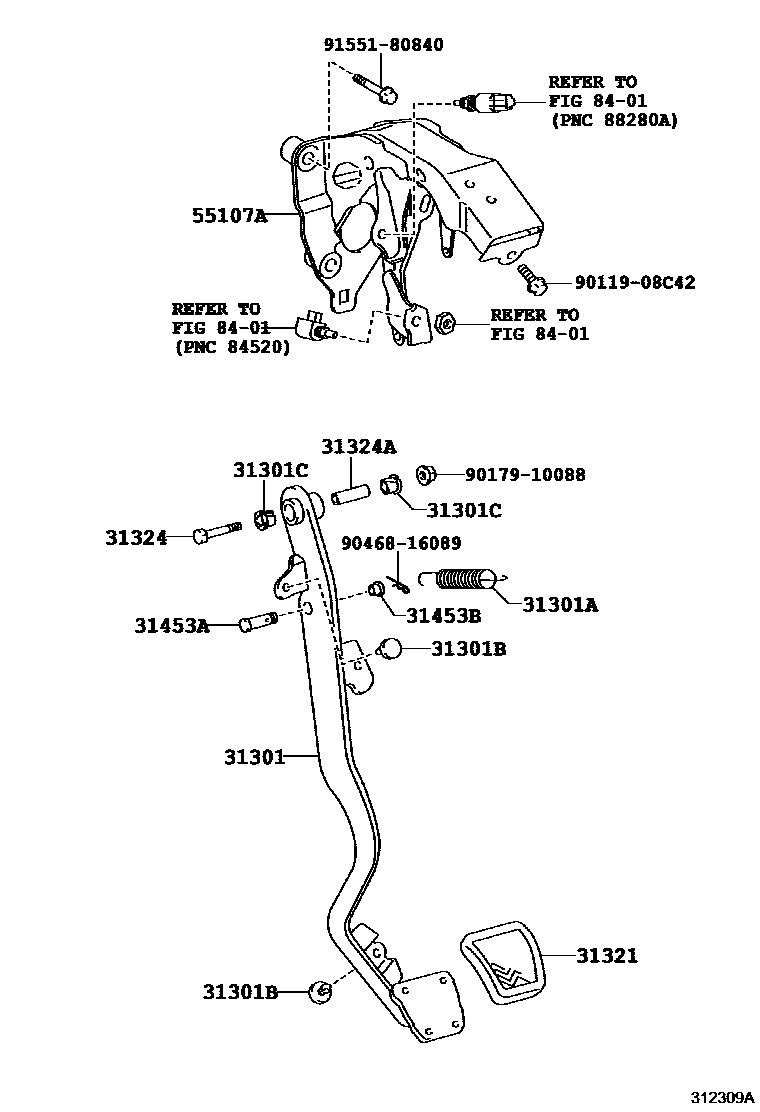

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-74030iNGJ10..6F201011-201302

main31301-74031iNGJ10..6F201303

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14051iNGJ10..6F201011

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iNGJ10..6F201011

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iNGJ10..6F201011

31321PAD, CLUTCH PEDAL

main31321-52010iNGJ10..6F201011-201503

main31321-52020iNGJ10..6F201504

31324SHAFT, CLUTCH PEDAL

main90101-10039iNGJ10..6F201011

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNGJ10..6F201011

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iNGJ10..6F201011

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNGJ10..6F201011

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-74030iNGJ10..6F201011

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9017910088

main90179-10088

9046816089

main90468-16089

9155180840

main91551-80840

15 parts on this diagram · 2 diagrams in section
