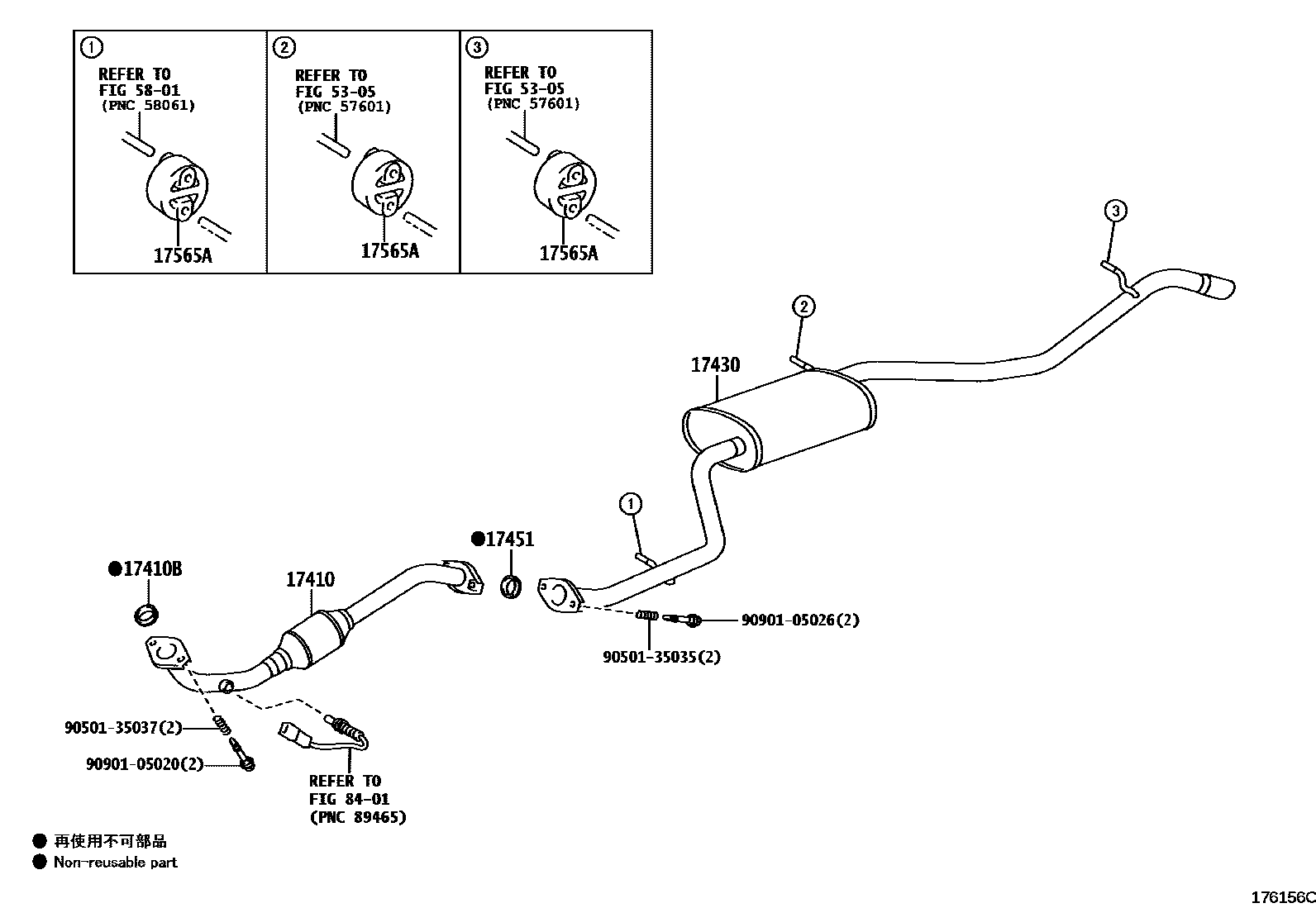

EXHAUST PIPE

0001 1 0002 1 0003 1GAZOO RACING

17410PIPE ASSY, EXHAUST, FRONT

main17410-40120i1KRFE..KGJ10200811-201305

main17410-40121i1KRFE..KGJ10201305

main17410-47070i1NRFE..NGJ10200908-201005

main17410-47190i1NRFE..NGJ10..6F201011

main17410-47210i1NRFE..NGJ10201005-201011

main17410-47220i1NRFE..NGJ10..CVFC201011

main17410-47080i1NRFE..NGJ10..CVFC200911-201002

17410BGASKET, EXHAUST PIPE

main17451-21080i1NRFE..NGJ10200908

main17451-40010i1KRFE..KGJ10200811

17430PIPE ASSY, EXHAUST, TAIL

main17430-40070i1KRFE..KGJ10200811-201004

main17430-40071i1KRFE..KGJ10201005-201603

main17430-47070i1NRFE..NGJ10200908-201005

main17430-47130i1NRFE..NGJ10201005-201603

main17430-47160i1NRFE..NGJ10..6F201208-201209

17451GASKET, EXHAUST PIPE

main17451-23041i1NRFE..NGJ10200908-201009

main17451-23042i1NRFE..NGJ10201010

main17451-40031i1KRFE..KGJ10200811-201010

main17451-40032i1KRFE..KGJ10201011

17565SUPPORT, EXHAUST PIPE, NO.5

main17577-47020×2i1NRFE..NGJ10..6F201208-201209

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010×3i1KRFE,1NRFE..KGJ10,NGJ10200811-201011

main17565-47010×3supersedes 17565-40010i1KRFE,1NRFE..KGJ10,NGJ10201012

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

13 parts on this diagram · 3 diagrams in section
