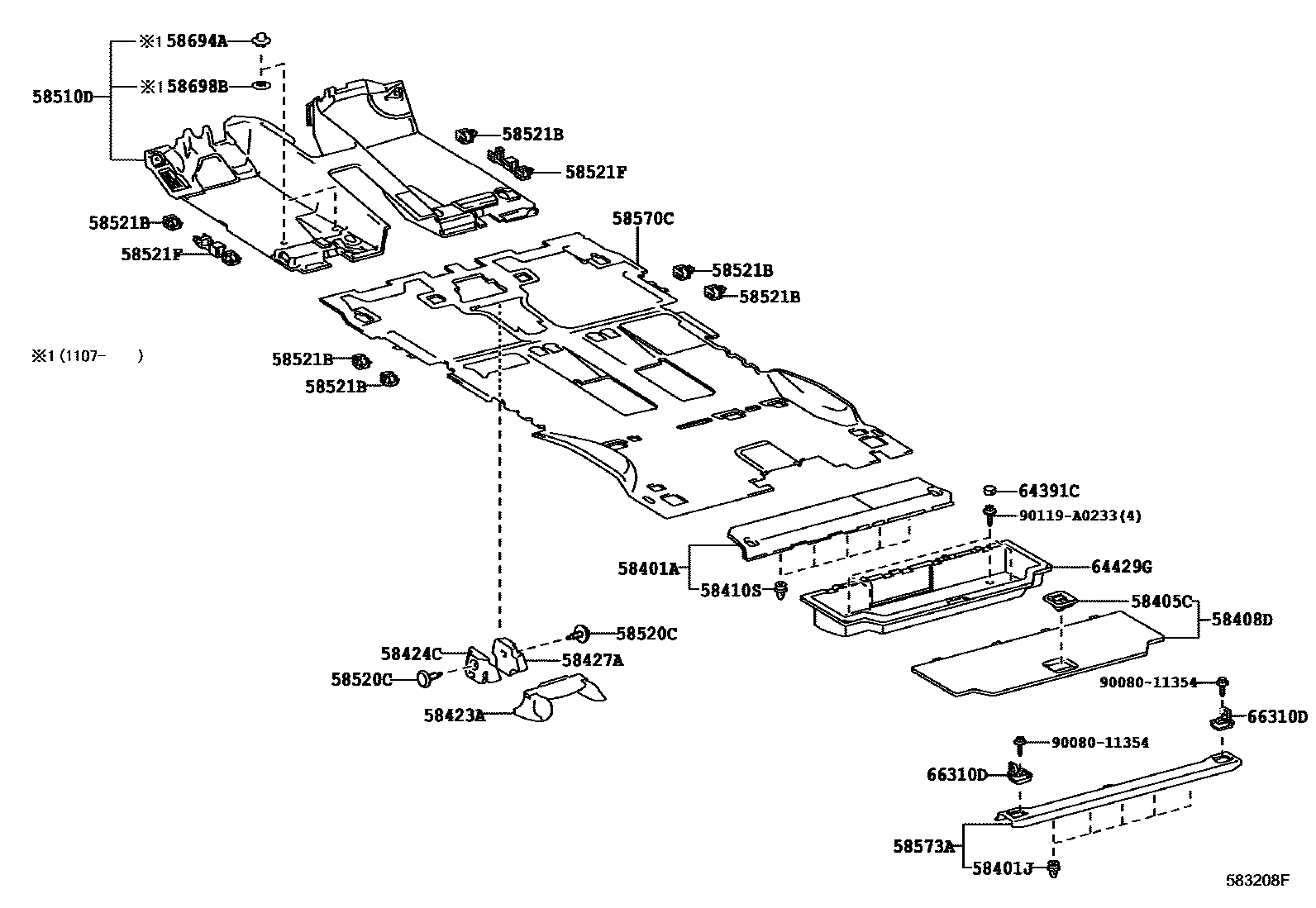

FLOOR MAT & SILENCER PAD
58401ABOARD SUB-ASSY, DECK, NO.1
GRAY,TRIM13
GRAY,TRIM1#
BLACK,TRIM13,44
BLACK,TRIM13,2#,44
SAND BEIGE,TRIM44
SAND BEIGE,TRIM4#
58405CLOCK SUB-ASSY, DECK BOARD
GRAY,TRIM13
BLACK,TRIM13,2#,44
BLACK,TRIM13,44
SAND BEIGE,TRIM44
58408DBOARD SUB-ASSY, DECK, NO.2
GRAY,TRIM13
GRAY,TRIM1#
BLACK,TRIM13,44
BLACK,TRIM13,2#,44
SAND BEIGE,TRIM44
SAND BEIGE,TRIM4#
58410SCLIP, DECK BOARD
58423ASPACER, REAR FLOOR BOARD, NO.2
58424CSPACER, REAR FLOOR BOARD, NO.3
58427ASPACER, REAR FLOOR BOARD
58510DCARPET ASSY, FLOOR, FRONT
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
GRAY,TRIM13
BLACK,TRIM13,2#,44
BLACK,TRIM13,44
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#
SAND BEIGE,TRIM44
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK
58521BHOOK, FLOOR CARPET
58521FHOOK, FLOOR CARPET
58570CCARPET ASSY, REAR FLOOR
GRAY,TRIM1#
BLACK,TRIM1#,4#
NUMBER OF PASSENGER-8,BLACK,TRIM1#,4#
SAND BEIGE,TRIM4#
GRAY,TRIM1#
GRAY,TRIM13
BLACK,TRIM13,44
BLACK,TRIM1#,4#
SAND BEIGE,TRIM44
SAND BEIGE,TRIM4#
GRAY,TRIM13
BLACK,TRIM1#,2#,4#
BLACK,TRIM13,2#,44
SAND BEIGE,TRIM44
58573APLATE, REAR FLOOR MAT SUPPORT
BLACK,TRIM1#,44
BLACK,TRIM1#,2#,44
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#
DK. BROWN,TRIM44
DK. BROWN,TRIM4#
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
64391CCAP
64429GBOX, LUGGAGE COMPARTMENT TRIM
66310DHOOK ASSY, ROPE
BLACK,TRIM1#,2#,44
BLACK,TRIM1#,44
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM44
DK. BROWN,TRIM4#
9008011354
main90080-11354
90119A0233
main90119-A0233
21 parts on this diagram · 1 diagram in section
