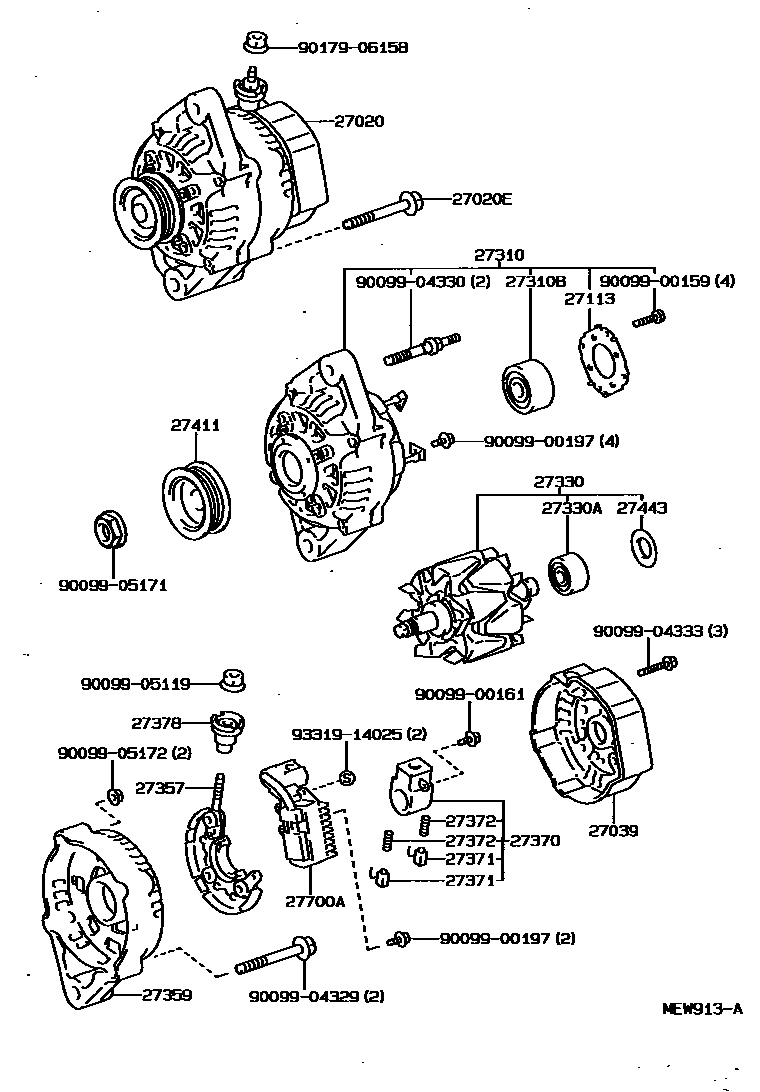

ALTERNATOR
27020ALTERNATOR ASSY
12V 55A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27113PLATE, BEARING RETAINER, ALTERNATOR
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27378INSULATOR, ALTERNATOR, NO.1
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
9009900159
main90099-00159
9009900161
main90099-00161
9009900197
main90099-00197
9009904329
main90099-04329
9009904330
main90099-04330
9009904333
main90099-04333
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9017906158
main90179-06158
9331914025
main93319-14025
28 parts on this diagram · 1 diagram in section
