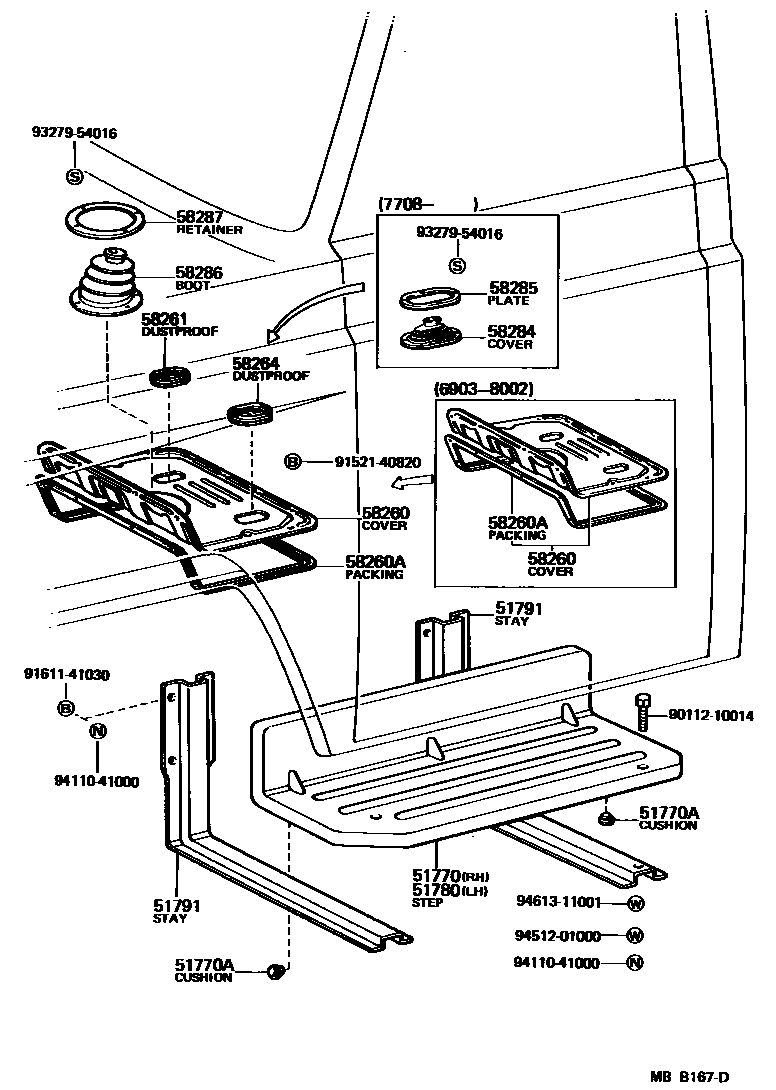

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51770STEP ASSY, FRONT, RH

main51707-55020iDA11#,FA100,11#,FC100196903-197704

main51707-55021iDA11#,FA100,115197704-198002

main51707-55022iDA11#,FA100,115198002-200112

51770ACUSHION(FOR STEP)

main90541-06008×2iDA11#,FA100,11#,FC100196903-200112

51780STEP ASSY, FRONT, LH

main51708-55020iDA11#,FA100,11#,FC100196903-197704

main51708-55021iDA11#,FA100,115197704-198002

main51708-55022iDA11#,FA100,115198002-200112

51791STAY, STEP

main51791-55021×4iDA11#,FA100,11#,FC100196903-200112

58260COVER ASSY, TRANSMISSION, FRONT

main58207-95216iDA11#,FA100,115..RHD198002-200112

main58207-95217iDA11#,FA100,115..LHD198002-200112

W/O HEATER

main58207-95218iDA11#,FA100,115..LHD198002-200112

W/HEATER

main58260-95214iDA11#,FA100,11#,FC100..RHD..BTR196903-197704

main58260-95215iDA11#,FA100,115..LHD197704-198002

main58260-95216iDA110,FA100,110..RHD..DMP196903-197704

main58260-95217iDA110,FA100,110..LHD..DMP196903-197704

58260APACKING, FRONT TRANSMISSION SERVICE HOLE COVER

main58262-95210iDA11#,FA100,11#,FC100196903-198002

main58262-95211iDA11#,FA100,115198002-198005

main58262-95212iDA11#,FA100,115198005-200112

58261DUSTPROOF, TRANSMISSION COVER HOLE

main58717-55010iDA11#,FA100,11#,FC100196903-197704

58264DUSTPROOF, CONTROL LEVER HOLE

main58718-55010iDA110,FA100,110..DMP196903-197704

58284COVER, PARKING BRAKE LEVER DUST

main46243-95210iDA11#,FA100,115197708-200112

58285PLATE, PARKING BRAKE DUST SET

main46245-95210iDA11#,FA100,115197708-200112

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-95210iDA11#,FA100,115198002-200112

58287RETAINER, SHIFT LEVER BOOT

main58287-95211iDA11#,FA100,115198002-200112

9011210014

main90112-10014

9152140820

main91521-40820

9161141030

main91611-41030

9327954016

main93279-54016

9411041000

main94110-41000

9451201000

main94512-01000

9461311001

main94613-11001

19 parts on this diagram · 1 diagram in section
