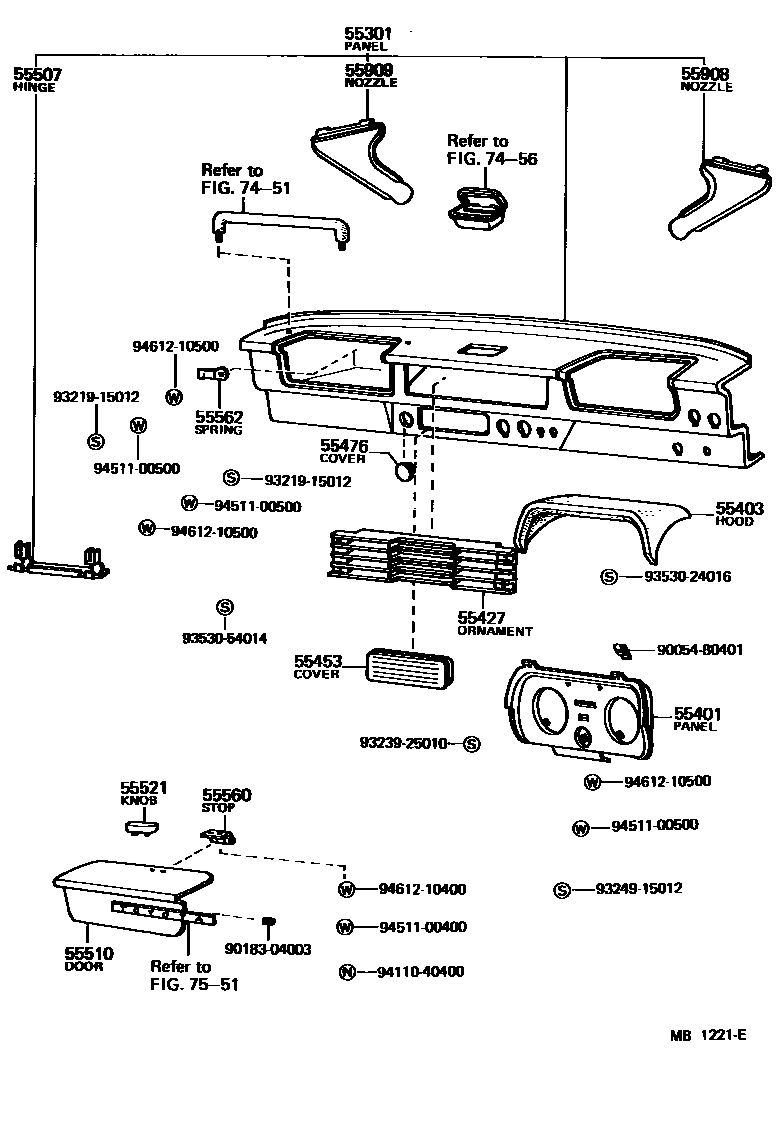

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55031-95210iDA11#..RHD197404-197704

W/O HAZARD SWITCH

main55031-95211iFA100,115..RHD197404-197704

W/O HAZARD SWITCH

main55031-95220iDA11#..LHD197404-197704

main55031-95221iFA100,115..LHD197404-197704

W/O HAZARD SWITCH

main55031-95224iDA11#..RHD197409-197704

main55031-95225iFA100,115..RHD197409-197704

W/HAZARD SWITCH

main55031-95228iDA11#..LHD197409-197704

W/HAZARD SWITCH

main55031-95229iFA100,115..LHD197409-197704

W/HAZARD SWITCH

main55031-95237iDA11#..RHD197704-198002

main55031-95242iFA100,115..RHD197704-198002

main55031-95245iDA11#..LHD197704-198002

main55031-95246iFA100,115..LHD197704-198002

main55301-95234iDA11#..RHD196903-197403

main55301-95235iDA11#..LHD196903-197403

main55301-95236iFA100,11#,FC100..RHD196903-197403

main55301-95237iFA100,11#,FC100..LHD196903-197403

main55302-95210iDA11#..RHD..GEN198002-200112

main55302-95212iDA115..ARL198809-199105

main55302-95214iDA11#..LHD198002-200112

main55302-95219iFA100,115..RHD198002-198207

main55302-95222iFA100,115..LHD198002-198207

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55401-95221iDA11#196903-197704

main55401-95222iFA100,11#,FC100196903-197704

main55401-95225iDA11#197704-198002

main55401-95226iFA100,115197704-198002

main55401-95227iDA11#..BTR197704-198002

W/TACHOMETER

main55401-95228iDA110..DMP197704-198002

W/TACHOMETER

main55401-95231iFA100,115..BTR198002-198207

main55401-95232iDA11#..BTR198002-200112

main55401-95233iFA100..DMP198002-198207

main55401-95234iDA110..DMP198002-200112

55403HOOD SUB-ASSY, METER

main55403-95211iDA11#,FA100,11#,FC100196903-200112

55427ORNAMENT, INSTRUMENT PANEL, CENTER

main55431-95210iDA11#,FA100,11#,FC100196903-197403

main55431-95213iDA11#,FA100,115197404-200112

55453COVER, RADIO TUNER OPENING

main55471-95210iDA11#,FA100,11#,FC100196903-200112

55476COVER, CIGARETTE LIGHTER HOLE

main55481-95210iDA11#,FA100,11#,FC100196903-200112

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55507-95212iDA11#,FA100,11#,FC100196903-200112

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95214iDA11#,FA100,11#,FC100196903-197403

ISO

main55501-95215iDA11#,FA100,115197404-200112

55521KNOB, GLOVE COMPARTMENT DOOR

main55502-95213iDA11#,FA100,11#,FC100196903-197403

ISO

55560STOP SUB-ASSY, GLOVE COMPARTMENT DOOR

main55506-95210iDA11#,FA100,11#,FC100196903-200112

55562SPRING, GLOVE COMPARTMENT DOOR STOP

main55545-95212iDA11#,FA100,11#,FC100196903-200112

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-95212iDA11#,FA100,11#,FC100..RHD196903-200112

main55950-95213iDA11#,FA100,11#,FC100..LHD196903-200112

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-95212iDA11#,FA100,11#,FC100..RHD196903-200112

main55960-95213iDA11#,FA100,11#,FC100..LHD196903-200112

7451ARMREST & VISOR

→ Go to FIG 74-51

7456ASH RECEPTACLE

→ Go to FIG 74-56

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9005480401

main90054-80401

9018304003

main90183-04003

9321915012

main93219-15012

9323925010

main93239-25010

9324915012

main93249-15012

9353024016

main93530-24016

9353054014

main93530-54014

9411040400

main94110-40400

9451100400

main94511-00400

9451100500

main94511-00500

9461210400

main94612-10400

9461210500

main94612-10500

28 parts on this diagram · 2 diagrams in section
