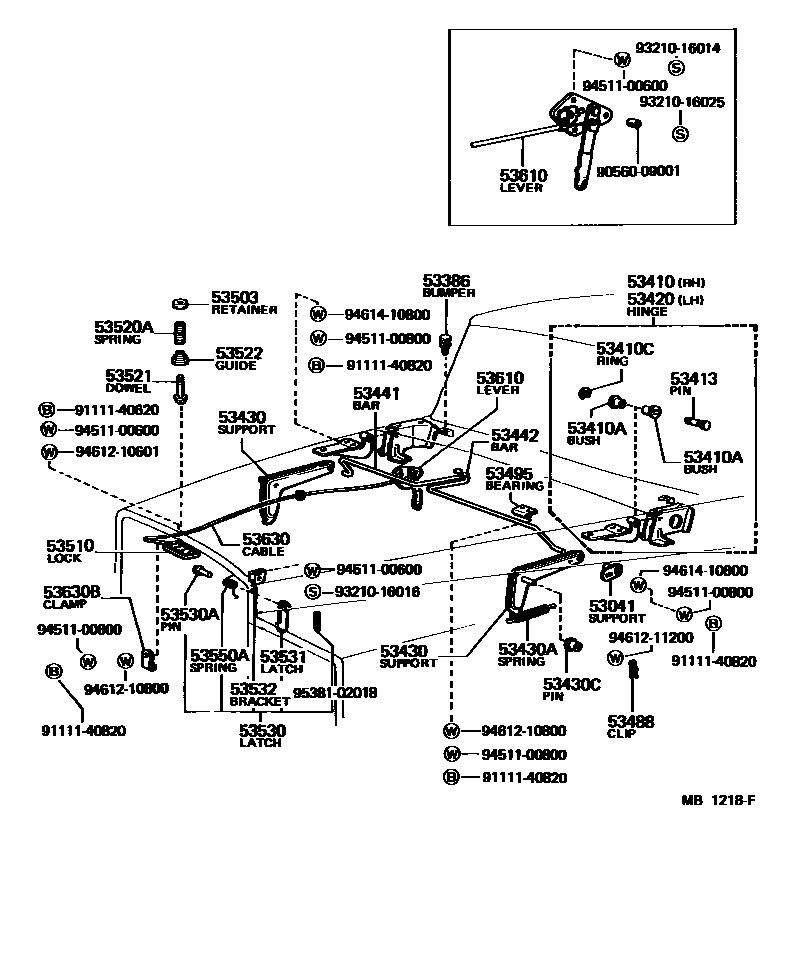

HOOD LOCK & HINGE
53041SUPPORT SUB-ASSY, HOOD HINGE TORSION BAR
53386BUMPER, HOOD, REAR
53410HINGE ASSY, HOOD, RH
53410ABUSH, HOOD HINGE
53410CRING, HOOD HINGE RETAINING
53413PIN, HOOD HINGE
53420HINGE ASSY, HOOD, LH
53430SUPPORT ASSY, HOOD
RH
LH
53430ASPRING, TENSION(FOR HOOD SUPPORT)
53430CPIN, W/HOLE(FOR HOOD SUPPORT)
53441BAR, HOOD HINGE TORSION, RH
53442BAR, HOOD HINGE TORSION, LH
53488CLIP, HOOD SUPPORT PIN
53495BEARING, HOOD HINGE
53503RETAINER SUB-ASSY, HOOD LOCK DOWEL
53510LOCK ASSY, HOOD
53520ASPRING, COMPRESSION(FOR HOOD LOCK HOOK)
53521DOWEL, HOOD LOCK
53522GUIDE, HOOD LOCK SPRING, UPPER
53530LATCH ASSY, SAFETY
53530APIN, SAFETY LATCH
53531LATCH, SAFETY
53532BRACKET, SAFETY LATCH
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53610LEVER ASSY, HOOD LOCK RELEASE
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9056009001
main90560-09001
9111140620
main91111-40620
9111140820
main91111-40820
9321016014
main93210-16014
9321016016
main93210-16016
9321016025
main93210-16025
9451100600
main94511-00600
9451100800
main94511-00800
9461210601
main94612-10601
9461210800
main94612-10800
9461211200
main94612-11200
9461410800
main94614-10800
9538102018
main95381-02018
40 parts on this diagram · 1 diagram in section
