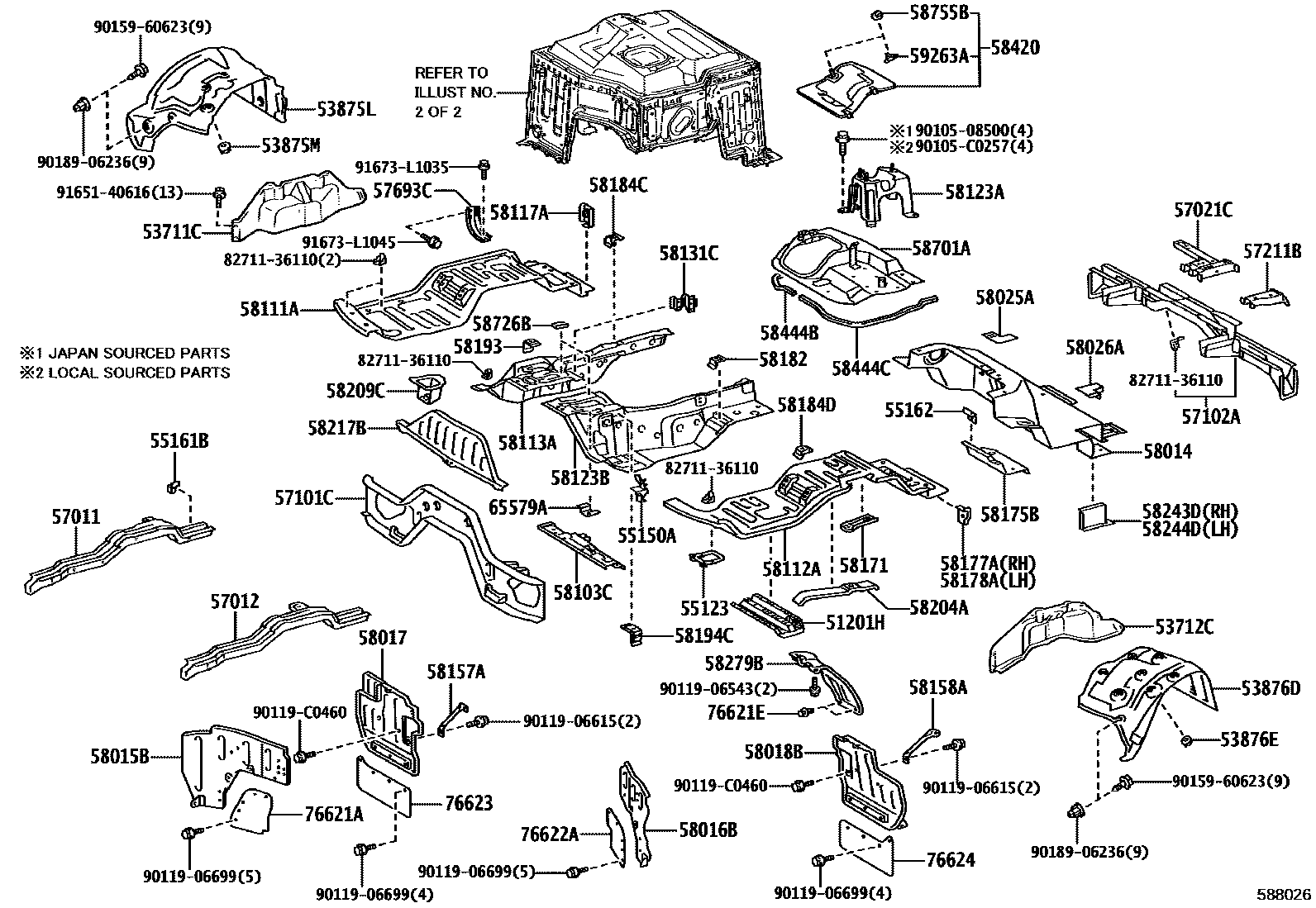

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51201HCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0S010iKMB53202108

53711CAPRON, FRONT FENDER, RH

main53711-0S011iKMB53202108

53712CAPRON, FRONT FENDER, LH

main53712-0S020iKMB53202108

53875LLINER, FRONT FENDER, RH

main53875-36010iKMB53202108

53875MCLIP, FRONT FENDER LINER

main90467-06206-C0×11iKMB53202108

BLACK

53876DLINER, FRONT FENDER, LH

main53876-36010iKMB53202108

53876ECLIP, FRONT FENDER LINER

main90467-06206-C0×11iKMB53202108

BLACK

55123REINFORCEMENT, STEERING SUPPORT

main55123-36020iKMB53202108

55150ABRACKET ASSY, PEDAL

main55150-0S010iKMB53202108

55161BBRACKET, HEATER MOUNTING, RH

main55161-36020iKMB53202108

55162BRACKET, HEATER MOUNTING, LH

main55162-36020iKMB53202108

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-0S030iKMB53202108

57012MENBER SUB-ASSY

main57012-0S040iKMB53202108

57021CSTRENGTH SUB-ASSY, ANCHOR SIDE, NO.1

main57021-36190iKMB53202108

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-0S060iKMB53202108

57102ACROSSMENBER SUB-ASSY, FLOOR, NO.2

main57102-0S060iKMB53202108

57211BSTRENGTH, ANCHOR, NO.1

main57211-0S020iKMB53202108

57693CBRACE, REAR FLOOR NO.6 CROSSMEMBER

main57693-0S010iKMB53202108

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-0S010iKMB53202108

58015BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH

main58015-0S030iKMB53202108

58016BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH

main58016-0S020iKMB53202108

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-0S050iKMB53202108

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58018-0S030iKMB53202108

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58271-0S010iKMB53202108

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58272-0S010iKMB53202108

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-0S020iKMB53202108

58111APAN, FRONT FLOOR, RH

main58111-0S050iKMB53202108

58112APANEL, FRONT FLOOR, LH

main58112-0S040iKMB53202108

58113APANEL, FRONT FLOOR, CENTER

main58013-0S010iKMB53202108

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-0S010iKMB53202108

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-0S080iKMB53202108

58123BPANEL, FRONT FLOOR, CENTER LH

main58012-0S010iKMB53202108

58131CBRACKET, RESERVE TANK SERVICE HOLE COVER

main58131-0S020iKMB53202108

58157ASTAY, FRONT FLOOR HOUSING, REAR RH

main58157-36040iKMB53202108

58158ASTAY, FRONT FLOOR HOUSING, REAR LH

main58158-0S010iKMB53202108

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-36021iKMB53202108

58175BANGLE SUB-ASSY, FRONT FLOOR, REAR

main58175-0S030iKMB53202108

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-0S020iKMB53202108

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-0S010iKMB53202108

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-36040iKMB53202108

58184CBRACKET, FRONT SEAT MOUNTING, INNER LH

main58184-36040iKMB53202108

58184DBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36020iKMB53202108

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-36011iKMB53202108

58194CBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH

main58193-36011iKMB53202108

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-36040iKMB53202108

58209CCOVER SUB-ASSY, HEATER AIR INTAKE

main58209-36010iKMB53202108

58217BPLATE, FRONT FLOOR

main58217-0S010iKMB53202108

58243DPANEL, FLOOR SIDE, REAR RH

main58243-36040iKMB53202108

58244DPANEL, FLOOR SIDE, REAR LH

main58244-36040iKMB53202108

58279BCOVER, PARKING BRAKE CABLE, LH

main58279-36010iKMB53202108

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58420-0S040iKMB53202108

58444BPACKING, ENGINE SUB COVER

main58444-0S030iKMB53202108

58444CPACKING, ENGINE SUB COVER, NO.1

main58444-0S040iKMB53202108

58701APANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT

main58701-0S040iKMB53202108

58726BPLATE, ENGINE SERVICE COVER, FRONT UPPER

main58726-36010iKMB53202108

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iKMB53202108

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iKMB53202108

65579ABRACKET, HEATER PIPE

main65579-36010iKMB53202108

76621AMUDGUARD, FRONT BODY, FRONT RH

main76621-0S010iKMB53202108

76621ECLIP(FOR FRONT FENDER MUDGUARD)

main90467-07138-C0×2iKMB53202108

BLACK

76622AMUDGUARD, FRONT BODY, FRONT LH

main76622-0S010iKMB53202108

76623MUDGUARD, FRONT BODY, REAR RH

main76623-36030iKMB53202108

76624MUDGUARD, FRONT BODY, REAR LH

main76624-36030iKMB53202108

8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36110

9010508500

main90105-08500

90105C0257

main90105-C0257

9011906543

main90119-06543

9011906615

main90119-06615

9011906699

main90119-06699

90119C0460

main90119-C0460

9015960623

main90159-60623

9018906236

main90189-06236

9165140616

main91651-40616

91673L1035

main91673-L1035

91673L1045

main91673-L1045

75 parts on this diagram · 2 diagrams in section
