METER

0001 1 0003 1 0004 1 0005 1 0006 1

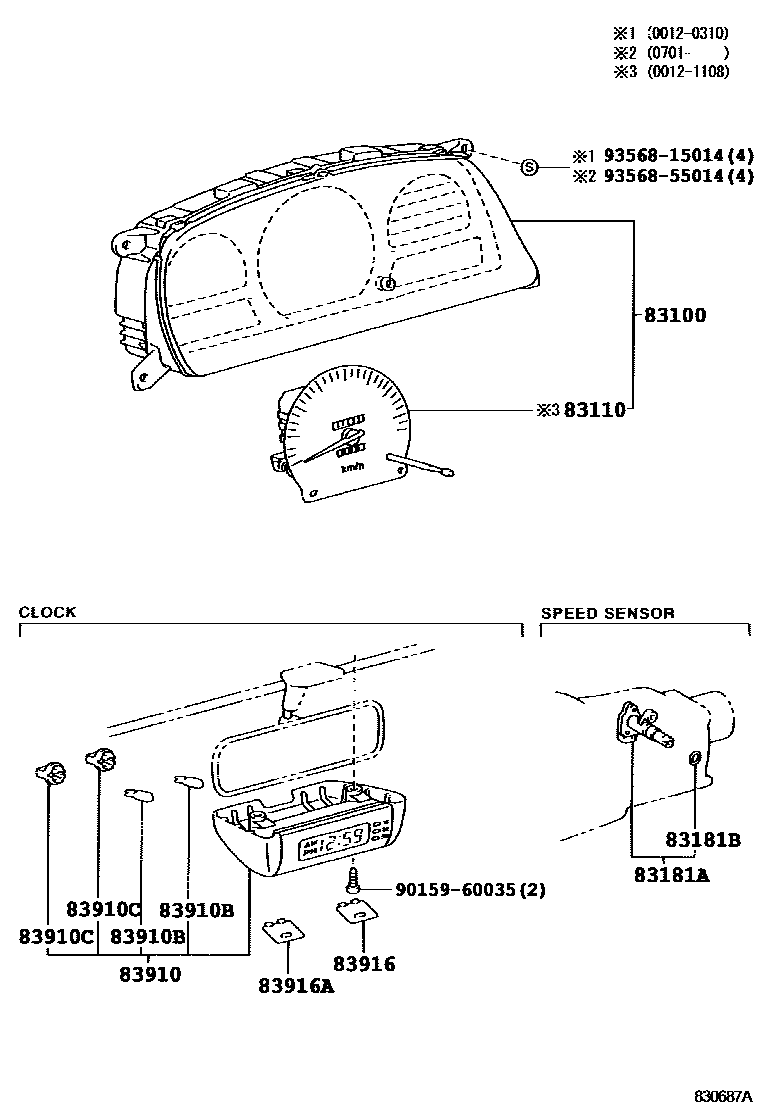

83100METER ASSY, COMBINATION

main83800-0S010iTRB53201108

main83800-0S020iXZB53201108

main83800-36540iRZB5#200012-200310

main83800-36550iBB5#200012-200310

main83800-36660iRZB5#200310-200701

main83800-36720iBB5#200310-200411

main83800-36721iBB5#..EX,STD200411-200701

main83800-36750iBB54..STDH200411-200701

main83800-36770iTRB53200701-201108

main83800-36780iXZB53200701-201108

83110SPEEDOMETER ASSY

main83220-36090iBB54,RZB54..29S,30S200310-200411

main83220-36170iTRB53,XZB53..CBU200701-201108

83181ASENSOR, SPEEDOMETER

main83181-36010iBB5#,RZB5#,TRB53,XZB53200310-201403

83181BRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iBB5#,RZB5#200012-200310

83910CLOCK ASSY

main83910-36040-A0iBB5#200310-200701

IVORY,TRIM4#

main83910-36060-A0iRZB5#,TRB53,XZB53200310-201403

IVORY,TRIM4#

83910BBULB, CLOCK INDICATOR

main84999-50290×2iBB5#200310-200701

24V 3W

main84999-50300×2iRZB5#,TRB53,XZB53200310

14V 3.4W

83910CSOCKET SUB-ASSY, CLOCK BULB

main84999-50110×2iRZB5#200012-200310

main90072-01005×2iBB5#200012-200310

83916CLIP, CLOCK, NO.1

main83916-36010-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

83916ACLIP, CLOCK, NO.2

main83916-36020-A0iBB5#,RZB5#200012-200310

IVORY,TRIM4#

9015960035

main90159-60035

9356815014

main93568-15014

9356855014

main93568-55014

12 parts on this diagram · 5 diagrams in section
